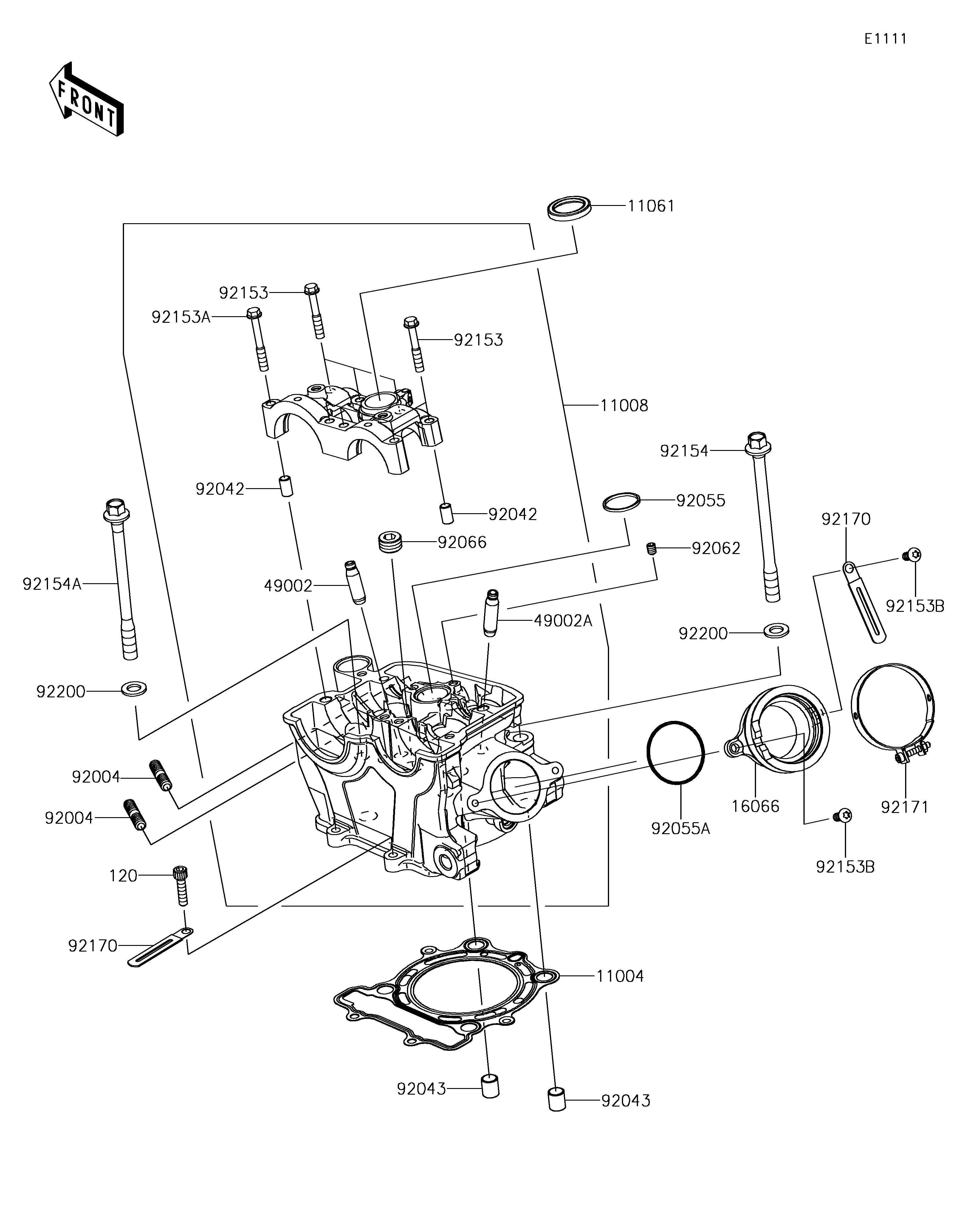

2019 KX™250 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11061
120
16066
49002
49002A
92004
92004
92042
92042
92043
92043
92055
92055A
92062
92066
92153
92153
92153A
92153B
92153B
92154
92154A
92170
92170
92171
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0761 1
HEAD-COMP-CYLINDER 11008 11008-0902 1
GASKET,PLUG HOLE 11061 11061-1197 1
BOLT-SOCKET,6X25 120 120CA0625 2
HOLDER-THROTTLE BODY 16066 16066-0006 1
GUIDE-VALVE 49002 49002-0003 2
GUIDE-VALVE 49002A 49002-0035 2
STUD,8X22 92004 92004-0025 2
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,25X1.9X1.35 92055 92055-0729 1
RING-O,43.7X1.9 92055A 92055-1401 1
NOZZLE,6X8,YELLOW 92062 92062-1080 1
PLUG,10X16.6 92066 92066-3777 1
BOLT,6X38 92153 92153-0338 7
BOLT,6X45 92153A 92153-0339 1
BOLT,TORX,6X14 92153B 92153-0406 2
BOLT,FLANGED,10X130 92154 92154-2104 2
BOLT,FLANGED,10X122 92154A 92154-2321 2
CLAMP 92170 92170-1514 3
CLAMP 92171 92171-1552 1
WASHER,10.2X18.4X1.8 92200 92200-1691 4
