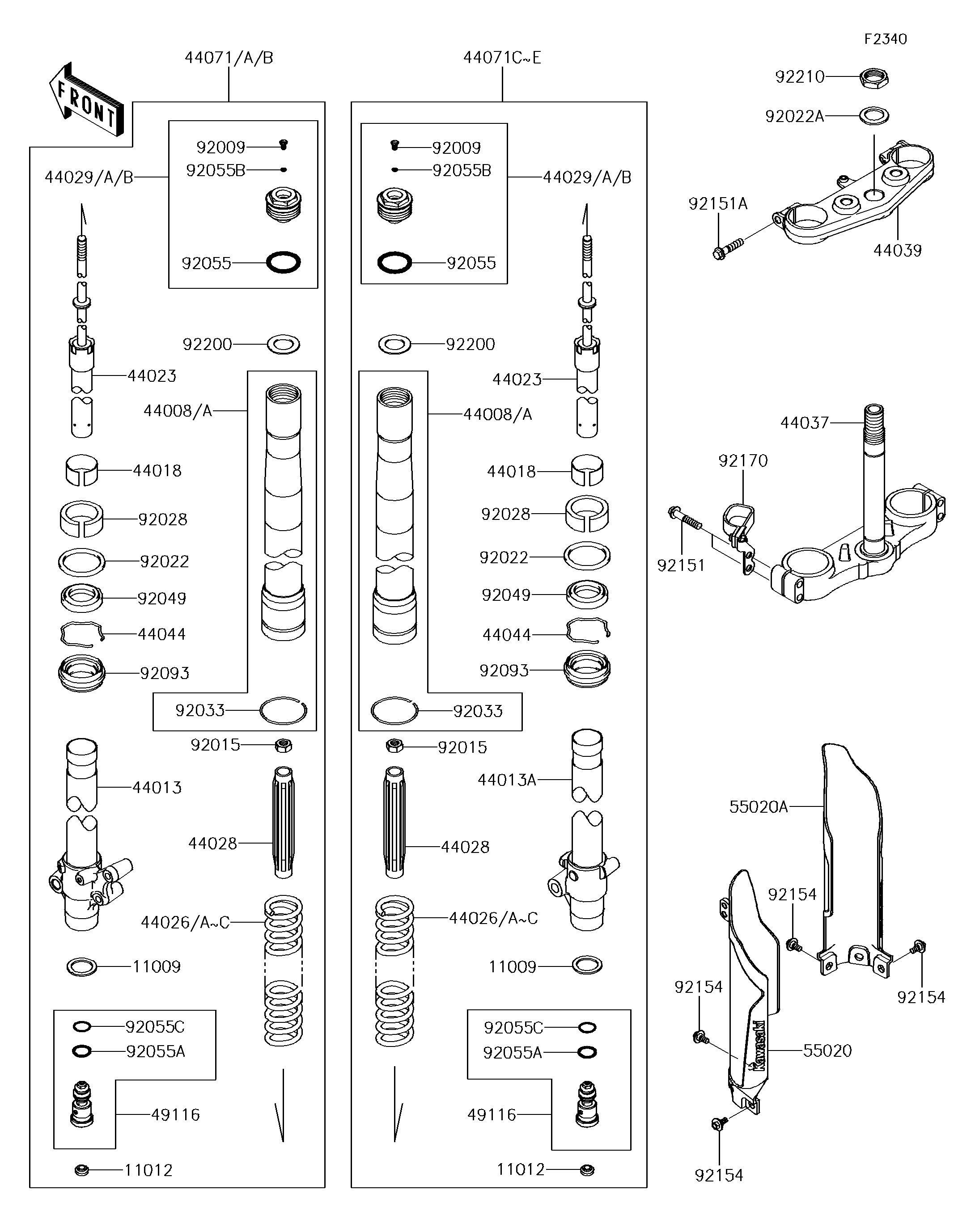

2016 KX™85 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11012
11012
11012
11012
44008A
44008A
44008A
44008A
44013
44013
44013A
44013A
44018
44018
44018
44018
44023
44023
44023
44023
44026
44026
44026
44026
44026A
44026A
44026A
44026A
44026B
44026B
44026B
44026B
44026C
44026C
44026C
44026C
44028
44028
44028
44028
44029A
44029A
44029A
44029A
44037
44037
44039
44039
44044
44044
44044
44044
44071B
44071B
44071E
44071E
49116
49116
49116
49116
55020
55020
55020A
55020A
92009
92009
92009
92009
92015
92015
92015
92015
92022
92022
92022
92022
92022A
92022A
92028
92028
92028
92028
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92093
92093
92093
92093
92151
92151
92151A
92151A
92154
92154
92154
92154
92154
92154
92154
92154
92170
92170
92200
92200
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1592 2
CAP 11012 11012-1692 2
PIPE-FORK OUTER,SILVER 44008A 44008-0068-KX 2
PIPE-FORK INNER,LH 44013 44013-0215 1
PIPE-FORK INNER,RH 44013A 44013-0216 1
PISTON-FORK 44018 44018-1058 2
CYLINDER-SET-FORK 44023 44023-0113 2
SPRING-FRONT FORK,K=2.75N/MM 44026 44026-1633 2 (OPTION)
SPRING-FRONT FORK,K=2.84N/MM 44026A 44026-1634 2
SPRING-FRONT FORK,K=2.94N/MM 44026B 44026-1635 2 (OPTION)
SPRING-FRONT FORK,K=2.65N/MM 44026C 44026-1671 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1090 2
SEAT-FORK SPRING,G.B.GREEN 44029A 44029-0017-50Y 2
HOLDER-FORK UNDER,F.BLACK 44037 44037-0139-21 1
HOLDER-FORK UPPER,F.BLACK 44039 44039-0128-21 1
RING-SNAP 44044 44044-015 2
DAMPER-ASSY,FORK,LH,SILVER 44071B 44071-0878-56D 1
DAMPER-ASSY,FORK,RH,SILVER 44071E 44071-0879-56D 1
VALVE-ASSY,BASE 49116 49116-0038 2
GUARD,FORK,LH,BLACK 55020 55020-0896-6D 1
GUARD,FORK,RH,BLACK 55020A 55020-0897-6D 1
SCREW 92009 92009-1568 2
NUT 92015 92015-1839 2
WASHER,FRONT FORK 92022 92022-1275 2
WASHER,STEERING STEM 92022A 92022-1873 1
BUSHING 92028 92028-1656 2
RING-SNAP 92033 92033-0737 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1394 2
RING-O 92055 92055-1123 2
RING-O 92055A 92055-1156 2
RING-O,2.8X6.6X1.9 92055B 92055-1441 2
RING-O,FORK VALVE 92055C 92055-1502 2
SEAL,FORK OUTER TUBE 92093 92093-1426 2
BOLT,FLANGED,8X40 92151 92151-1877 4
BOLT,FLANGED,8X35 92151A 92151-1878 2
BOLT,FLANGED,6X9 92154 92154-0546 6
CLAMP 92170 92170-1810 1
WASHER 92200 92200-1655 2
NUT,STEERING STEM,22MM 92210 92210-1521 1
