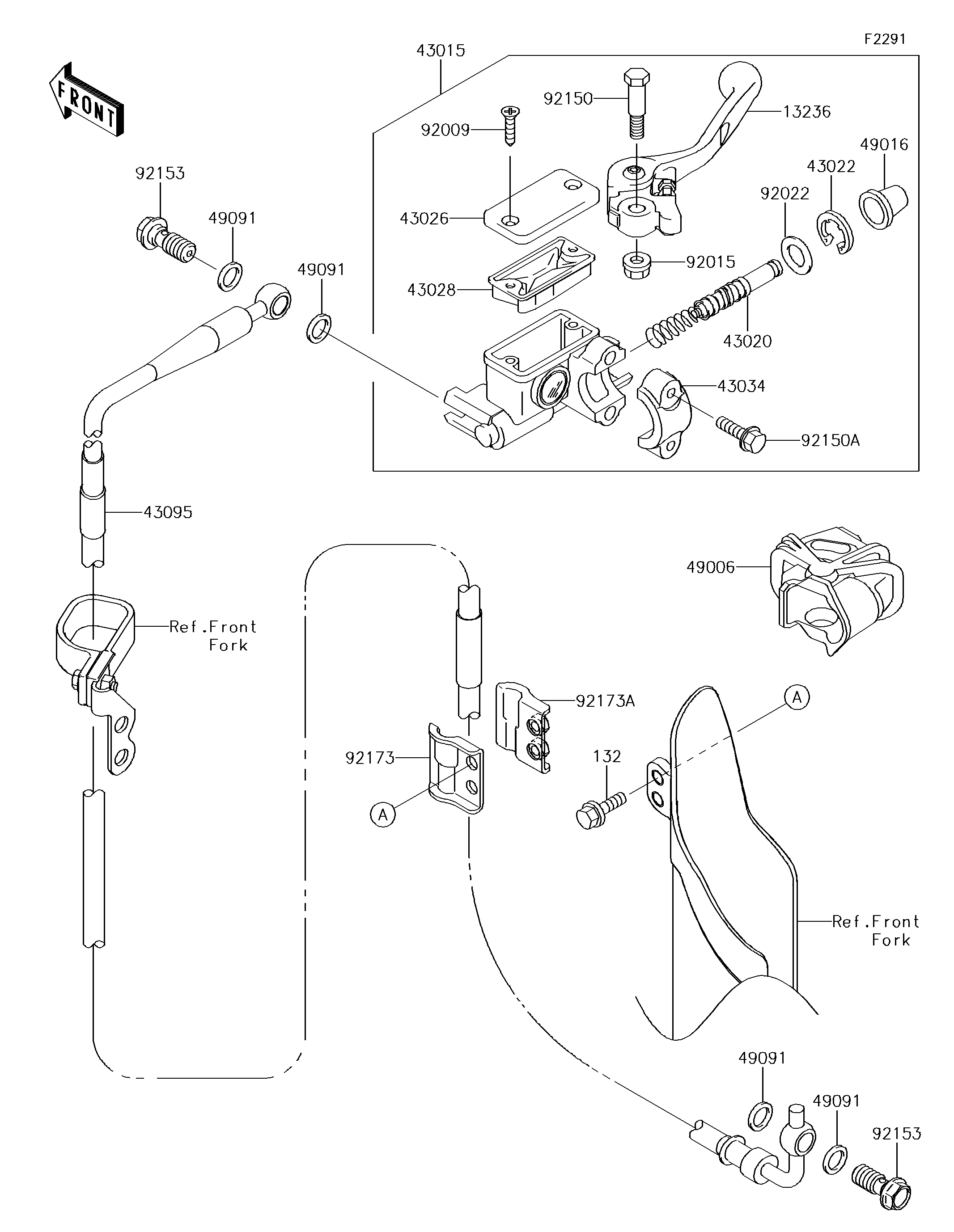

2016 KX™85 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
13236
43015
43020
43022
43026
43028
43034
43095
49006
49016
49091
49091
49091
49091
92009
92015
92022
92150
92150A
92153
92153
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
LEVER-COMP,FRONT BRAKE 13236 13236-0712 1
CYLINDER-ASSY-MASTER 43015 43015-0170 1
PISTON-COMP-BRAKE 43020 43020-0016 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE,MASTER CYLINDER 43026 43026-0020 1
DIAPHRAGM 43028 43028-1067 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE,FR 43095 43095-0769 1
BOOT,FRONT BRAKE LEVER 49006 49006-0078 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SCREW 92009 92009-1795 2
NUT,FLANGED,6MM 92015 92015-1528 1
WASHER 92022 92022-1814 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92150A 92150-1452 2
BOLT,OIL,L=23 92153 92153-1419 2
CLAMP,BRAKE HOSE,LH 92173 92173-1177 1
CLAMP,BRAKE HOSE,RH 92173A 92173-1178 1
