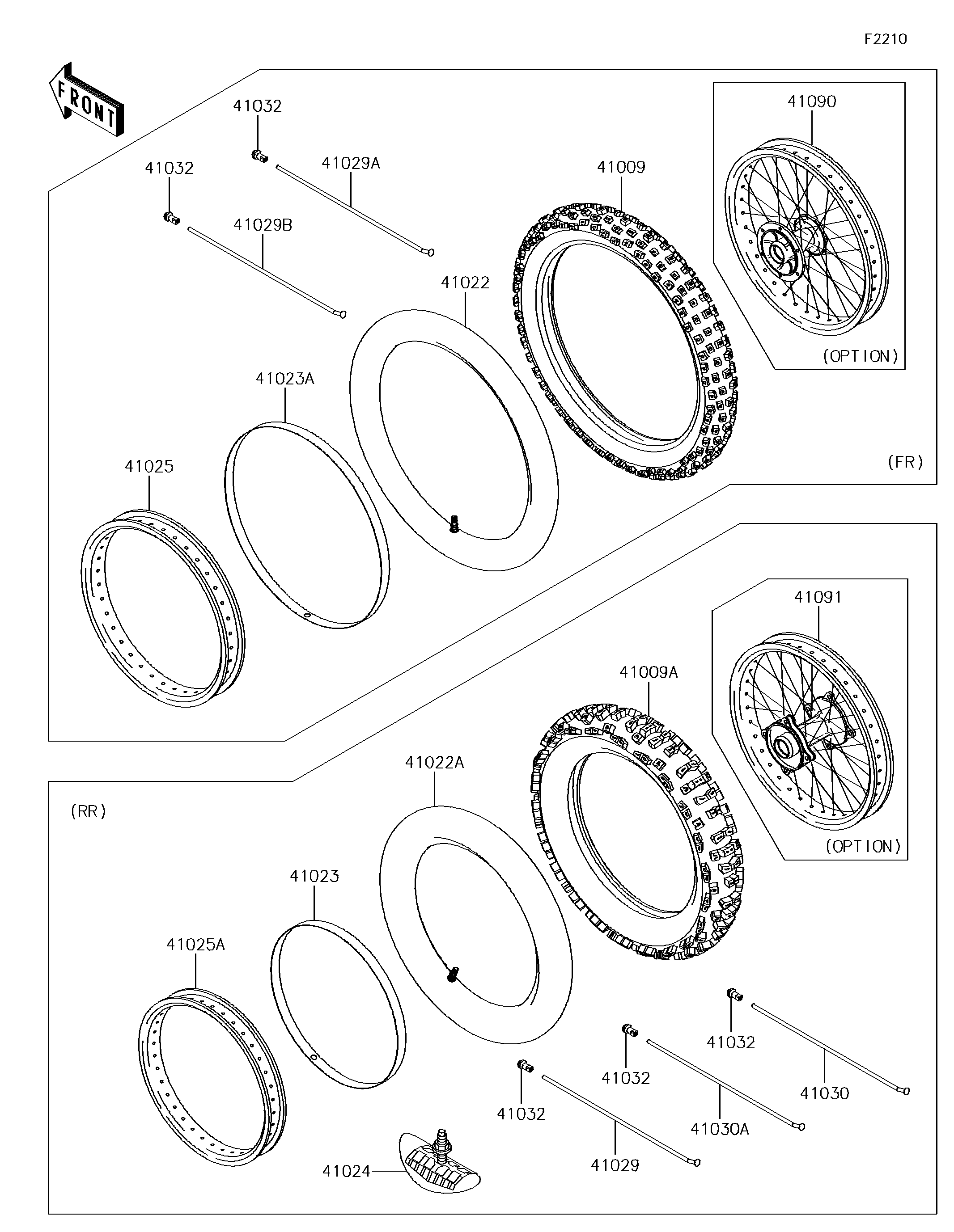

2016 KX™85 - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41024
41025
41025A
41029
41029A
41029B
41030
41030A
41032
41032
41032
41032
41032
41090
41091
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,70/100-17,MX51F(D) 41009 41009-0553 1
TIRE,RR,90/100-14,MX51(D) 41009A 41009-0554 1
TUBE-TIRE,FR,70/100-17(D) 41022 41022-1124 1
TUBE-TIRE,RR,90/100-14(D) 41022A 41022-1125 1
BAND-RIM,RR,80/100-14(D) 41023 41023-1068 1
BAND-RIM,FR,100/90-17(D) 41023A 41023-1082 1
STOPPER-RIM,1.60-M(DUNLOP) 41024 41024-010 1
RIM,FR,1.40X17,BLACK 41025 41025-0335-WC 1
RIM,RR,1.60X14,BLACK 41025A 41025-0336-WC 1
SPOKE-INNER,RR,157MMX170D 41029 41029-1274 14
SPOKE-INNER,FR,RH,187MMX166D 41029A 41029-1290 14
SPOKE-INNER,FR,LH,183MMX166D 41029B 41029-1291 14
SPOKE-OUTER,RR,RH,149MMX172D 41030 41030-1150 7
SPOKE-OUTER,RR,LH,153MMX172D 41030A 41030-1160 7
NIPPLE-SPOKE,8X9X20(+),STEEL 41032 41032-1077 56
WHEEL,FR,1.40X17,BLACK 41090 41090-0101-WC 1 (OPTION)
WHEEL,RR,1.60X14,BLACK 41091 41091-0017-WC 1 (OPTION)
