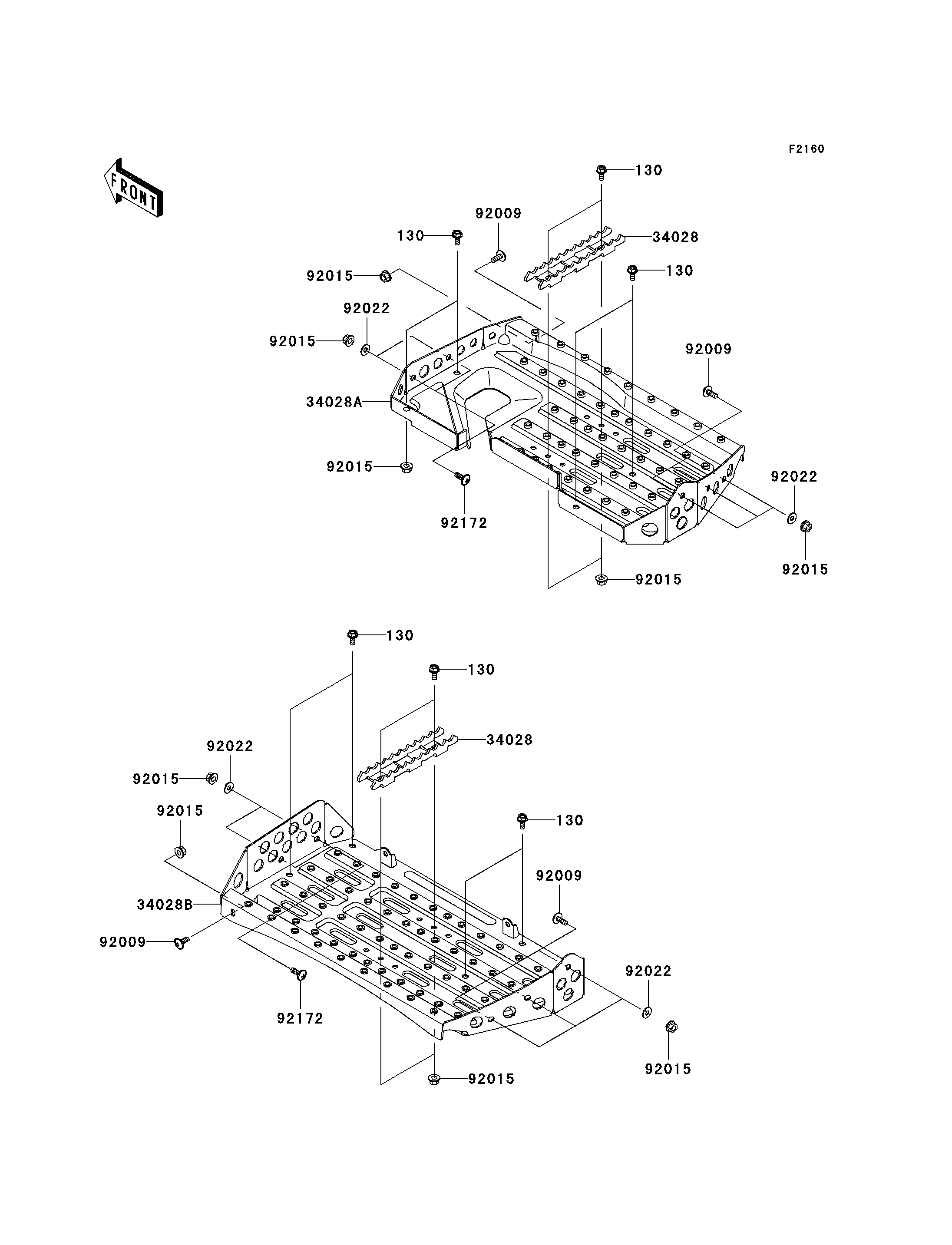

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 12 | ||
| STEP,FOOT PEG,S.GOLD | 34028 | 34028-1487-UF | 2 | ||
| STEP,RH,S.GOLD | 34028A | 34028-1513-UF | 1 | ||
| STEP,LH,S.GOLD | 34028B | 34028-1521-UF | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 8 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 17 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 10 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 4 |
