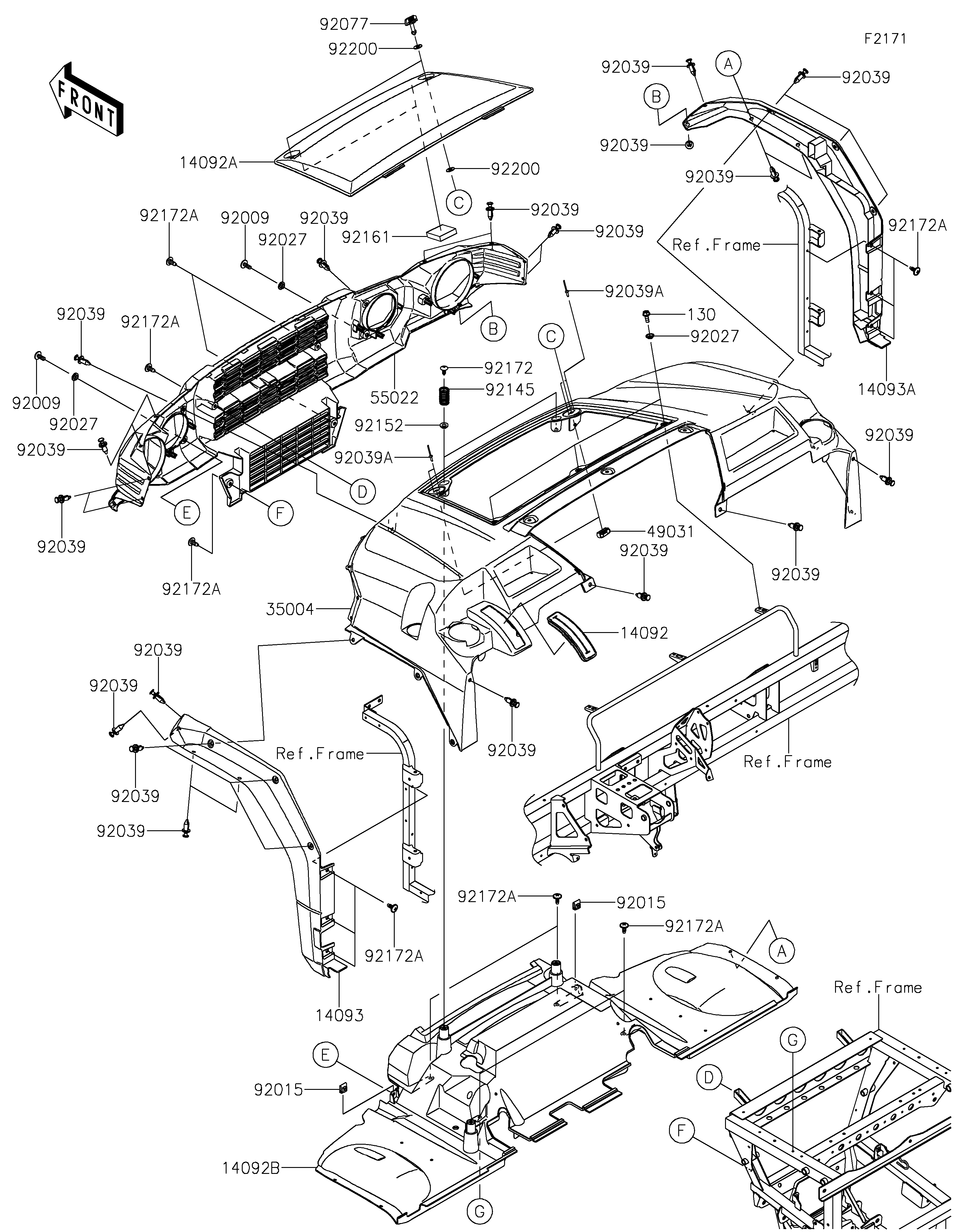

2019 MULE PRO-DXT™ EPS LE - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
14092
14092A
14092B
14093
14093A
35004
49031
55022
92009
92009
92015
92015
92027
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92077
92145
92152
92161
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130CA0616 3
COVER,CENTER CONSOLE,TOP 14092 14092-0791 1
COVER,OPEN,D.R.RED 14092A 14092-1177-16L 1
COVER,TOP,FR INNER 14092B 14092-1194 1
COVER,SIDE,LH 14093 14093-0596 1
COVER,SIDE,RH 14093A 14093-0597 1
FENDER-FRONT,D.R.RED 35004 35004-0335-16L 1
LATCH 49031 49031-0008 2
COVER-HEAD LAMP 55022 55022-0309 1
SCREW,6X16 92009 92009-1621 2
NUT,CLAMP,6MM 92015 92015-1678 2
COLLAR,L=4.6 92027 92027-1168 5
RIVET 92039 92039-0776 28
RIVET,3.2X9.5 92039A 92039-0785 4
KNOB 92077 92077-0030 2
SPRING,17X65 92145 92145-1727 2
COLLAR 92152 92152-0140 2
DAMPER,40X40X10 92161 92161-1861 2
SCREW,6X16 92172 92172-0284 2
SCREW,6X16 92172A 92172-0711 14
WASHER 92200 92200-0503 4
