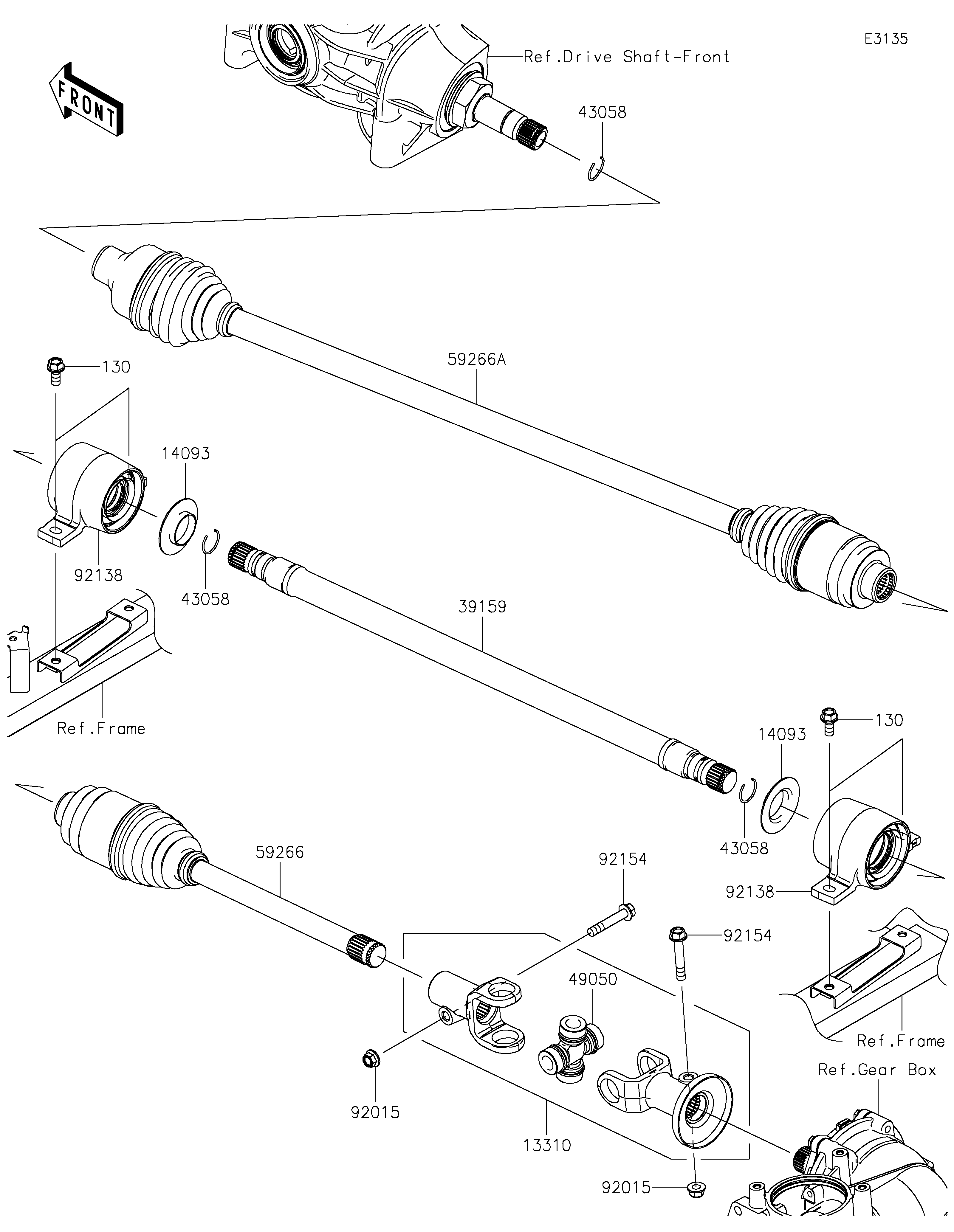

2019 MULE PRO-DXT™ EPS LE - Drive Shaft-Propeller
130
130
13310
14093
14093
39159
43058
43058
43058
49050
59266
59266A
92015
92015
92138
92138
92154
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X18 | 130 | 130BA0818 | 4 | ||
| SHAFT-ASSY | 13310 | 13310-0038 | 1 | ||
| COVER,SIDE RIP | 14093 | 14093-0006 | 2 | ||
| SHAFT-DRIVE | 39159 | 39159-0045 | 1 | ||
| RING | 43058 | 43058-0018 | 3 | ||
| SPIDER | 49050 | 49050-0034 | 1 | ||
| JOINT-BALL,T/M SIDE | 59266 | 59266-0716 | 1 | ||
| JOINT-BALL,FR DIFF SIDE | 59266A | 59266-0717 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 2 | ||
| BEARING-COMP | 92138 | 92138-0002 | 2 | ||
| BOLT,FLANGED,8X46 | 92154 | 92154-1365 | 2 |
