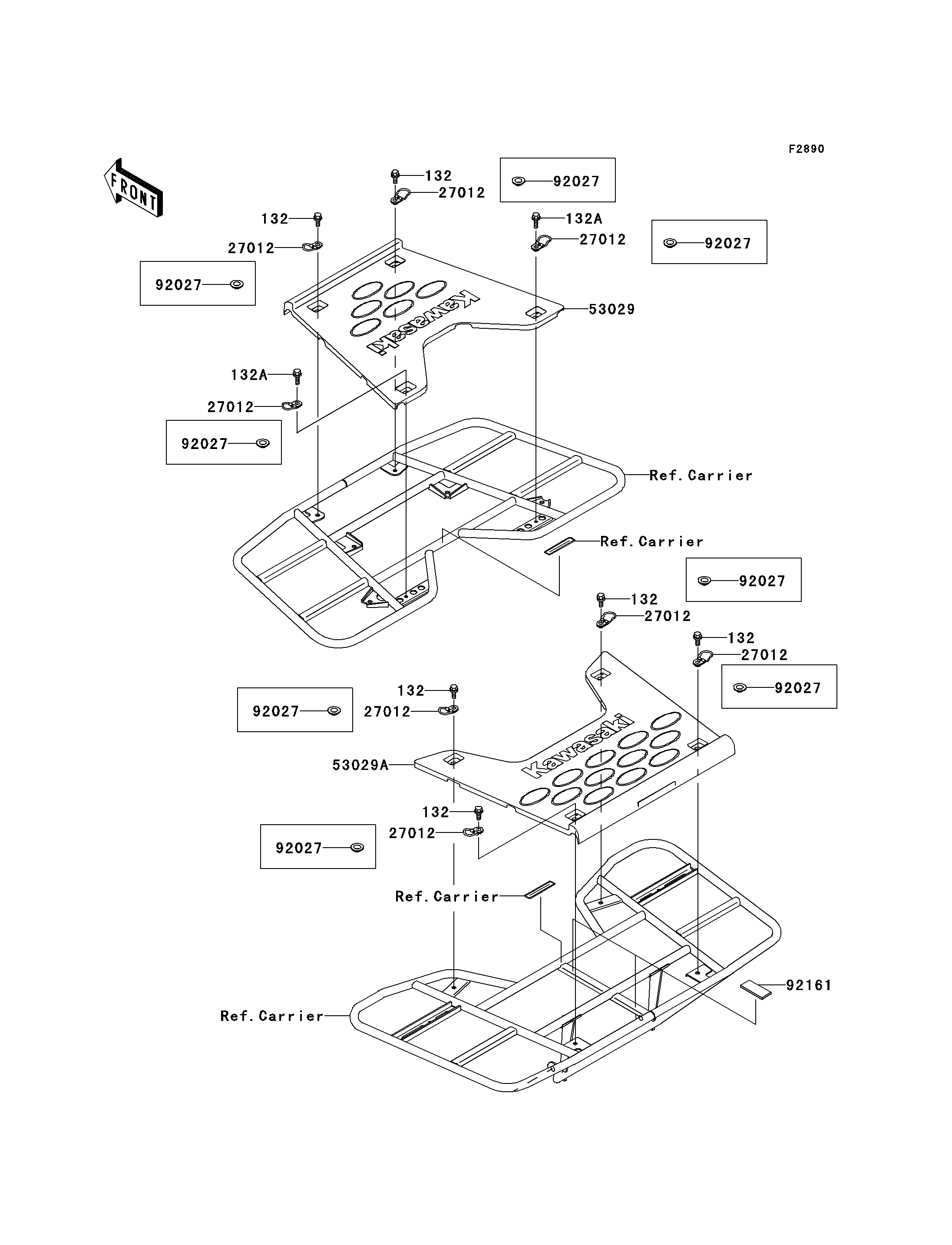

2002 Prairie 650 4X4 - Optional Parts(Carrier)
132
132
132
132
132
132
132A
132A
27012
27012
27012
27012
27012
27012
27012
27012
53029
53029A
92027
92027
92027
92027
92027
92027
92027
92027
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132J0820 | 6 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0825 | 2 | ||
| HOOK | 27012 | 27012-1577 | 8 | ||
| CARRIER,FR | 53029 | 53029-1250 | 1 | ||
| CARRIER,RR | 53029A | 53029-1251 | 1 | ||
| COLLAR | 92027 | 92027-1908 | 8 | ||
| DAMPER,BATTERY | 92161 | 92161-1127 | 2 |
