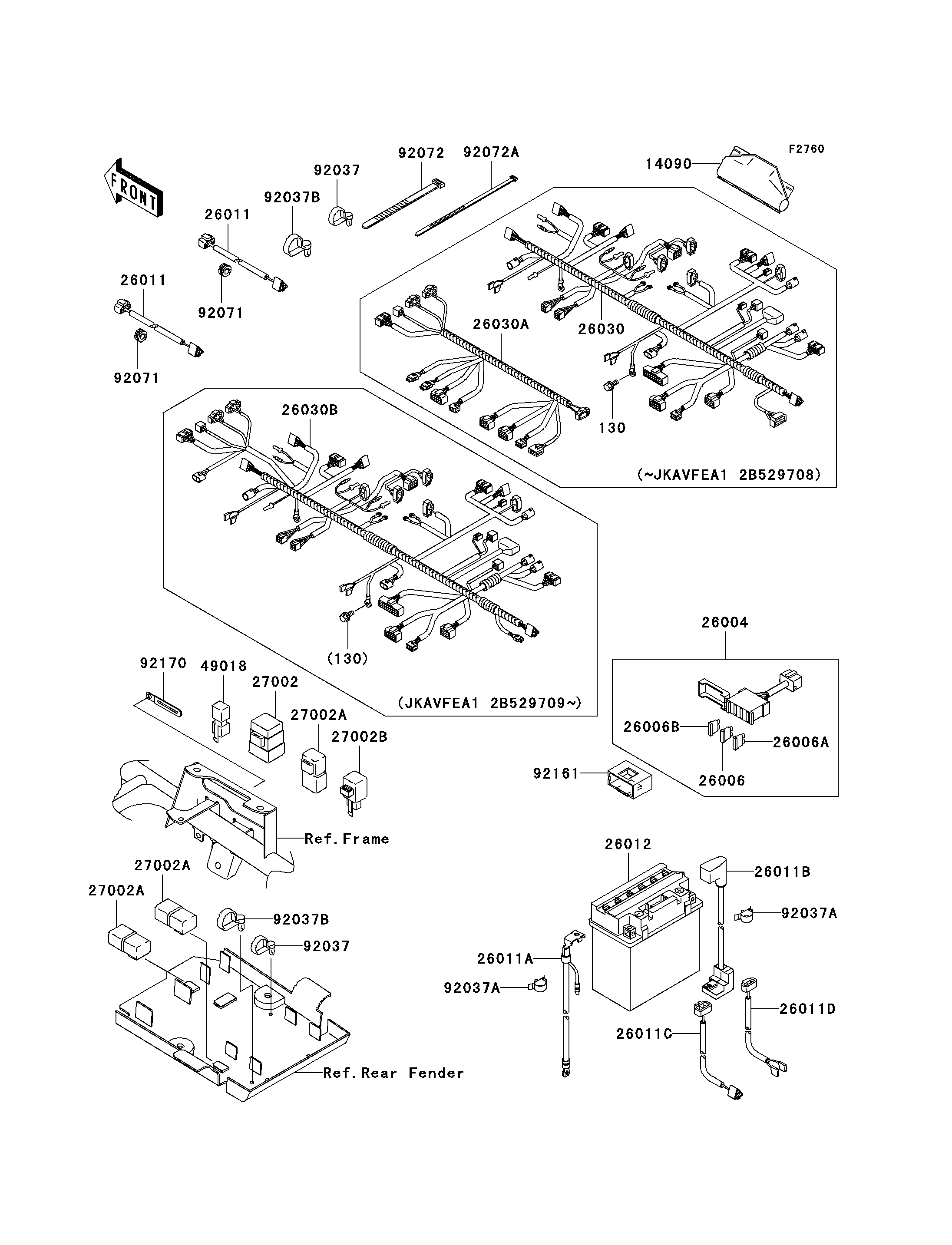

2002 Prairie 650 4X4 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
14090
26004
26006
26006A
26006B
26011
26011
26011A
26011B
26011C
26011D
26012
26030
26030A
26030B
27002
27002A
27002A
27002A
27002B
49018
92037
92037
92037A
92037A
92037B
92037B
92071
92071
92072
92072A
92161
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130B0612 1
COVER,COUPLER 14090 14090-1331 2
FUSE-ASSY 26004 26004-1125 1
FUSE,10A-R 26006 26006-1007 1
FUSE,15A-B 26006A 26006-1061 1
FUSE,5A 26006B 26006-1082 1
WIRE-LEAD,HEAD LAMP 26011 26011-1741 2
WIRE-LEAD,BATTERY(-) 26011A 26011-1752 1
WIRE-LEAD,BATTERY(+) 26011B 26011-1790 1
WIRE-LEAD,SPEED SENSOR 26011C 26011-1801 1
WIRE-LEAD,FRONT BRAKE 26011D 26011-1802 1
BATTERY,MF,KMX14-BS,12V 12AH 26012 26012-1414 1
HARNESS,MAIN 26030 26030-1888 1 ( - JKAVFEA1 2B529708)
HARNESS,SUB 26030A 26030-1932 1 ( - JKAVFEA1 2B529708)
HARNESS,MAIN 26030B 26030-1957 1 (JKAVFEA1 2B529709 - )
RELAY-ASSY 27002 27002-1055 1
RELAY-ASSY 27002A 27002-1086 3
RELAY-ASSY,SIGNAL LAMP 27002B 27002-1097 1
DIODE 49018 49018-1052 1
CLAMP,SPEED,L=58 92037 92037-1163 3
CLAMP,HARNESS 92037A 92037-1878 2
CLAMP,SPEED,L=80.5 92037B 92037-1903 4
GROMMET 92071 92071-1128 2
BAND,L=123 92072 92072-030 2
BAND,L=188 92072A 92072-1239 23
DAMPER,FUSE 92161 92161-1136 1
CLAMP 92170 92170-1514 1
