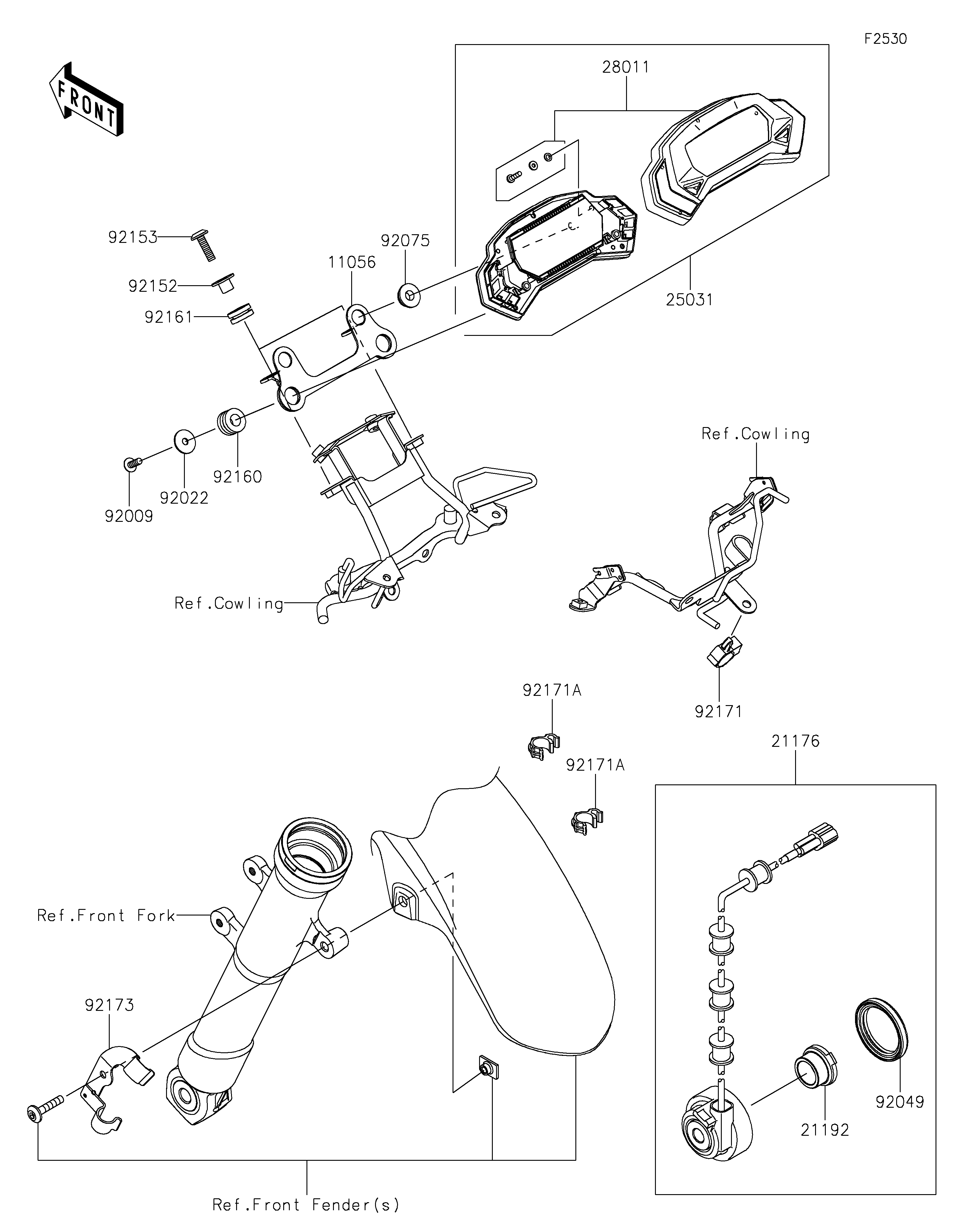

2017 Z250SL (Indonesia Only) - Meter(s)
11056
21176
21192
25031
28011
92009
92022
92049
92075
92152
92153
92160
92161
92171
92171A
92171A
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,METER | 11056 | 11056-4253 | 1 | ||
| SENSOR,SPEED | 21176 | 21176-0759 | 1 | ||
| MAGNET,SPEED SENSOR | 21192 | 21192-0004 | 1 | ||
| METER-ASSY,COMBINATION | 25031 | 25031-0667 | 1 | ||
| METER,COVER | 28011 | 28011-0737 | 1 | ||
| SCREW,TAPPING,5X14 | 92009 | 92009-1197 | 2 | ||
| WASHER,5.5X20X1.2 | 92022 | 92022-1405 | 2 | ||
| SEAL-OIL,METER GEAR CASE | 92049 | 92049-1172 | 1 | ||
| DAMPER,RADIATOR GUARD | 92075 | 92075-1469 | 2 | ||
| COLLAR,6.8X10X10.8 | 92152 | 92152-1884 | 2 | ||
| BOLT,SOCKET,6X22 | 92153 | 92153-0574 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 2 | ||
| DAMPER,10X20X8.8 | 92161 | 92161-1664 | 2 | ||
| CLAMP,BRAKE HOSE | 92171 | 92171-0316 | 1 | ||
| CLAMP,BRAKE HOSE | 92171A | 92171-1703 | 2 | ||
| CLAMP,FR FENDER | 92173 | 92173-1119 | 1 |
| BRACKET,METER | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,SPEED | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MAGNET,SPEED SENSOR | |
| REF # | 21192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,COMBINATION | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,COVER | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X20X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,METER GEAR CASE | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RADIATOR GUARD | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X10.8 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X12 | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X8.8 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FR FENDER | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
