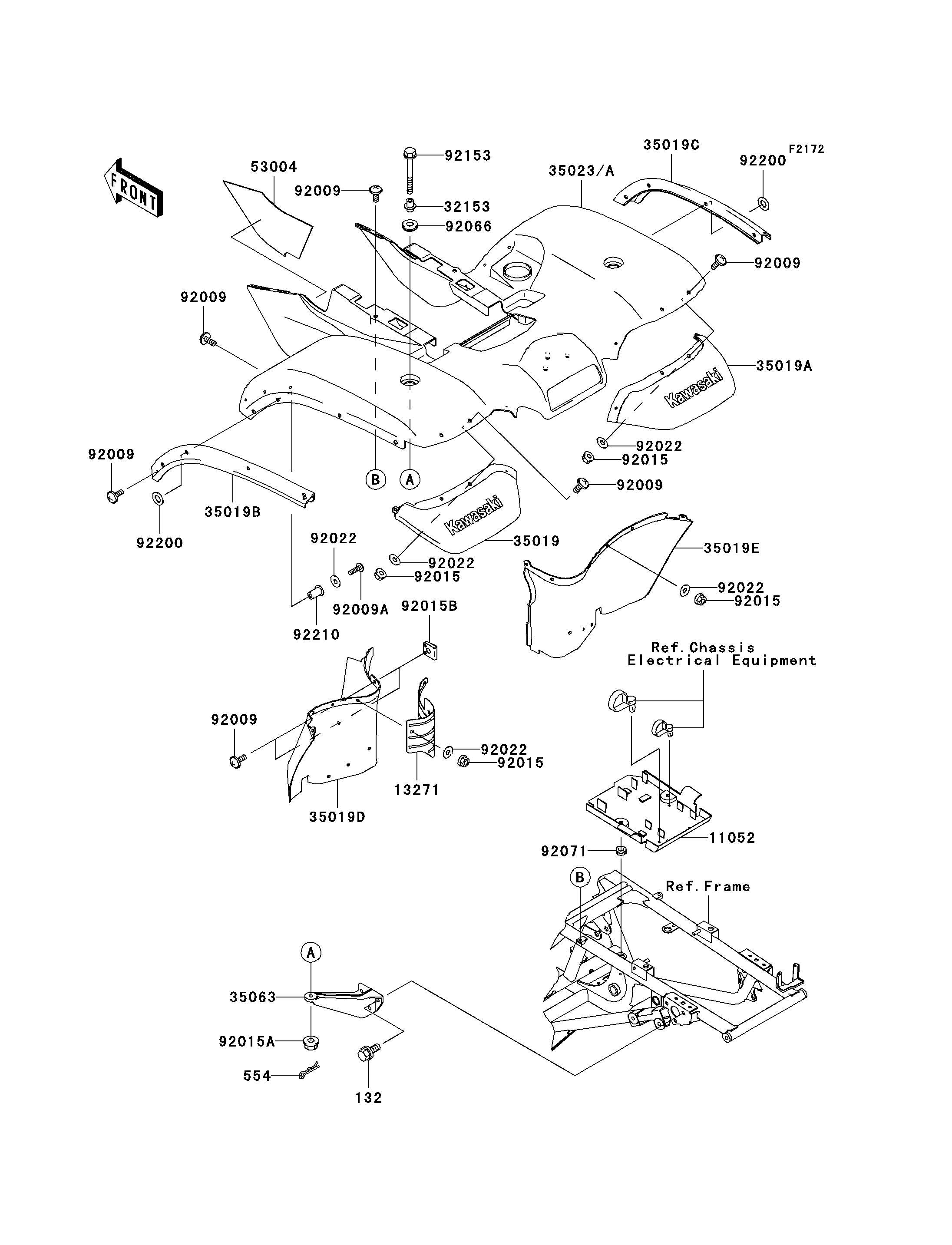

2002 Prairie 650 4X4 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
132
554
11052
13271
32153
35019
35019A
35019B
35019C
35019D
35019E
35023
35023A
35063
53004
92009
92009
92009
92009
92009
92009
92009A
92015
92015
92015
92015
92015A
92015B
92022
92022
92022
92022
92022
92066
92071
92153
92200
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132J0818 6
PIN-SNAP,8MM 554 554A0800 2
BRACKET,ELCTRIC 11052 11052-1481 1
PLATE,HEAT GUARD 13271 13271-1718 1
PIPE,RR FENDER 32153 32153-1606 2
FLAP,RR,RR,LH,F.BLACK 35019 35019-1371-6Z 1
FLAP,RR,RR,RH,F.BLACK 35019A 35019-1372-6Z 1
FLAP,RR,SIDE,LH,F.BLACK 35019B 35019-1373-6Z 1
FLAP,RR,SIDE,RH,F.BLACK 35019C 35019-1374-6Z 1
FLAP,RR,FR,LH,F.BLACK 35019D 35019-1393-6Z 1
FLAP,RR,FR,RH,F.BLACK 35019E 35019-1394-6Z 1
FENDER-REAR,H.GREEN 35023 35023-1565-6A 1
FENDER-REAR,F.RED 35023A 35023-1565-6L 1
STAY,RR FENDER 35063 35063-1100 2
MAT,RR FENDER 53004 53004-1141 1
SCREW,6X16 92009 92009-1621 23
SCREW,5X18 92009A 92009-1655 8
NUT,FLANGED,6MM 92015 92015-1367 19
NUT,LOCK,FLANGED,8MM 92015A 92015-1397 2
NUT,CLAMP,6MM 92015B 92015-1678 2
WASHER,6.5X16X1.0 92022 92022-1093 27
PLUG 92066 92066-1438 2
GROMMET 92071 92071-1131 2
BOLT,FLANGED,8X58 92153 92153-1061 2
WASHER,9.5X18X1.2 92200 92200-1037 8
NUT,POP,5MM 92210 92210-1227 8
