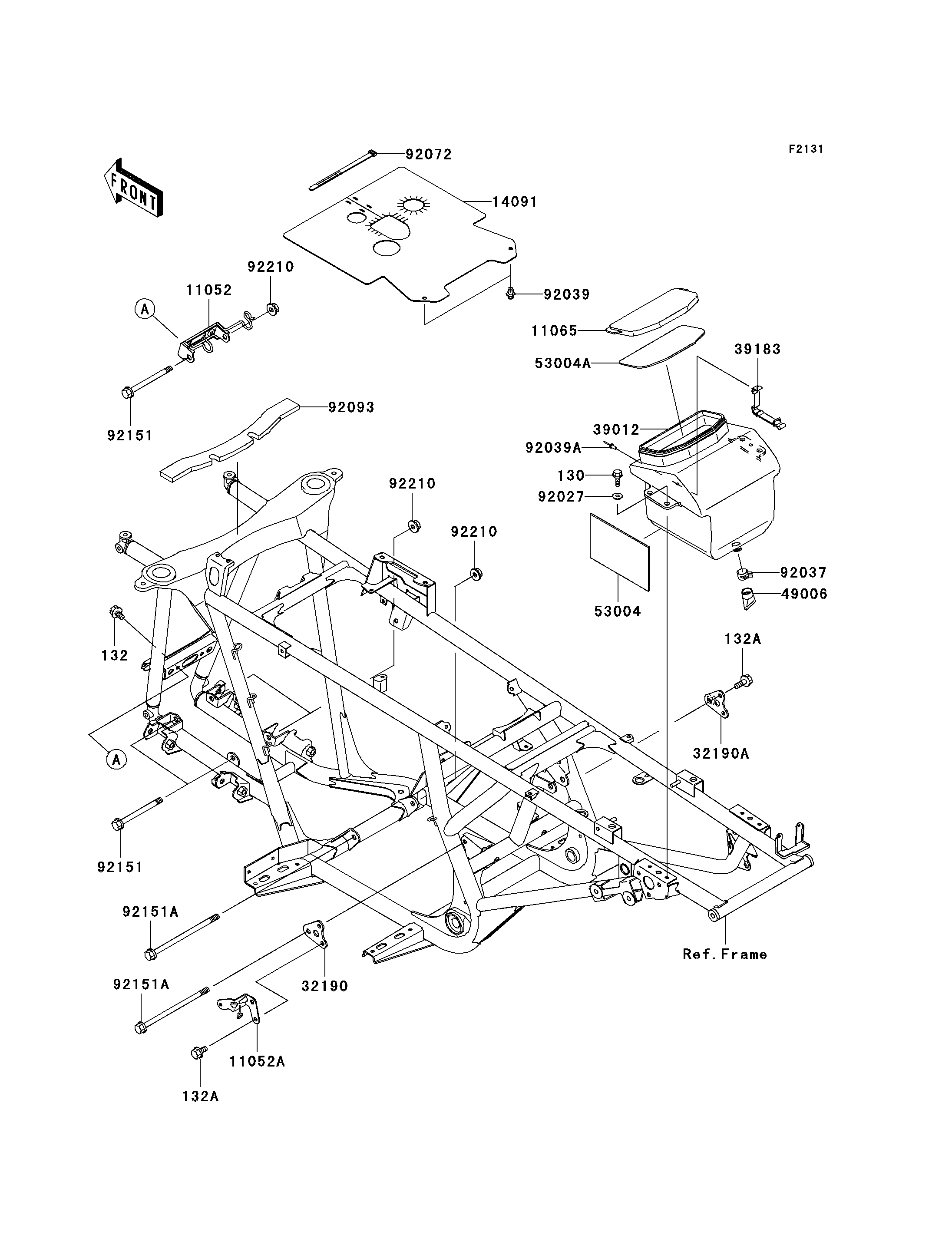

2002 Prairie 650 4X4 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
132A
11052
11052A
11065
14091
32190
32190A
39012
39183
49006
53004
53004A
92027
92037
92039
92039A
92072
92093
92151
92151
92151A
92151A
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130G0620 4
BOLT-FLANGED-SMALL 132 132J0814 2
BOLT-FLANGED-SMALL,8X16 132A 132J0816 4
BRACKET,FRONT DIFF 11052 11052-1181 1
BRACKET,RESERVOIR TANK 11052A 11052-1361 1
CAP,STORAGE CASE 11065 11065-1154 1
COVER,FR,UPP 14091 14091-1347 1
BRACKET-ENGINE,RR,UPP,LH 32190 32190-1203 1
BRACKET-ENGINE,RR,UPP,RH 32190A 32190-1204 1
CASE-STORAGE 39012 39012-1064 1
BAND-ASSY,TOOL BAG 39183 39183-1065 1
BOOT 49006 49006-1292 1
MAT,STORAGE CASE 53004 53004-1139 1
MAT,STORAGE CASE CAP 53004A 53004-1147 1
COLLAR 92027 92027-1936 4
CLAMP 92037 92037-1460 1
RIVET 92039 92039-1229 2
RIVET,4.8MM 92039A 92039-3719 2
BAND,L=123 92072 92072-030 2
SEAL 92093 92093-1555 1
BOLT,FLANGED,10X120 92151 92151-1914 3
BOLT,FLANGED,10X190 92151A 92151-1915 2
NUT,LOCK,FLANGED,10MM 92210 92210-1081 4
