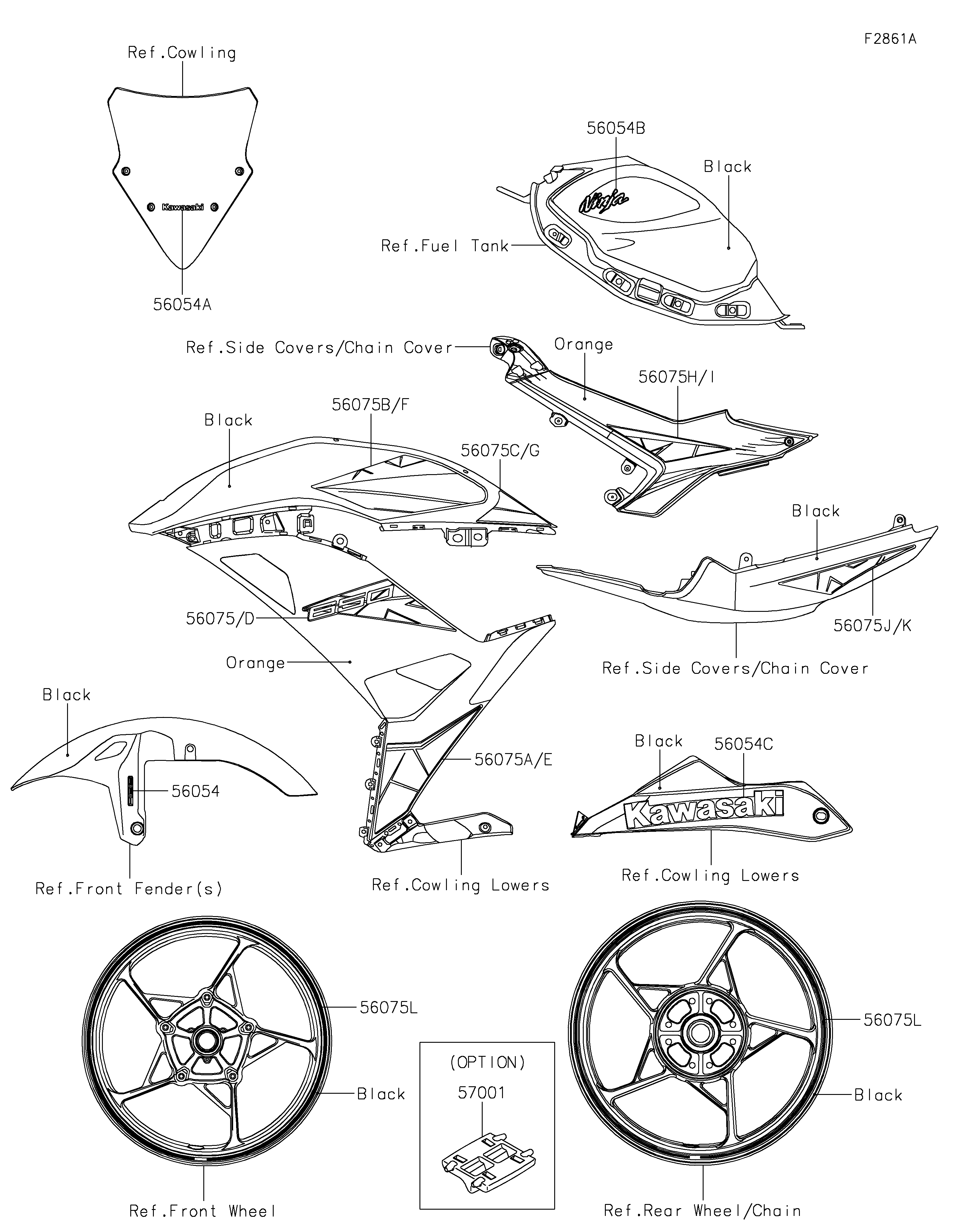

2019 NINJA® 650 ABS - Decals(Orange)(KKFA)
56054
56054A
56054B
56054C
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075L
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-1413 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2177 | 1 | ||
| MARK,FUEL TANK,NINJA | 56054B | 56054-2492 | 2 | ||
| MARK,LWR COWL.,KAWASAKI | 56054C | 56054-2493 | 2 | ||
| PATTERN,SIDE COWL.,LH,CNT | 56075 | 56075-7311 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56075A | 56075-7312 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56075B | 56075-7313 | 1 | ||
| PATTERN,SIDE COWL.,LH,RR | 56075C | 56075-7314 | 1 | ||
| PATTERN,SIDE COWL.,RH,CNT | 56075D | 56075-7315 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56075E | 56075-7316 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56075F | 56075-7317 | 1 | ||
| PATTERN,SIDE COWL.,RH,RR | 56075G | 56075-7318 | 1 | ||
| PATTERN,SIDE COVER,LH | 56075H | 56075-7319 | 1 | ||
| PATTERN,SIDE COVER,RH | 56075I | 56075-7320 | 1 | ||
| PATTERN,TAIL COVER,LH | 56075J | 56075-7321 | 1 | ||
| PATTERN,TAIL COVER,RH | 56075K | 56075-7322 | 1 | ||
| PATTERN,WHEEL,YEL/BLK,4X1353 | 56075L | 56075-7323 | 4 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,FR FENDER,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,RR | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56075F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,RR | |
| REF # | 56075G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56075H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56075I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56075J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56075K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,YEL/BLK,4X1353 | |
| REF # | 56075L |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
