Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

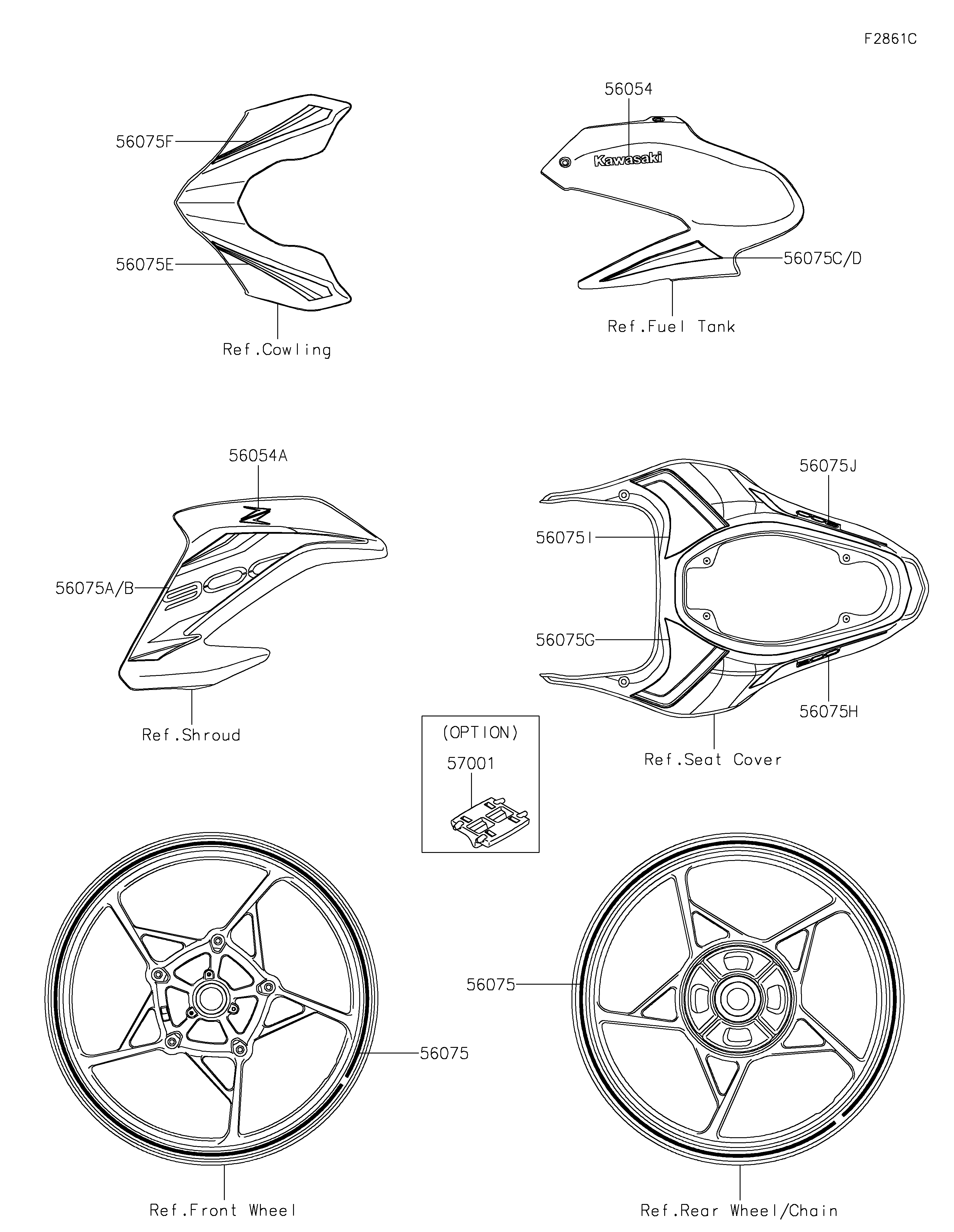

Parts Diagrams |
56054
56054A
56075
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | ||
| MARK,SHROUD,Z | 56054A | 56054-1914 | 2 | ||
| PATTERN,WHEEL,GRN,4X1353 | 56075 | 56075-2279 | 4 | ||
| PATTERN,SHROUD,LH | 56075A | 56075-7390 | 1 | ||
| PATTERN,SHROUD,RH | 56075B | 56075-7391 | 1 | ||
| PATTERN,TANK COVER,LH | 56075C | 56075-7392 | 1 | ||
| PATTERN,TANK COVER,RH | 56075D | 56075-7393 | 1 | ||
| PATTERN,UPP COWL.,LH | 56075E | 56075-7394 | 1 | ||
| PATTERN,UPP COWL.,RH | 56075F | 56075-7395 | 1 | ||
| PATTERN,TAIL COVER,LH,UPP | 56075G | 56075-7396 | 1 | ||
| PATTERN,TAIL COVER,LH,LWR | 56075H | 56075-7397 | 1 | ||
| PATTERN,TAIL COVER,RH,UPP | 56075I | 56075-7398 | 1 | ||
| PATTERN,TAIL COVER,RH,LWR | 56075J | 56075-7399 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
