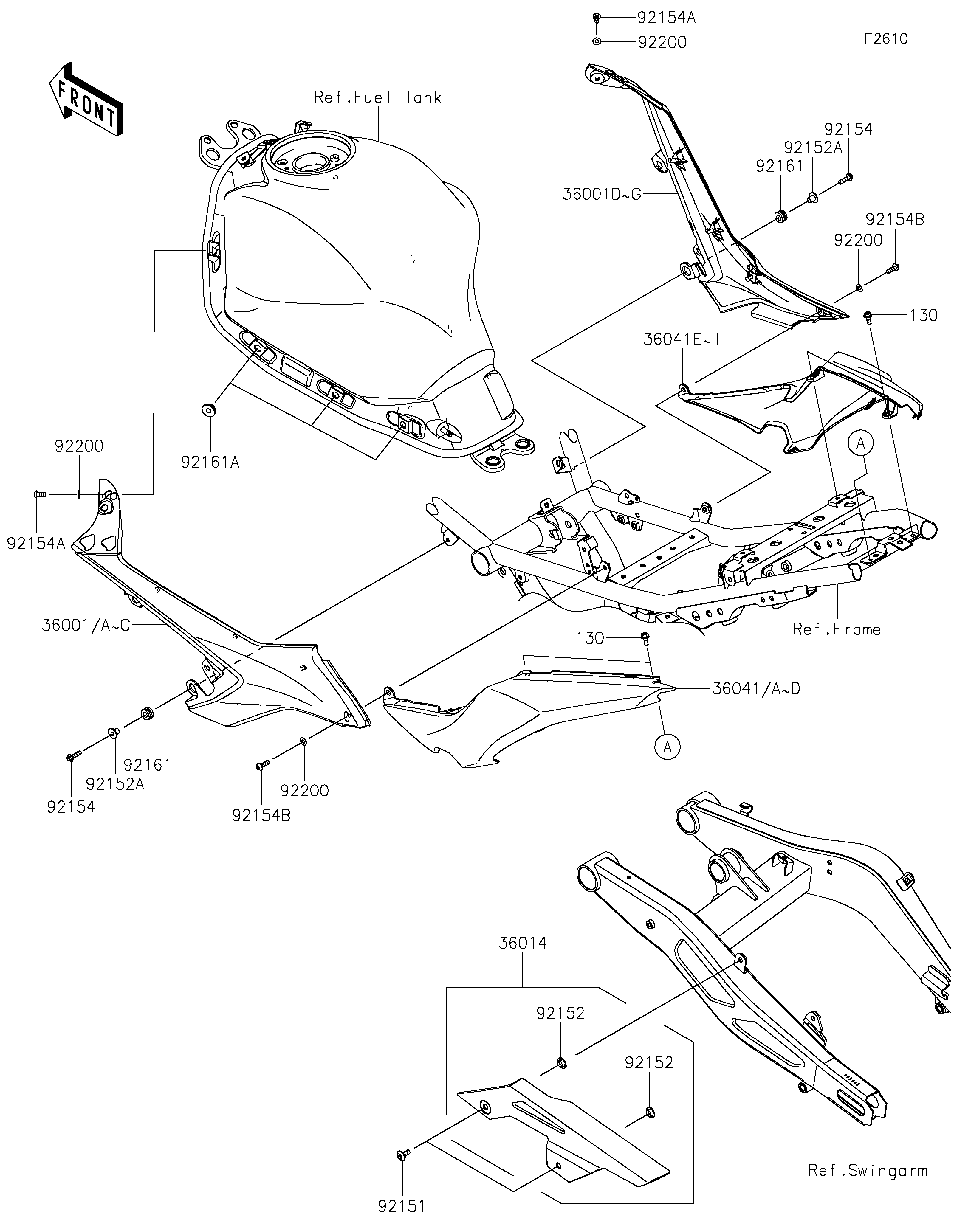

2019 NINJA® 650 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130
36001A
36001E
36014
36041C
36041H
92151
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X12 130 130BA0512 4
COVER-SIDE,LH,M.S.BLACK 36001A 36001-0650-660 1
COVER-SIDE,RH,M.S.BLACK 36001E 36001-0651-660 1
CASE-CHAIN 36014 36014-0044 1
COVER-TAIL,LH,M.S.BLACK 36041C 36041-0033-660 1
COVER-TAIL,RH,M.S.BLACK 36041H 36041-0034-660 1
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,8.8X11.2X4 92152 92152-0909 2
COLLAR 92152A 92152-1592 2
BOLT,SOCKET,5X20 92154 92154-0210 2
BOLT,SOCKET,5X12 92154A 92154-1421 2
BOLT,SOCKET,5X16 92154B 92154-1701 2
DAMPER,8X16X8.6 92161 92161-0685 2
DAMPER,6X20X7.5 92161A 92161-1937 6
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
