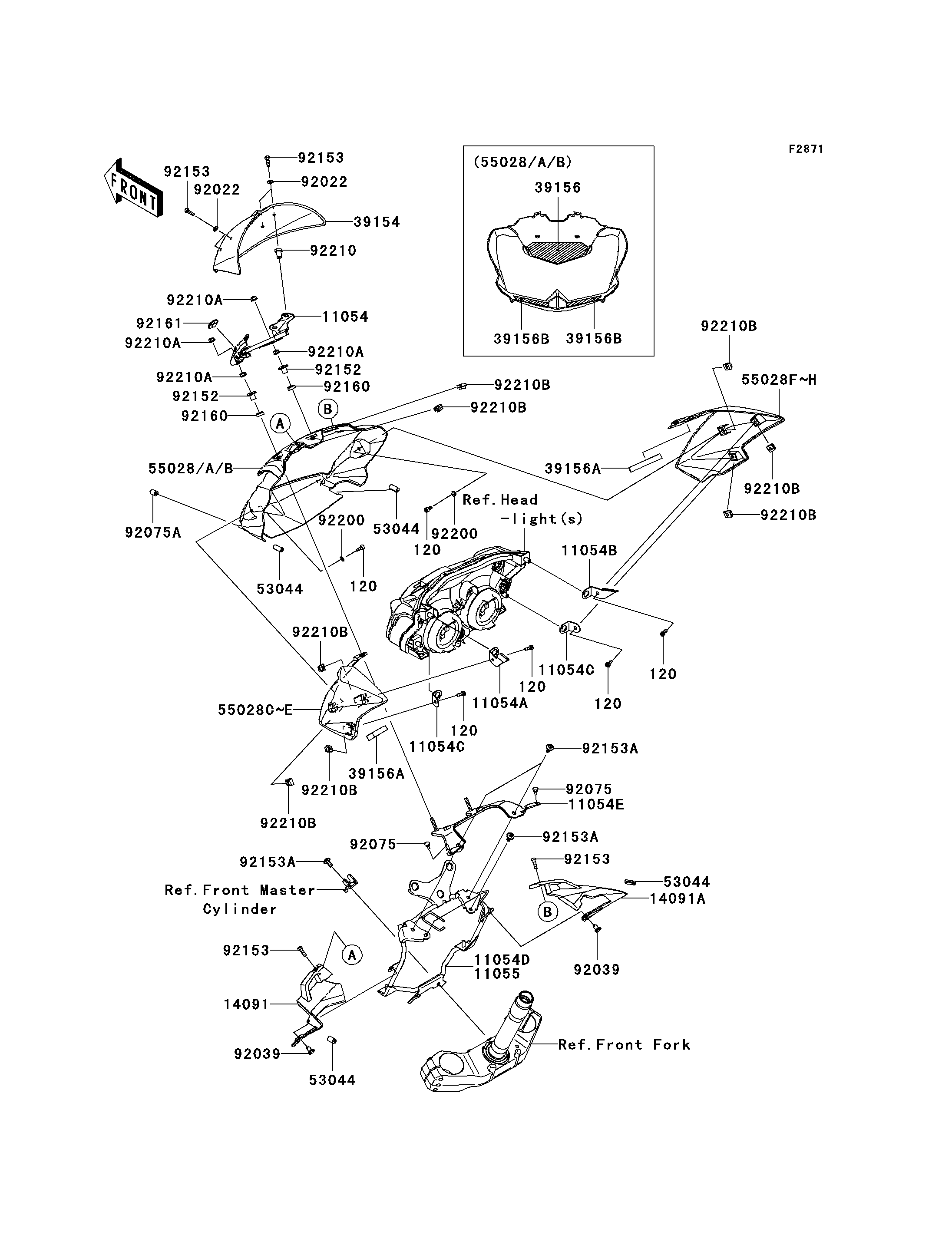

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11054
11054
11054A
11054A
11054B
11054B
11054C
11054C
11054C
11054C
11054D
11054D
11054E
11054E
14091
14091
14091A
14091A
39154
39154
39156
39156
39156A
39156A
39156A
39156A
39156B
39156B
39156B
39156B
53044
53044
53044
53044
53044
53044
53044
53044
55028
55028
55028C
55028C
55028F
55028F
92022
92022
92022
92022
92039
92039
92039
92039
92075
92075
92075
92075
92075A
92075A
92152
92152
92152
92152
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92160
92160
92160
92160
92161
92161
92200
92200
92200
92200
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
120
120
120
120
120
120
120
120
120
120
120
120
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,WINDSHIELD | 11054 | 11054-0844 | 1 | ||
| BRACKET,HEAD LAMP,UPP,LH | 11054A | 11054-0871 | 1 | ||
| BRACKET,HEAD LAMP,UPP,RH | 11054B | 11054-0872 | 1 | ||
| BRACKET,HEAD LAMP,LWR | 11054C | 11054-0873 | 2 | ||
| BRACKET,UPP COWLING | 11054D | 11054-1871 | 1 | ||
| BRACKET,UPP COWLING | 11054E | 11054-1880 | 1 | ||
| COVER,INNER,LH | 14091 | 14091-0569 | 1 | ||
| COVER,INNER,RH | 14091A | 14091-0663 | 1 | ||
| WINDSHIELD | 39154 | 39154-0020 | 1 | ||
| PAD,UPP COWLING | 39156 | 39156-0338 | 1 | ||
| PAD,UPP COWLING | 39156A | 39156-0339 | 2 | ||
| PAD,UPP COWLING | 39156B | 39156-0340 | 2 | ||
| TRIM,L=20 | 53044 | 53044-0021 | 4 | ||
| COWLING,UPP,CNT,M.BLACK | 55028 | 55028-0102-17K | 1 | ||
| COWLING,UPP,LH,M.BLACK | 55028C | 55028-0103-17K | 1 | ||
| COWLING,UPP,RH,M.BLACK | 55028F | 55028-0104-17K | 1 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 4 | ||
| RIVET | 92039 | 92039-1286 | 2 | ||
| DAMPER | 92075 | 92075-1808 | 2 | ||
| DAMPER,SIDE COVER | 92075A | 92075-1964 | 2 | ||
| COLLAR | 92152 | 92152-1074 | 2 | ||
| BOLT,SOCKET,5X18 | 92153 | 92153-0370 | 6 | ||
| BOLT,SOCKET,6X14 | 92153A | 92153-1612 | 6 | ||
| DAMPER | 92160 | 92160-3754 | 2 | ||
| DAMPER,RUBBER | 92161 | 92161-1200 | 1 | ||
| WASHER,NYLON,5.3X11.5X0.5 | 92200 | 92200-1480 | 2 | ||
| NUT,5MM | 92210 | 92210-0001 | 4 | ||
| NUT,6X1.0 | 92210A | 92210-0241 | 4 | ||
| NUT,5MM | 92210B | 92210-1266 | 8 | ||
| BOLT-SOCKET,5X12 | 120 | 120CB0512 | 6 |
