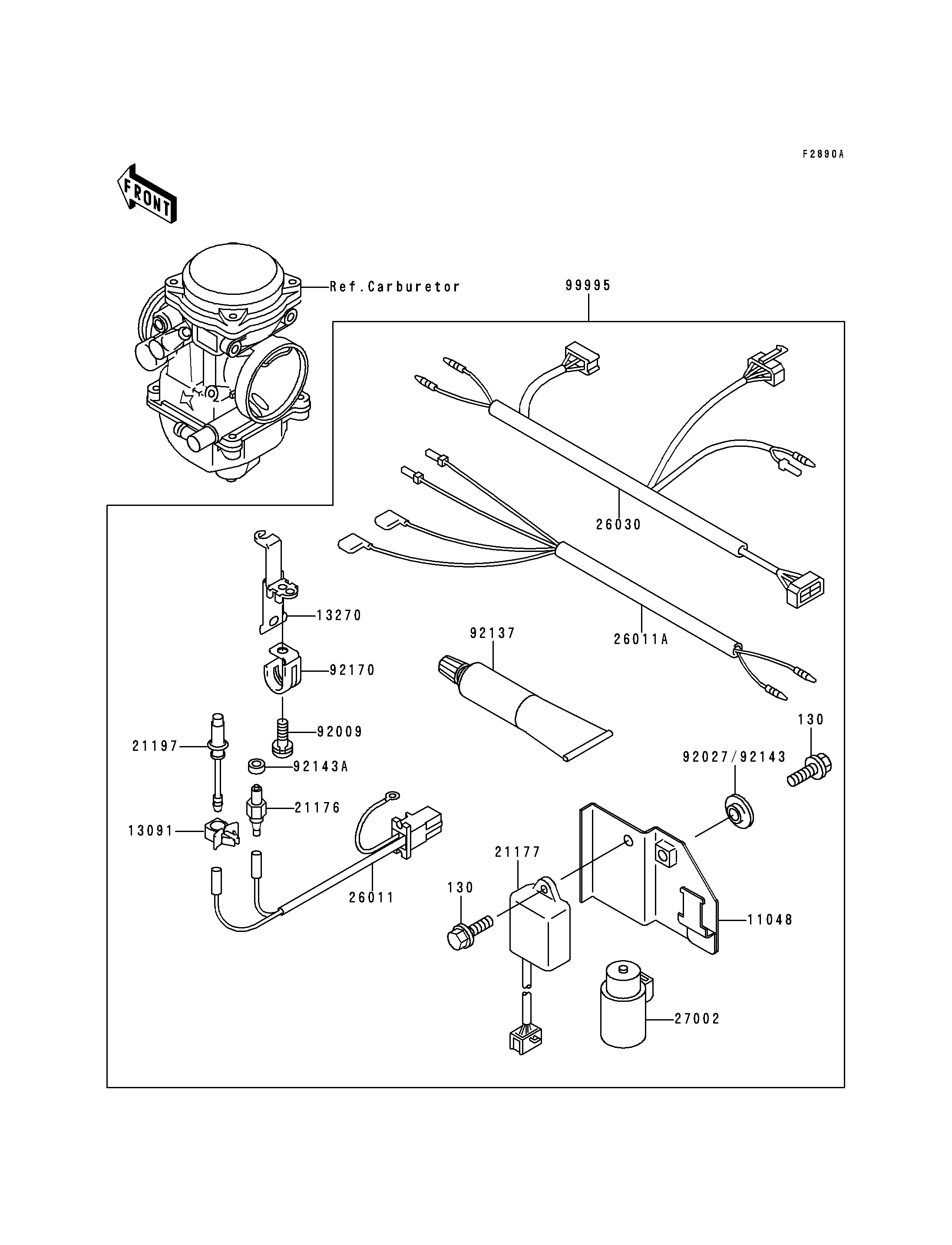

1998 Prairie 400 - Optional Parts(Carburetor)
130
130
11048
13091
13270
21176
21177
21197
26011
26011A
26030
27002
92009
92027
92137
92143
92143A
92170
99995
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 | ||
| BRACKET,ELECTRIC | 11048 | 11048-1966 | 1 | ||
| HOLDER,HEATER | 13091 | 13091-1866 | 1 | ||
| PLATE,HEATER STAY | 13270 | 13270-1145 | 1 | ||
| SENSOR | 21176 | 21176-1069 | 1 | ||
| CONTROLLER | 21177 | 21177-1056 | 1 | ||
| HEATER | 21197 | 21197-1003 | 1 | ||
| WIRE-LEAD | 26011 | 26011-1606 | 1 | ||
| WIRE-LEAD | 26011A | 26011-1614 | 1 | ||
| HARNESS,RR | 26030 | 26030-1421 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1095 | 1 | ||
| SCREW | 92009 | 92009-1706 | 1 | ||
| COLLAR,L=3.5 | 92027 | 92027-1018 | 1 | ||
| SILICONE COMPOUND | 92137 | 92137-1001 | 1 | ||
| COLLAR,L=5 | 92143 | 92143-1087 | 1 | ||
| COLLAR | 92143A | 92143-1747 | 1 | ||
| CLAMP,HARNESS | 92170 | 92170-1396 | 1 | ||
| KIT.WARMER,KVF400-A | 99995 | 99995-1422 | 1 |
