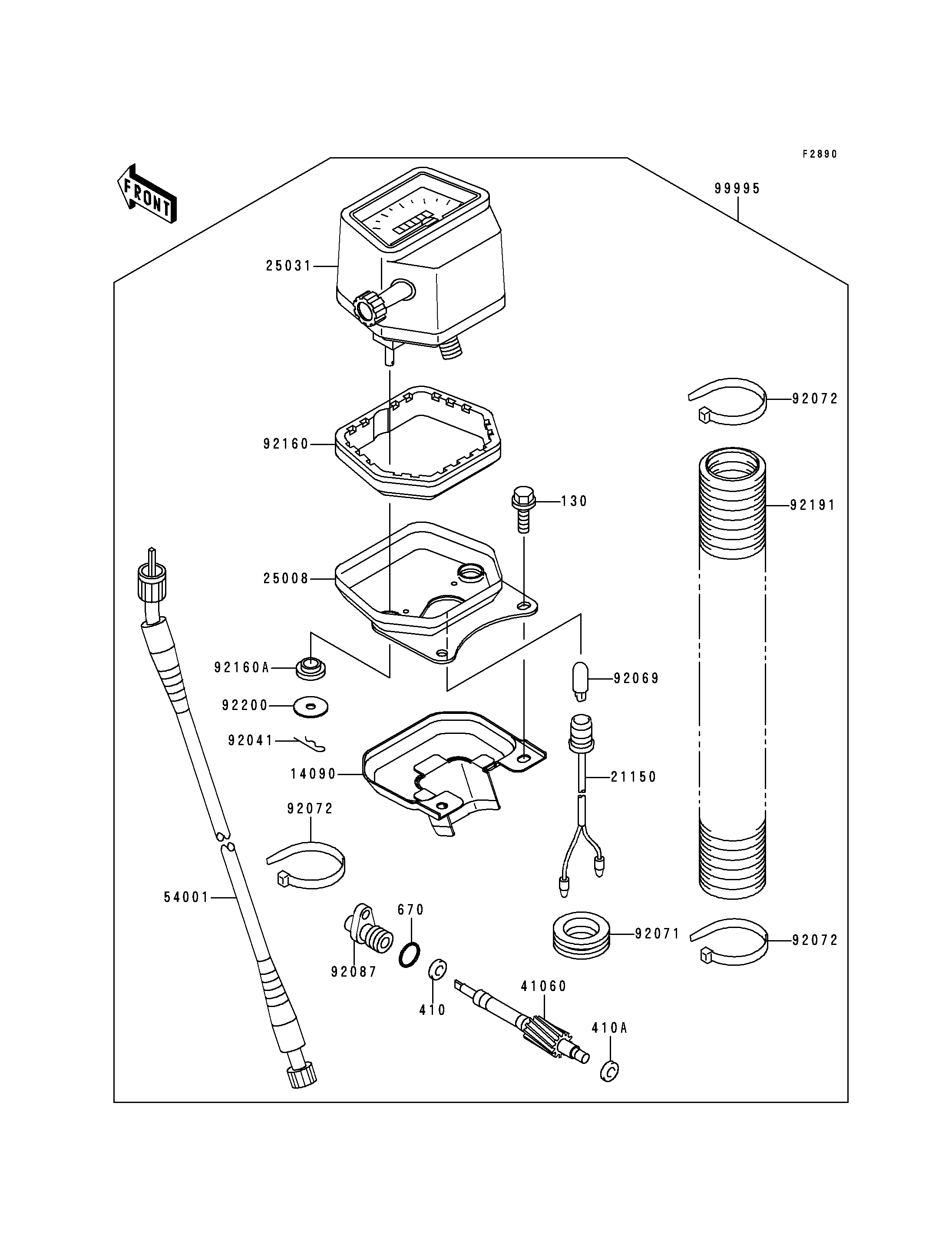

1998 Prairie 400 - Optional Parts(Meter)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130J0612 | 2 | ||
| WASHER-PLAIN-SMALL,5MM | 410 | 410B0500 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410A | 410B0600 | 1 | ||
| O RING,12MM | 670 | 670B2012 | 1 | ||
| COVER | 14090 | 14090-1797 | 1 | ||
| CORD-ASSY,SPEEDOMETER | 21150 | 21150-1058 | 1 | ||
| BRACKET-METER | 25008 | 25008-1217 | 1 | ||
| METER-ASSY,MPH | 25031 | 25031-1048 | 1 | ||
| GEAR-METER SCREW | 41060 | 41060-1157 | 1 | ||
| CABLE-SPEEDMETER | 54001 | 54001-1218 | 1 | ||
| COTTER | 92041 | 92041-006 | 2 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 1 | ||
| GROMMET,AIR FILTER | 92071 | 92071-1042 | 1 | ||
| BAND,L=185 | 92072 | 92072-1195 | 3 | ||
| BUSHING-METER GEAR | 92087 | 92087-1057 | 1 | ||
| DAMPER,SPEEDOMETER | 92160 | 92160-1783 | 1 | ||
| DAMPER | 92160A | 92160-1784 | 2 | ||
| TUBE | 92191 | 92191-1135 | 1 | ||
| WASHER,5.2X20X1 | 92200 | 92200-1332 | 2 | ||
| KIT.,SPEEDOMETER,MPH | 99995 | 99995-1391 | 1 |
