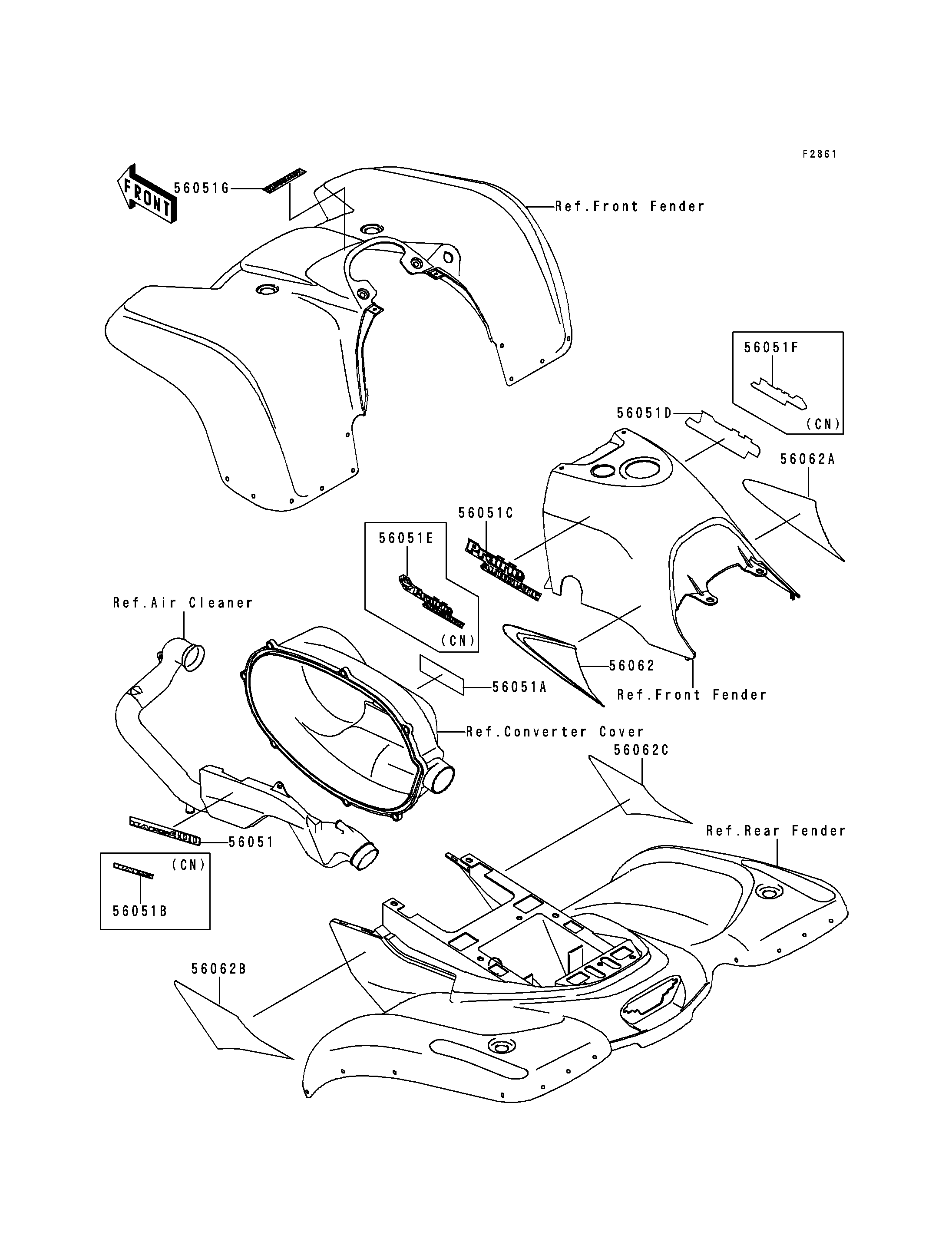

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,BELT CONVERTER COVER | 56051A | 56051-1483 | 1 | ||
| PATTERN,FUEL TANK COVER,LH | 56062 | 56062-1115 | 1 | ||
| PATTERN,FUEL TANK COVER,RH | 56062A | 56062-1116 | 1 | ||
| MARK,AIR CLEANER COVER | 56051 | 56051-1476 | 1 | ||
| MARK,AIR CLEANER COVER | 56051B | 56051-1484 | 1 | ||
| MARK,FUEL TANK COVER,LH | 56051C | 56051-1643 | 1 | ||
| MARK,FUEL TANK COVER,RH | 56051D | 56051-1644 | 1 | ||
| MARK,FUEL TANK COVER,LH | 56051E | 56051-1669 | 1 | ||
| MARK,FUEL TANK COVER,RH | 56051F | 56051-1670 | 1 | ||
| MARK,FR FENDER,KAWASAKI | 56051G | 56051-1673 | 1 | ||
| PATTERN,RR FENDER,LH | 56062B | 56062-1123 | 1 | ||
| PATTERN,RR FENDER,RH | 56062C | 56062-1124 | 1 |
