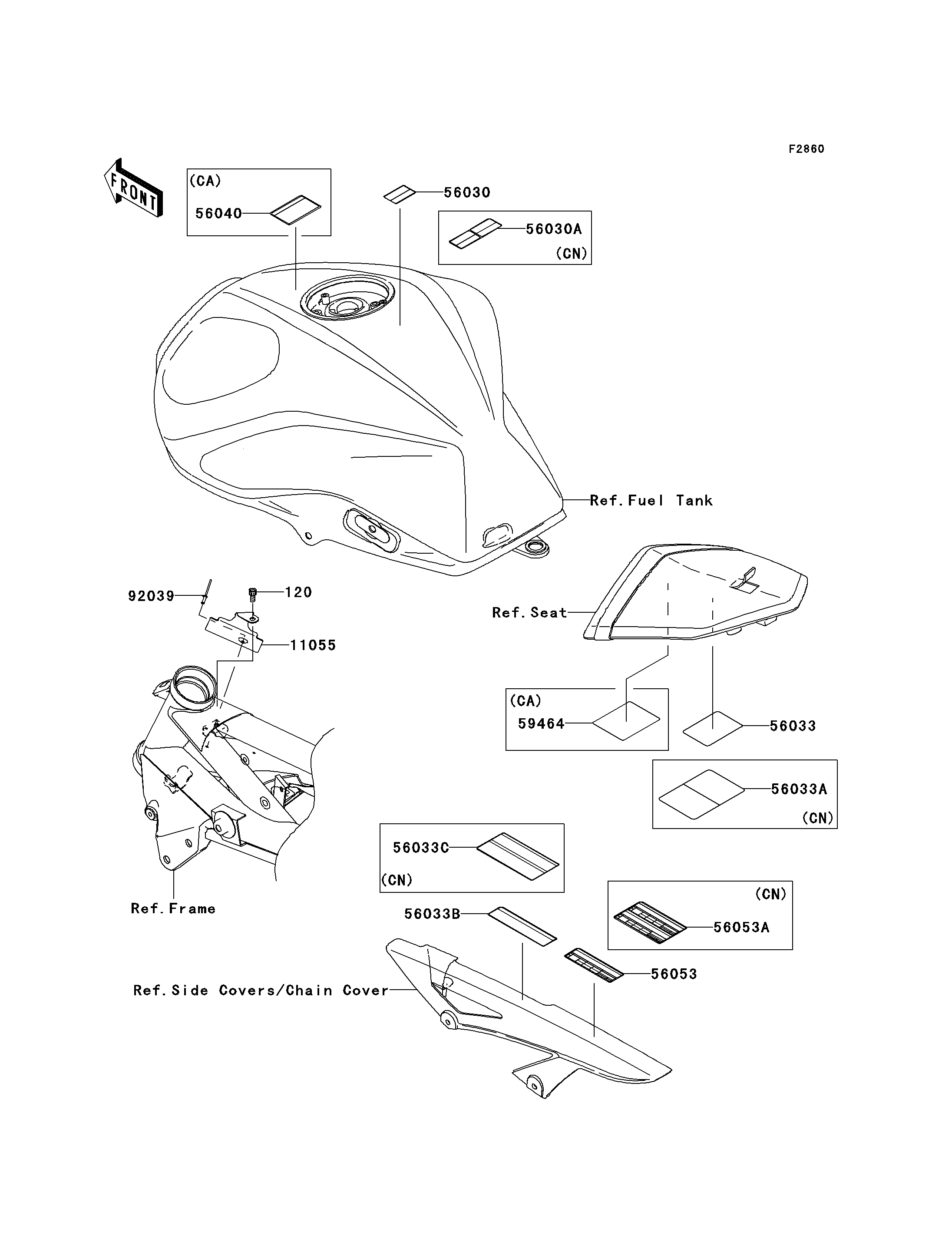

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BRACKET,LABEL | 11055 | 11055-0068 | 1 | ||
| RIVET | 92039 | 92039-1251 | 1 | ||
| LABEL,GASOLINE | 56030 | 56030-1177 | 1 | CAUS | |
| LABEL,GASOLINE | 56030A | 56030-1178 | 1 | CN | |
| LABEL-MANUAL,DAILY SAFETY | 56033 | 56033-0181 | 1 | CAUS | |
| LABEL-MANUAL,DAILY SAFETY | 56033A | 56033-0182 | 1 | CN | |
| LABEL-MANUAL,CHAIN | 56033B | 56033-0183 | 1 | CAUS | |
| LABEL-MANUAL,CHAIN | 56033C | 56033-0184 | 1 | CN | |
| LABEL-WARNING,EVAPO | 56040 | 56040-1121 | 1 | CA | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56053 | 56053-0210 | 1 | CAUS | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56053A | 56053-0211 | 1 | CN | |
| LABEL-CERTIFICATION,EVAPO ROUT | 59464 | 59464-0861 | 1 | CA |
| BOLT-SOCKET,6X12 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LABEL | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,GASOLINE | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| LABEL,GASOLINE | |
| REF # | 56030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-MANUAL,DAILY SAFETY | |
| REF # | 56033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| LABEL-MANUAL,DAILY SAFETY | |
| REF # | 56033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-MANUAL,CHAIN | |
| REF # | 56033B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| LABEL-MANUAL,CHAIN | |
| REF # | 56033C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,EVAPO | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE&LOAD | |
| REF # | 56053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE&LOAD | |
| REF # | 56053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-CERTIFICATION,EVAPO ROUT | |
| REF # | 59464 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
