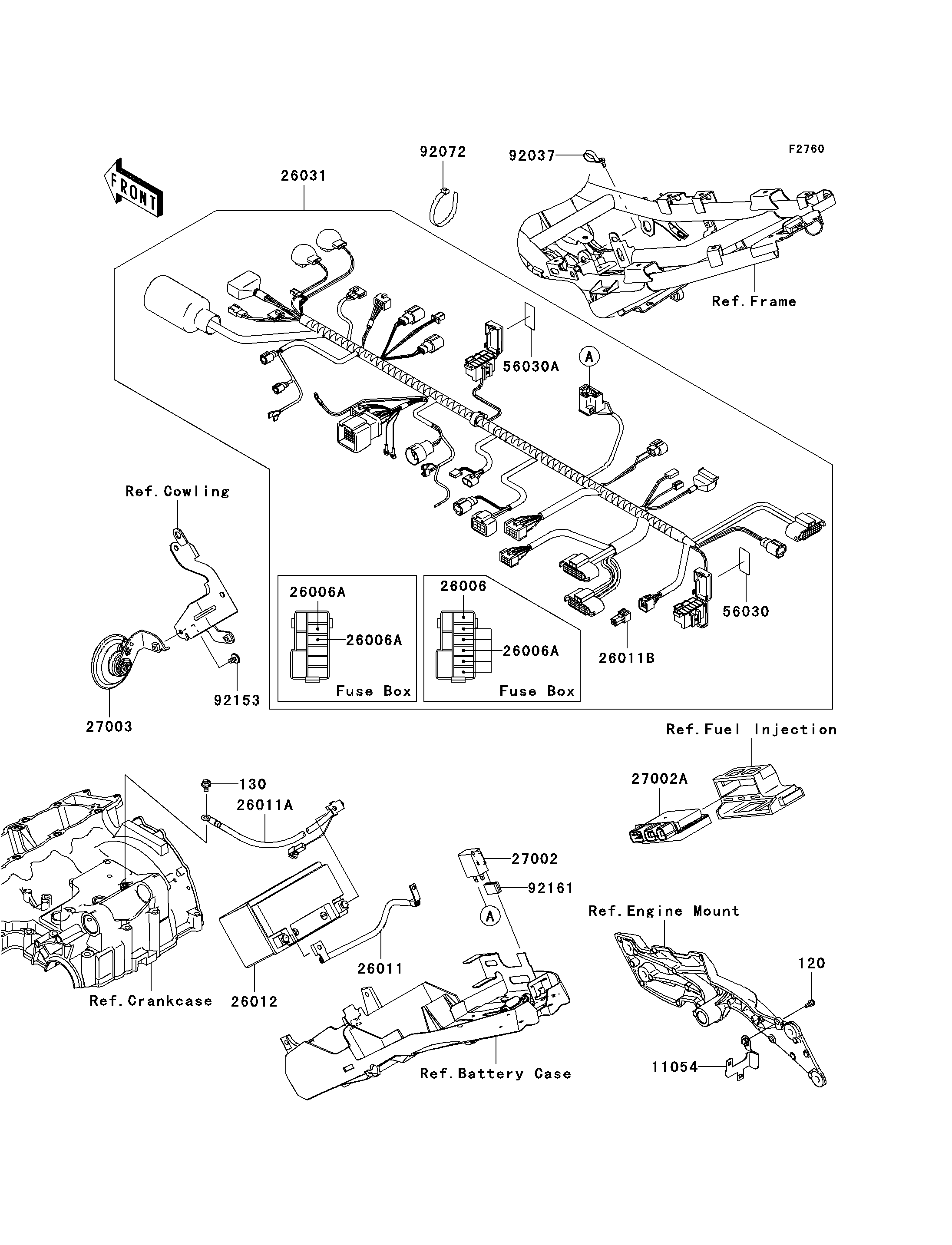

2007 Z1000 - Chassis Electrical Equipment
120
130
11054
26006
26006A
26006A
26006A
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
92037
92072
92153
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,5X10 | 120 | 120CB0510 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130V0610 | 1 | ||
| BRACKET,COUPLER | 11054 | 11054-1992 | 1 | ||
| FUSE,15A | 26006 | 26006-0001 | 1 | ||
| FUSE,10A | 26006A | 26006-1078 | 7 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-0107 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-0108 | 1 | ||
| WIRE-LEAD | 26011B | 26011-0159 | 1 | ||
| BATTERY,YTX9-BS,12V 8AH | 26012 | 26012-0088 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-0565 | 1 | ||
| RELAY-ASSY,SIGNAL LAMP | 27002 | 27002-0005 | 1 | ||
| RELAY-ASSY | 27002A | 27002-0007 | 1 | ||
| HORN | 27003 | 27003-0053 | 1 | ||
| LABEL,FUSE BOX | 56030 | 56030-0144 | 1 | ||
| LABEL,FUSE BOX | 56030A | 56030-0146 | 1 | ||
| CLAMP,SPEED,L=58 | 92037 | 92037-1163 | 1 | ||
| BAND,L=202 | 92072 | 92072-1195 | 4 | ||
| BOLT,SOCKET,6X10 | 92153 | 92153-0410 | 1 | ||
| DAMPER,SIGNAL RELAY | 92161 | 92161-0283 | 1 |
