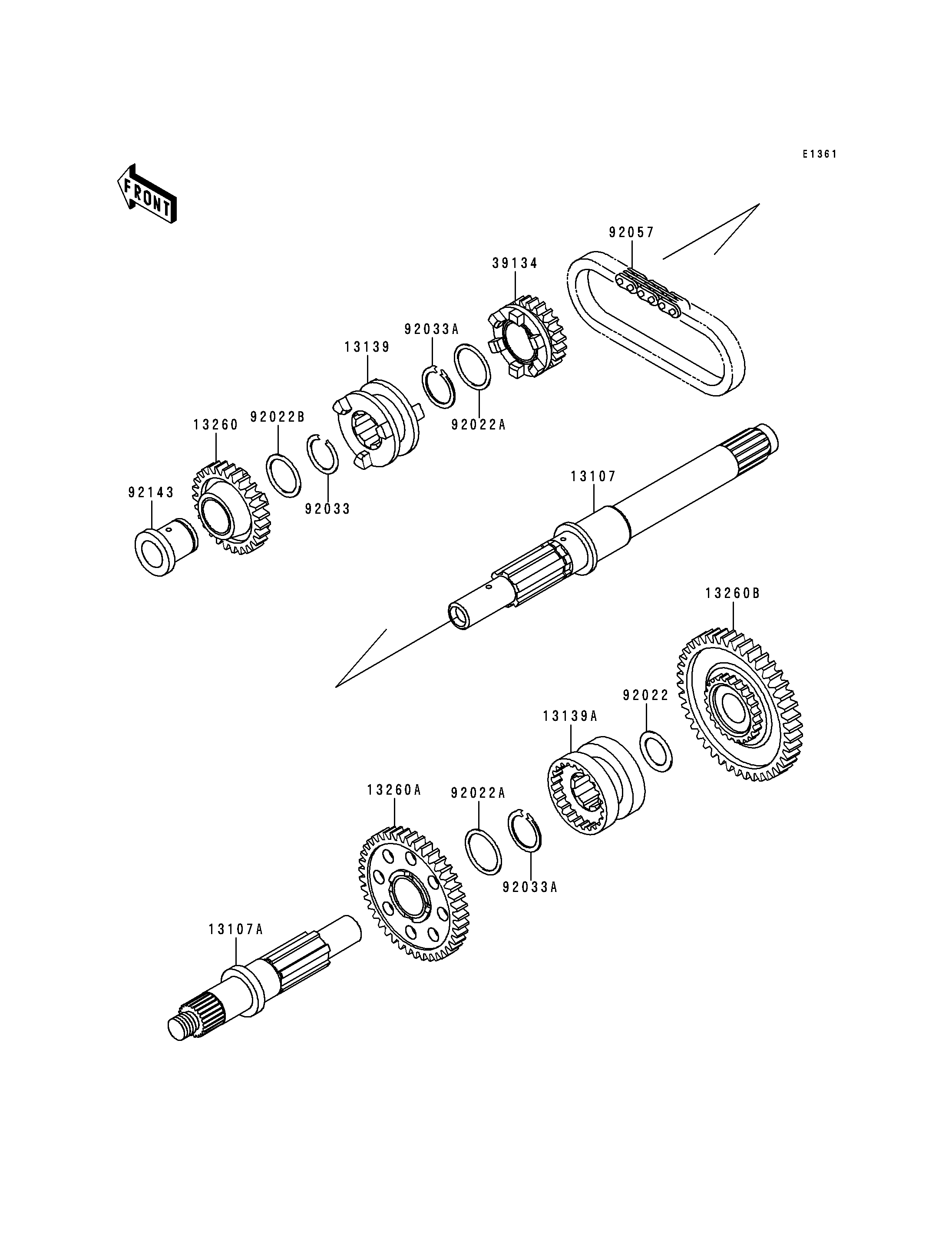

Parts Diagrams |
13107
13107A
13139
13139A
13260
13260A
13260B
39134
92022
92022A
92022A
92022B
92033
92033A
92033A
92057
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,INPUT | 13107 | 13107-1361 | 1 | ||
| SHAFT,OUTPUT | 13107A | 13107-1362 | 1 | ||
| SHIFTER,FORWARD/REVERSE | 13139 | 13139-1074 | 1 | ||
| SHIFTER,HI/LOW | 13139A | 13139-1076 | 1 | ||
| GEAR,INPUT FORWARD,27T | 13260 | 13260-1638 | 1 | ||
| GEAR,OUTPUT,41T | 13260A | 13260-1670 | 1 | ||
| GEAR,OUTPUT LOW,42T | 13260B | 13260-1675 | 1 | ||
| SPROCKET-DRIVE,REVERSE,22T | 39134 | 39134-1058 | 1 | ||
| WASHER,20.5X30X1,STEEL | 92022 | 92022-112 | 1 | ||
| WASHER,28.1X34X1.0 | 92022A | 92022-1731 | 2 | ||
| WASHER,25.3X32X1 | 92022B | 92022-1800 | 1 | ||
| RING-SNAP,24MM | 92033 | 92033-026 | 1 | ||
| RING-SNAP,25.9MM | 92033A | 92033-1037 | 2 | ||
| CHAIN,REVERSE,81RH2520 | 92057 | 92057-1421 | 1 | ||
| COLLAR,FORWARD GEAR | 92143 | 92143-1899 | 1 |
| SHAFT,INPUT | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OUTPUT | |
| REF # | 13107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFTER,FORWARD/REVERSE | |
| REF # | 13139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHIFTER,HI/LOW | |
| REF # | 13139A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,INPUT FORWARD,27T | |
| REF # | 13260 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT,41T | |
| REF # | 13260A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,OUTPUT LOW,42T | |
| REF # | 13260B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET-DRIVE,REVERSE,22T | |
| REF # | 39134 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.5X30X1,STEEL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,28.1X34X1.0 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,25.3X32X1 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,24MM | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,25.9MM | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CHAIN,REVERSE,81RH2520 | |
| REF # | 92057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FORWARD GEAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
