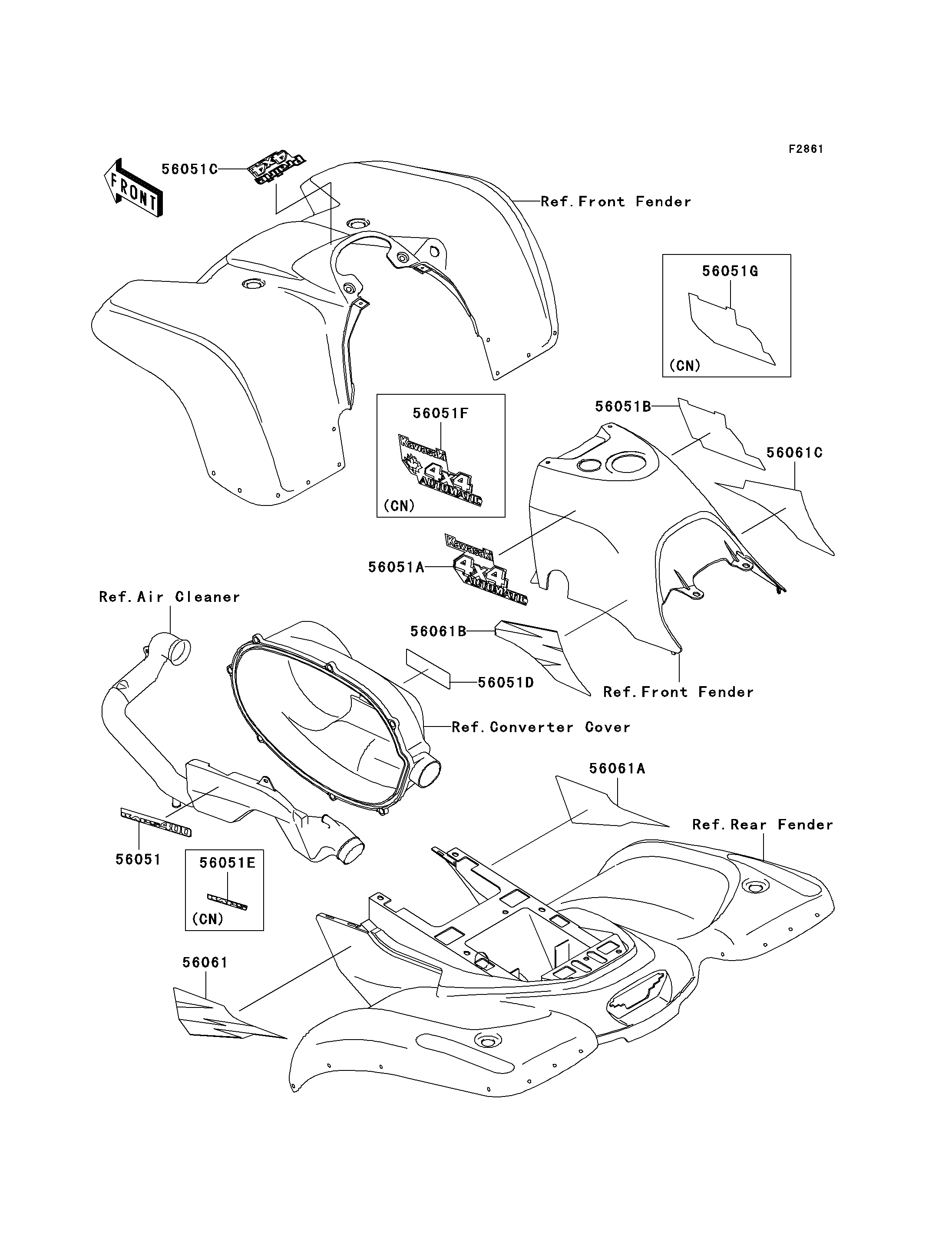

1997 Prairie 400 4X4 - Decals(Green)(KVF400-A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,4X4 | 56051C | 56051-1479 | 1 | ||
| MARK,BELT CONVERTER COVER | 56051D | 56051-1483 | 1 | ||
| PATTERN,RR FENDER,LH | 56061 | 56061-1715 | 1 | ||
| PATTERN,RR FENDER,RH | 56061A | 56061-1716 | 1 | ||
| PATTERN,FUEL TANK COVER,LH | 56061B | 56061-1942 | 1 | ||
| PATTERN,FUEL TANK COVER,RH | 56061C | 56061-1943 | 1 | ||
| MARK,AIR CLEANER COVER | 56051 | 56051-1476 | 1 | US | |
| MARK,FUEL TANK COVER,LH,4X4 | 56051A | 56051-1477 | 1 | US | |
| MARK,FUEL TANK COVER,RH,4X4 | 56051B | 56051-1478 | 1 | US | |
| MARK,AIR CLEANER COVER | 56051E | 56051-1484 | 1 | CN | |
| MARK,FUEL TANK COVER,LH,4X4 | 56051F | 56051-1494 | 1 | CN | |
| MARK,FUEL TANK COVER,RH,4X4 | 56051G | 56051-1495 | 1 | CN |
| MARK,FR FENDER,4X4 | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,BELT CONVERTER COVER | |
| REF # | 56051D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK COVER,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK COVER,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,AIR CLEANER COVER | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| MARK,FUEL TANK COVER,LH,4X4 | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| MARK,FUEL TANK COVER,RH,4X4 | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| MARK,AIR CLEANER COVER | |
| REF # | 56051E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK COVER,LH,4X4 | |
| REF # | 56051F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK COVER,RH,4X4 | |
| REF # | 56051G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
