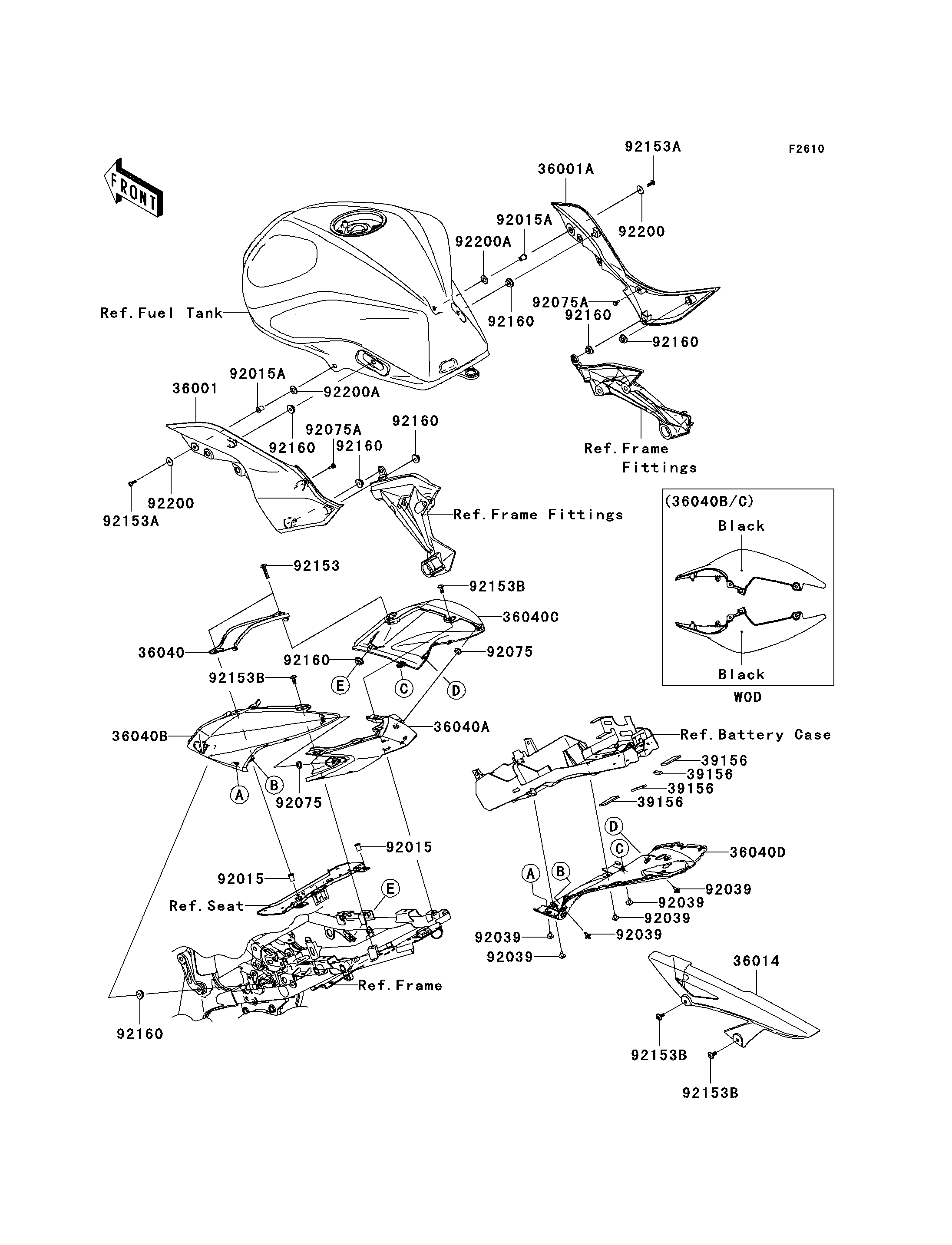

2007 Z1000 - Side Covers/Chain Cover(B7F)

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36014
36040
36040A
36040B
36040C
36040D
39156
39156
39156
39156
92015
92015
92015A
92015A
92039
92039
92039
92039
92039
92039
92075
92075
92075A
92075A
92153
92153A
92153A
92153B
92153B
92153B
92153B
92160
92160
92160
92160
92160
92160
92160
92160
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,F.BLACK 36001 36001-0108-6Z 1
COVER-SIDE,RH,F.BLACK 36001A 36001-0109-6Z 1
CASE-CHAIN 36014 36014-0029 1
COVER-TAIL,CNT,FR,M.BLACK 36040 36040-0043-17K 1
COVER-TAIL,CNT,RR,M.BLACK 36040A 36040-0044-17K 1
COVER-TAIL,SIDE,LH,M.BLACK 36040B 36040-0071-17K 1
COVER-TAIL,SIDE,RH,M.BLACK 36040C 36040-0072-17K 1
COVER-TAIL,LWR,M.BLACK 36040D 36040-0077-17K 1
PAD 39156 39156-0286 4
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 2
RIVET 92039 92039-1256 6
DAMPER 92075 92075-1011 2
DAMPER 92075A 92075-1808 2
BOLT,6X18 92153 92153-0816 2
BOLT,SOCKET,5X16 92153A 92153-1244 2
BOLT,SOCKET,6X14 92153B 92153-1612 4
DAMPER 92160 92160-1613 8
WASHER,5.5X20X1.2 92200 92200-0284 2
WASHER,10.3X20X1 92200A 92200-0414 2
