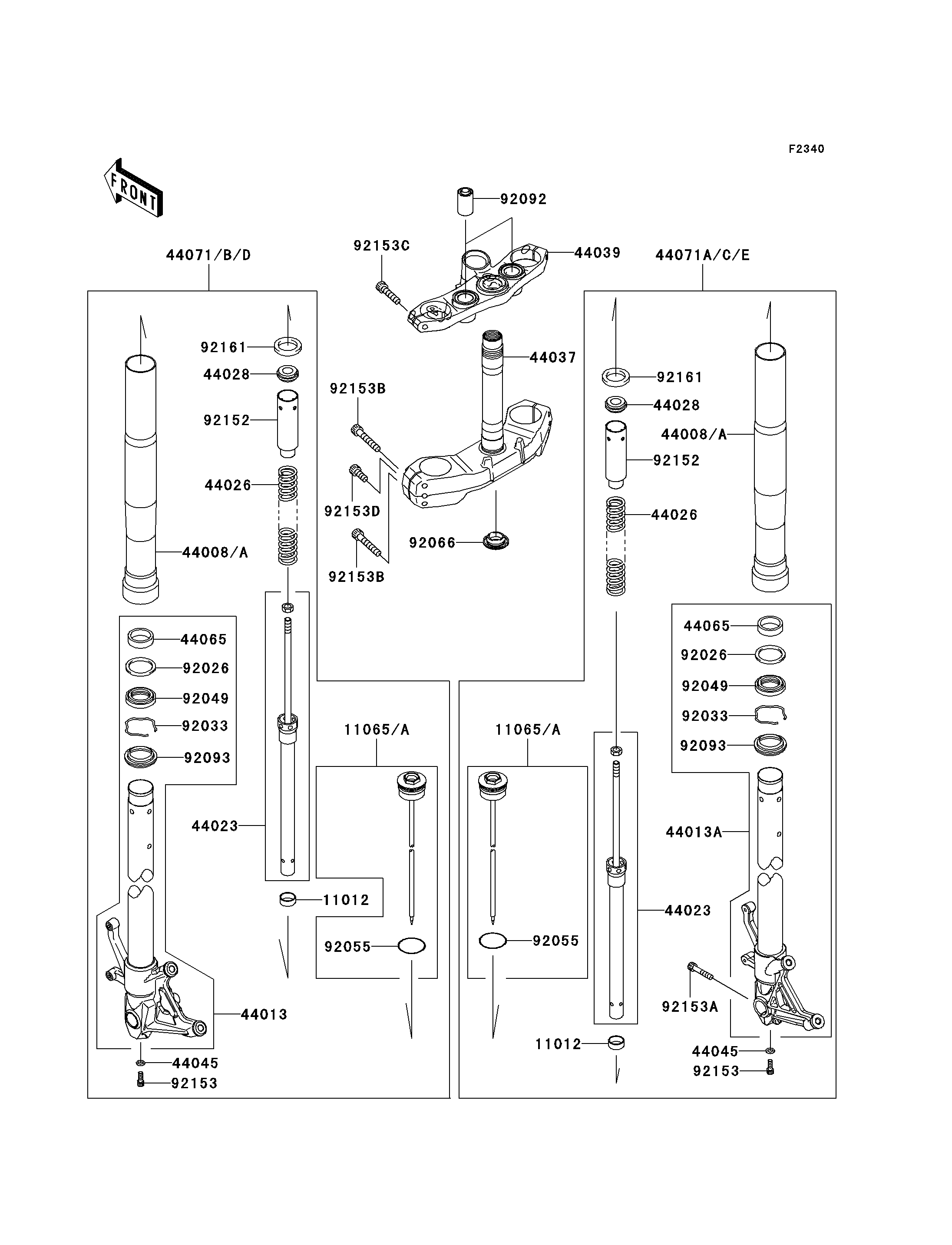

2007 Z1000 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065A
11065A
44008A
44008A
44013
44013A
44023
44023
44026
44026
44028
44028
44037
44039
44045
44045
44065
44065
44071
44071A
44071B
44071C
92026
92026
92033
92033
92049
92049
92055
92055
92066
92092
92093
92093
92152
92152
92153
92153
92153A
92153B
92153B
92153C
92153D
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1761 2
CAP,FORK BOLT COMP,GOLD 11065A 11065-0172-828 2
PIPE-FORK OUTER,GOLD 44008A 44008-0026-828 2
PIPE-FORK INNER,LH,F.P.SILVER 44013 44013-0066-10T 1
PIPE-FORK INNER,RH,F.P.SILVER 44013A 44013-0067-10T 1
CYLINDER-SET-FORK 44023 44023-0059 2
SPRING-FRONT FORK 44026 44026-0098 2
GUIDE-FORK SPRING 44028 44028-1083 2
HOLDER-FORK UNDER,F.S.BLACK 44037 44037-0058-11E 1
HOLDER-FORK UPPER,F.S.BLACK 44039 44039-0055-11E 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,GUIDE 44065 44065-0001 2
DAMPER-ASSY,FORK,LH,GOLD 44071 44071-5048 1
DAMPER-ASSY,FORK,RH,GOLD 44071A 44071-5049 1
DAMPER-ASSY,FORK,LH,SILVER 44071B 44071-5050 1
DAMPER-ASSY,FORK,RH,SILVER 44071C 44071-5051 1
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0058 2
RING-O 92055 92055-0142 2
PLUG 92066 92066-0032 1
BUSHING-RUBBER 92092 92092-1090 2
SEAL,DUST 92093 92093-0035 2
COLLAR 92152 92152-0263 2
BOLT,SOCKET,8X22 92153 92153-0028 2
BOLT 92153A 92153-0533 1
BOLT,SOCKET 92153B 92153-0537 4
BOLT 92153C 92153-0855 2
BOLT,SOCKET 92153D 92153-1824 2
DAMPER 92161 92161-0418 2
