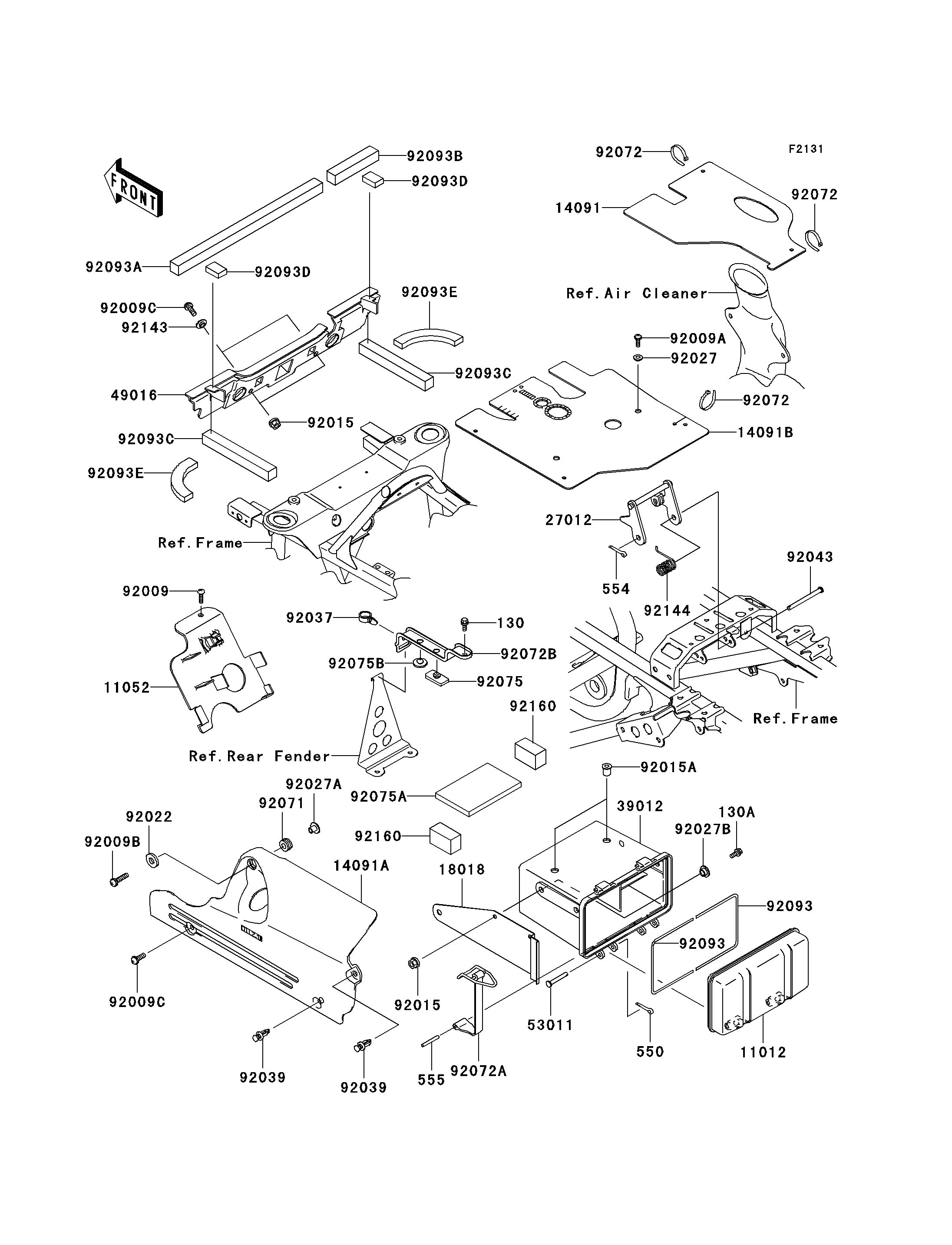

2003 Prairie 360 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130
11012
11012
11052
11052
14091
14091
14091A
14091A
14091B
14091B
18018
18018
27012
27012
39012
39012
49016
49016
53011
53011
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92009C
92009C
92015
92015
92015
92015
92015A
92015A
92022
92022
92027
92027
92027A
92027A
92027B
92027B
92037
92037
92039
92039
92039
92039
92043
92043
92071
92071
92072
92072
92072
92072
92072
92072
92072A
92072A
92072B
92072B
92075
92075
92075A
92075A
92075B
92075B
92093
92093
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92093C
92093C
92093D
92093D
92093D
92093D
92093E
92093E
92093E
92093E
92143
92143
92144
92144
92160
92160
92160
92160
130A
130A
550
550
554
554
555
555
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130J0614 1
CAP,STORAGE CASE 11012 11012-1951 1
BRACKET,ELECTRIC BASE 11052 11052-7529 1
COVER,CARBURETOR 14091 14091-7516 1
COVER,ENGINE,F.BLACK 14091A 14091-7524-6Z 1
COVER,CYLINDER HEAD BRACKET 14091B 14091-7526 1
PLATE-HEAT GUARD 18018 18018-7501 1
HOOK,SEAT 27012 27012-1381 1
CASE-STORAGE 39012 39012-7501 1
COVER-SEAL 49016 49016-1221 1
PIN,6X39 53011 53011-006 2
SCREW,TAPPING,6X16 92009 92009-1166 1
SCREW,TAPPING,5X10 92009A 92009-1332 2
SCREW,6X25 92009B 92009-1465 1
SCREW,6X16 92009C 92009-1621 3
NUT,FLANGED,6MM,BLACK 92015 92015-1233 6
NUT 92015A 92015-1700 2
WASHER,7X18X1.2 92022 92022-1545 1
COLLAR,L=4.6 92027 92027-1168 2
COLLAR,FLANGED,L=12.1,BLACK 92027A 92027-1651 1
COLLAR,L=5.6 92027B 92027-1933 4
CLAMP,HOSE 92037 92037-1827 1
RIVET 92039 92039-1229 2
PIN,6X77 92043 92043-1367 1
GROMMET 92071 92071-3716 1
BAND,L=188 92072 92072-1239 6
BAND,STORAGE CASE 92072A 92072-1337 2
BAND,BATTERY 92072B 92072-7501 1
DAMPER 92075 92075-1054 1
DAMPER,BATTERY 92075A 92075-1997 1
DAMPER,RUBBER 92075B 92075-261 1
SEAL 92093 92093-1457 2
SEAL 92093A 92093-1577 1
SEAL 92093B 92093-1578 1
SEAL 92093C 92093-1580 2
SEAL 92093D 92093-1581 2
SEAL 92093E 92093-1582 2
COLLAR 92143 92143-1087 2
SPRING,SEAT HOOK 92144 92144-1174 1
DAMPER 92160 92160-1744 2
BOLT-FLANGED,6X16 130A 130J0616 4
PIN-COTTER,2.0X12 550 550D2012 2
PIN-SNAP 554 554A0600 1
PIN-SPRING 555 555A0436 2
