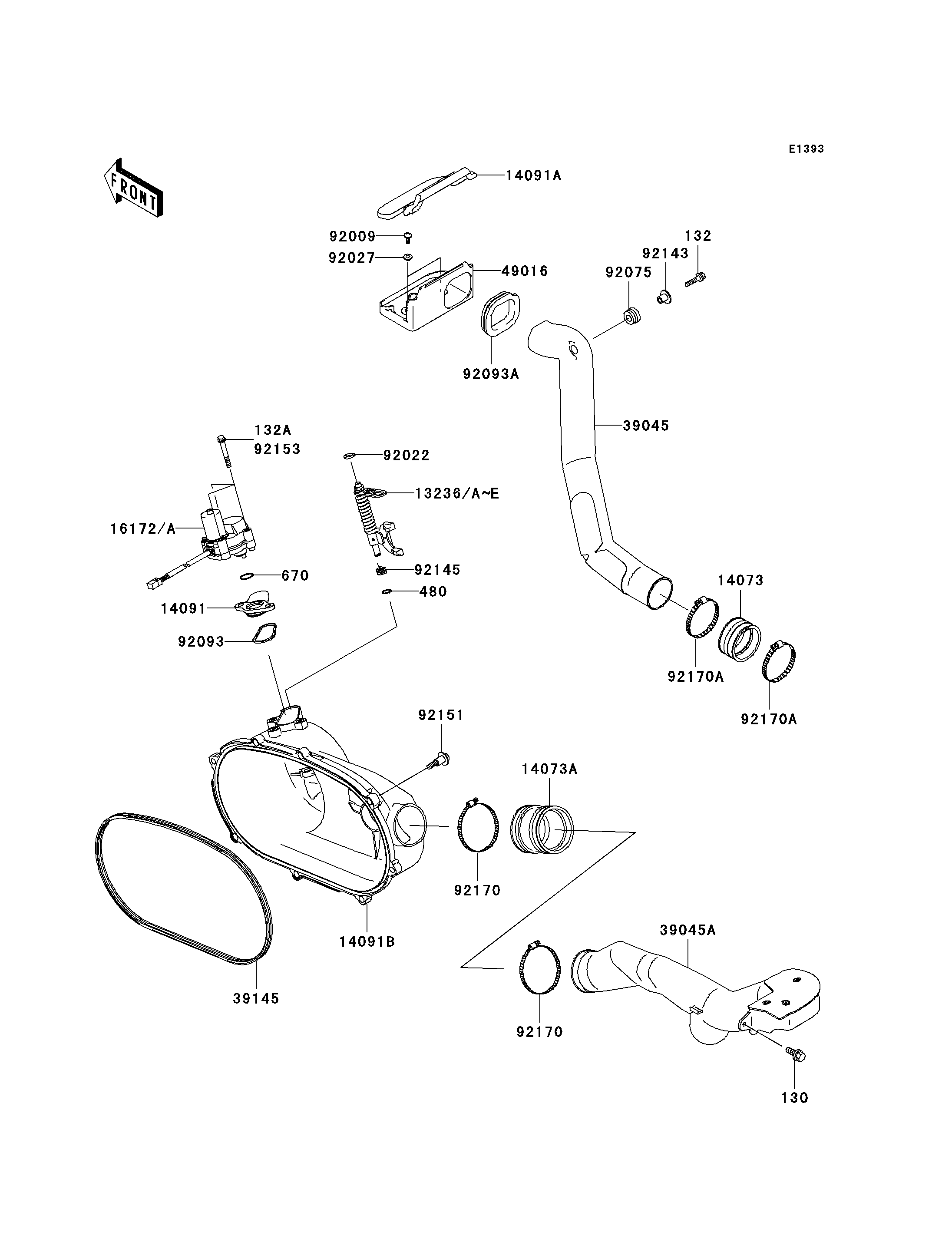

2003 Prairie 360 - Converter Cover/Drive Belt

DOWNLOAD PDF
SELECT A NEW PART
130
132
132A
480
670
13236C
13236D
13236E
14073
14073A
14091
14091A
14091B
16172A
39045
39045A
39145
49016
92009
92022
92027
92075
92093
92093A
92143
92145
92151
92170
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130G0614 1
BOLT-FLANGED-SMALL 132 132G0625 1
BOLT-FLANGED-SMALL 132A 132J0650 3
CIRCLIP-TYPE-C,10MM 480 480J1000 1
O RING 670 670D3022 1
LEVER-COMP,YELLOW 13236C 13236-1385 AR
LEVER-COMP,GREEN 13236D 13236-1386 AR
LEVER-COMP,PAINT LESS 13236E 13236-1387 1
DUCT,AIR FILTER JOINT 14073 14073-1775 1
DUCT,JOINT ENGINE COVER 14073A 14073-1805 1
COVER,ENGINE BRAKE 14091 14091-1421 1
COVER,MUDGUARD 14091A 14091-1500 1
COVER,CVT 14091B 14091-1510 1
ACTUATOR 16172A 16172-1063 1
DUCT-ASSY,SNORKEL,IN 39045 39045-1067 1
DUCT-ASSY,SNORKEL,EX 39045A 39045-1068 1
TRIM-SEAL 39145 39145-1135 1
COVER-SEAL,BELT CONVERTER 49016 49016-1218 1
SCREW,TAPPING,5X14 92009 92009-1197 2
WASHER,10.2X16X1 92022 92022-1829 1
COLLAR,L=4.6 92027 92027-1168 2
DAMPER,RUBBER 92075 92075-1123 1
SEAL 92093 92093-1548 1
SEAL,COVER MUDGUARD 92093A 92093-1572 1
COLLAR 92143 92143-1353 1
SPRING 92145 92145-1567 1
BOLT 92151 92151-1686 8
CLAMP 92170 92170-1763 2
CLAMP 92170A 92170-1764 2
