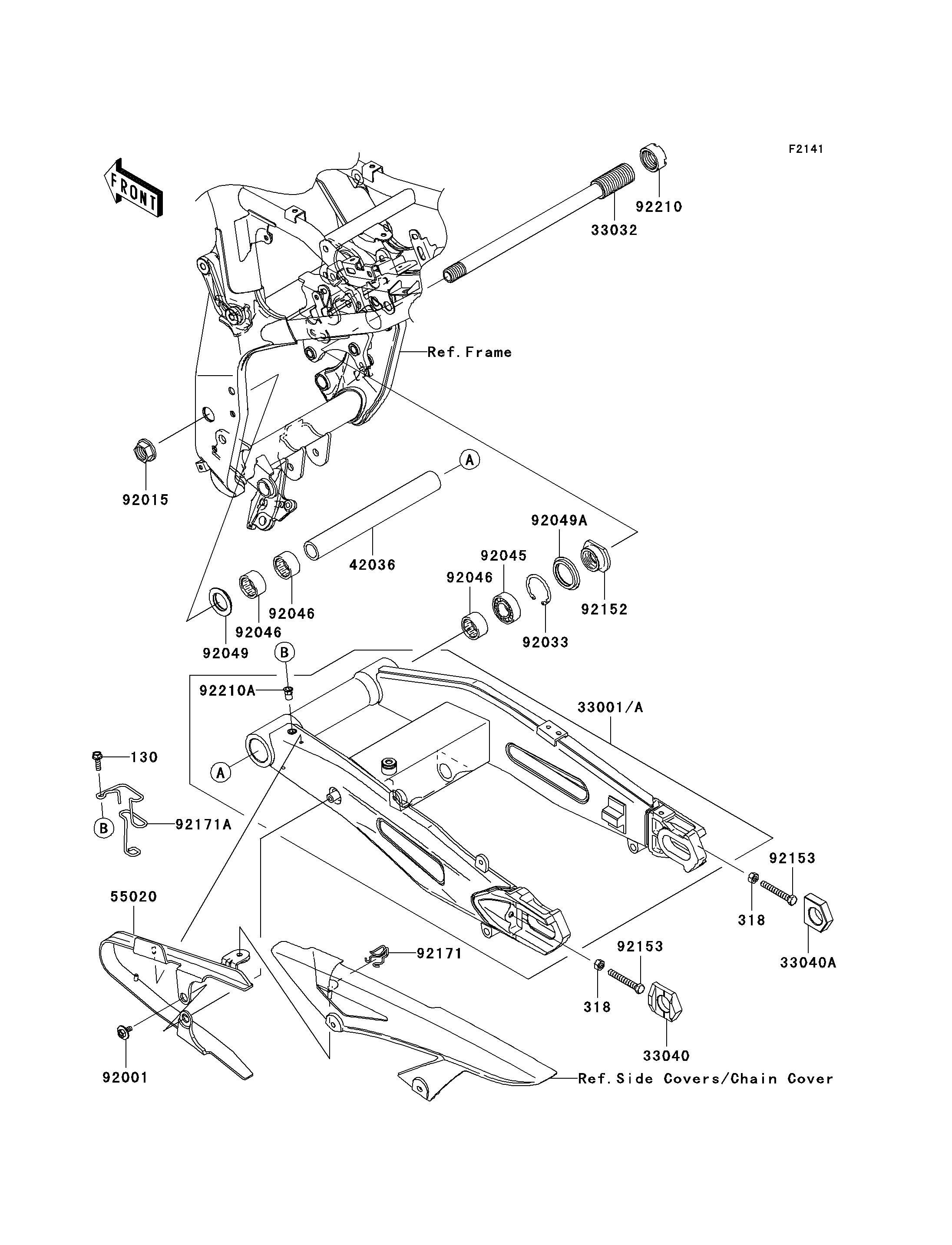

2007 Z1000 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
318
318
33001
33032
33040
33040A
42036
55020
92001
92015
92033
92045
92046
92046
92046
92049
92049A
92152
92153
92153
92171
92171A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130AA0620 1
NUT-HEX-SMALL,8MM 318 318BA0800 2
ARM-COMP-SWING,F.S.BLACK 33001 33001-0129-11E 1
SHAFT-SWING ARM 33032 33032-0005 1
ADJUSTER-CHAIN,LH 33040 33040-0017 1
ADJUSTER-CHAIN,RH 33040A 33040-0018 1
SLEEVE,SWING ARM,L=237 42036 42036-1264 1
GUARD,CHAIN 55020 55020-0330 1
BOLT,6X12 92001 92001-1771 1
NUT,FLANGED,20MM 92015 92015-1724 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL 92049 92049-1181 1
SEAL-OIL,MHA 35 42 5.7F 92049A 92049-1380 1
COLLAR,SWING ARM PIVOT,RH 92152 92152-0136 1
BOLT,8X55 92153 92153-1407 2
CLAMP 92171 92171-0907 1
CLAMP,DRAIN HOSE 92171A 92171-0967 1
NUT,28X1.0 92210 92210-1347 1
NUT,POP,6MM,L=15 92210A 92210-1397 1
