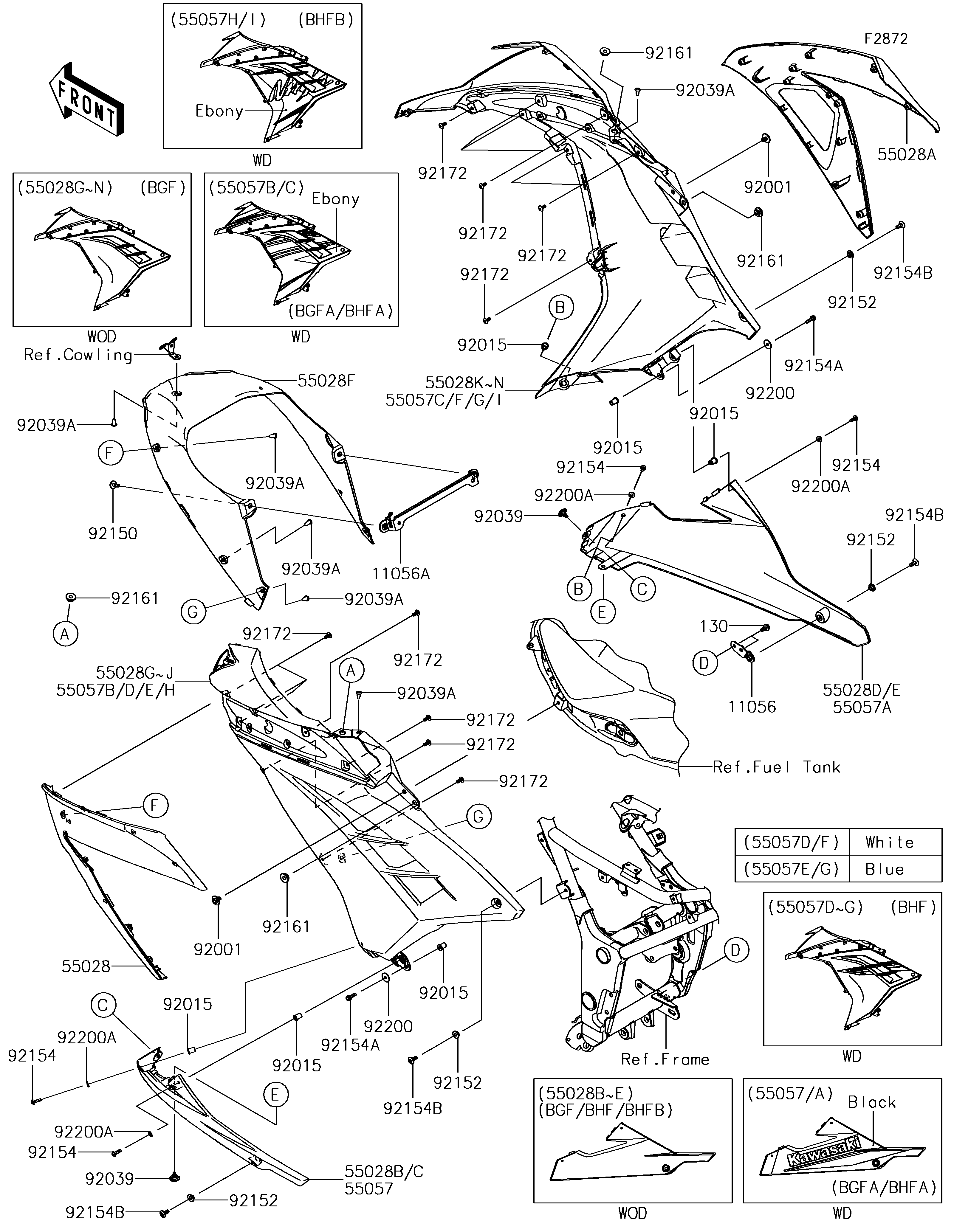

Parts Diagrams |
11056
11056
11056A
11056A
55028
55028
55028A
55028A
55028B
55028B
55028D
55028D
55028F
55028F
55057D
55057D
55057E
55057E
55057F
55057F
55057G
55057G
92001
92001
92001
92001
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92150
92150
92152
92152
92152
92152
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
130
130
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWL.,RH | 11056 | 11056-1641 | 1 | ||
| BRACKET,RADIATOR | 11056A | 11056-1909 | 1 | ||
| COWLING,SIDE,LH | 55028 | 55028-0418 | 1 | ||
| COWLING,SIDE,RH | 55028A | 55028-0419 | 1 | ||
| COWLING,LWR,LH,F.S.BLACK | 55028B | 55028-0420-18T | 1 | ||
| COWLING,LWR,RH,F.S.BLACK | 55028D | 55028-0421-18T | 1 | ||
| COWLING,FR,INNER | 55028F | 55028-0422 | 1 | ||
| COWLING,CNT,LH,P.B.WHITE | 55057D | 55057-5243-54X | 1 | ||
| COWLING,CNT,LH,C.P.BLUE | 55057E | 55057-5244-723 | 1 | CA,US | |
| COWLING,CNT,RH,P.B.WHITE | 55057F | 55057-5245-54X | 1 | ||
| COWLING,CNT,RH,C.P.BLUE | 55057G | 55057-5246-723 | 1 | CA,US | |
| BOLT,6X12 | 92001 | 92001-1771 | 2 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 6 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 2 | ||
| RIVET | 92039A | 92039-0709 | 9 | ||
| BOLT,6X16 | 92150 | 92150-1198 | 2 | ||
| COLLAR,6.5X10X5.6 | 92152 | 92152-0445 | 4 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0182 | 4 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 2 | ||
| BOLT,FLANGED,5X18 | 92154A | 92154-0785 | 2 | ||
| BOLT,SOCKET,6X14 | 92154B | 92154-0932 | 4 | ||
| DAMPER | 92161 | 92161-1531 | 4 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 14 | ||
| WASHER,5.5X20X1.2 | 92200 | 92200-0284 | 2 | ||
| WASHER,5.2X12X1.0 | 92200A | 92200-0784 | 4 |
| BRACKET,LWR COWL.,RH | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RADIATOR | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LH | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,RH | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,F.S.BLACK | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,F.S.BLACK | |
| REF # | 55028D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FR,INNER | |
| REF # | 55028F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,P.B.WHITE | |
| REF # | 55057D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,LH,C.P.BLUE | |
| REF # | 55057E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| COWLING,CNT,RH,P.B.WHITE | |
| REF # | 55057F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,CNT,RH,C.P.BLUE | |
| REF # | 55057G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| RIVET,HOLE 8MM | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039A |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X5.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,5X18 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.5X20X1.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X12X1.0 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
