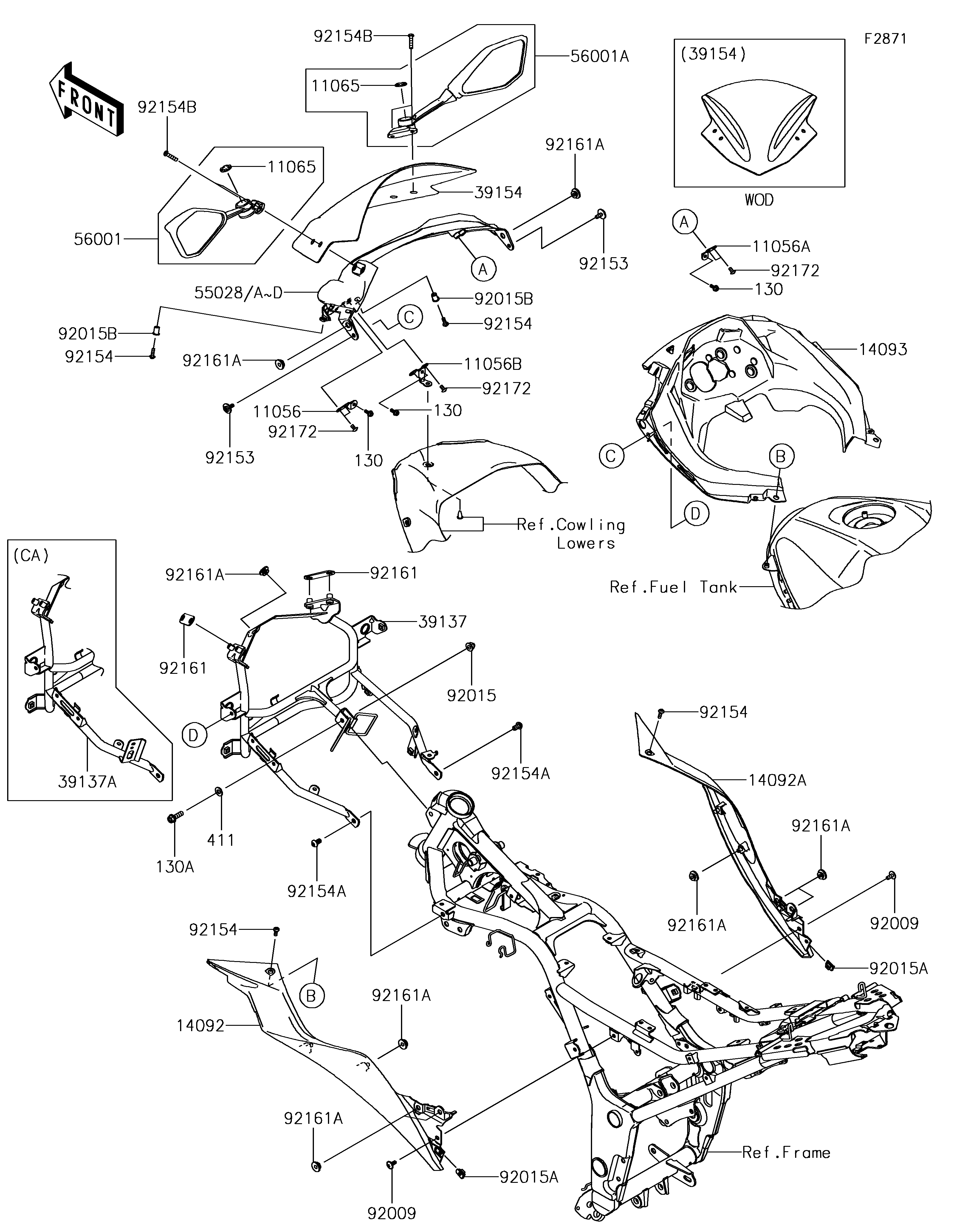

2016 Ninja 300 ABS KRT Edition - Cowling(BGF-BHFA)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
11065
11065
130
130
130
130A
14092
14092A
14093
39137
39137A
39154
411
55028C
56001
56001A
92009
92009
92015
92015A
92015A
92015B
92015B
92153
92153
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWL. STAY,LH 11056 11056-1608 1
BRACKET,COWL. STAY,RH 11056A 11056-1610 1
BRACKET,COWL. STAY 11056B 11056-1611 1
CAP,MIRROR 11065 11065-0945 2
BOLT-FLANGED,5X12 130 130BA0512 3
BOLT-FLANGED,8X25 130A 130BB0825 1
COVER,TANK,LH 14092 14092-0922 1
COVER,TANK,RH 14092A 14092-0923 1
COVER,METER 14093 14093-0249 1
STAY-COMP,COWLING,F.S.BLACK 39137 39137-0565-18R 1 CN,US
STAY-COMP,COWLING,F.S.BLACK 39137A 39137-0566-18R 1 CA
WINDSHIELD 39154 39154-0318 1
WASHER-PLAIN,8.5X18X1.6 411 411AB0800 1
COWLING,UPP,L.GREEN 55028C 55028-0496-777 1 _________________________________________CA,US
MIRROR-ASSY,LH 56001 56001-0239 1
MIRROR-ASSY,RH 56001A 56001-0240 1
SCREW,6X14 92009 92009-1662 2
NUT,CAP,8MM,BLACK 92015 92015-1174 1
NUT,5MM 92015A 92015-1627 2
NUT,WELL,5MM 92015B 92015-1757 2
BOLT,6X16 92153 92153-1423 2
BOLT,SOCKET,5X16 92154 92154-0182 4
BOLT,SOCKET,8X14 92154A 92154-1032 2
BOLT,SOCKET,6X25 92154B 92154-1142 4
DAMPER 92161 92161-1467 2
DAMPER 92161A 92161-1531 9
SCREW,TAPPING,5X10 92172 92172-0262 6
