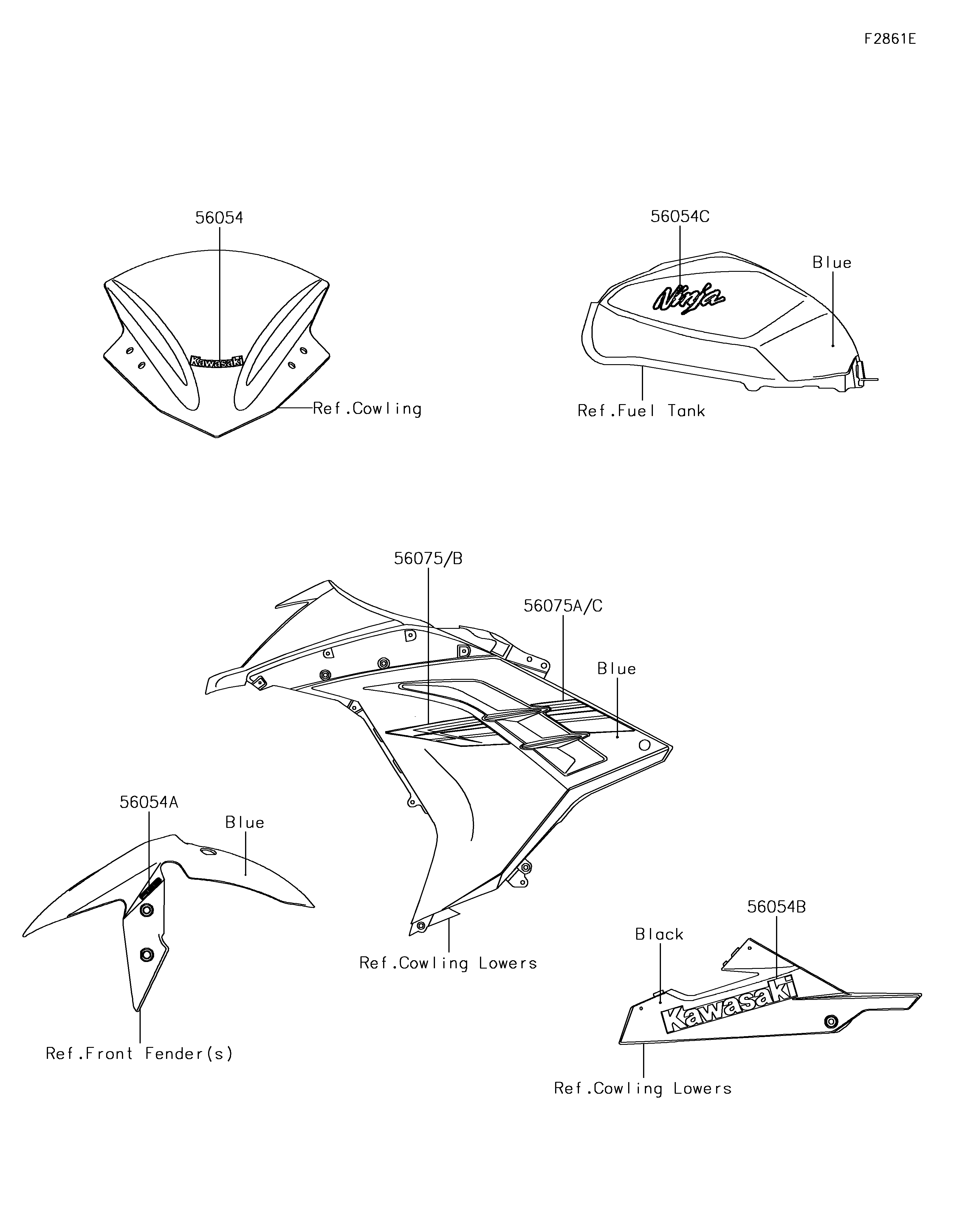

2017 Ninja 300 ABS - Decals(Blue)(BHF)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-1088 | 1 | CA,US | |
| MARK,FR FENDER,ABS | 56054A | 56054-1412 | 2 | CA,US | |
| MARK,LWR COWL.,KAWASAKI | 56054B | 56054-1590 | 2 | CA,US | |
| MARK,FUEL TANK,NINJA | 56054C | 56054-2093 | 2 | CA,US | |
| PATTERN,SIDE COWL.,LH,UPP | 56075 | 56075-2223 | 1 | CA,US | |
| PATTERN,SIDE COWL.,LH,LWR | 56075A | 56075-2224 | 1 | CA,US | |
| PATTERN,SIDE COWL.,RH,UPP | 56075B | 56075-2225 | 1 | CA,US | |
| PATTERN,SIDE COWL.,RH,LWR | 56075C | 56075-2226 | 1 | CA,US |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FR FENDER,ABS | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,LWR COWL.,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
