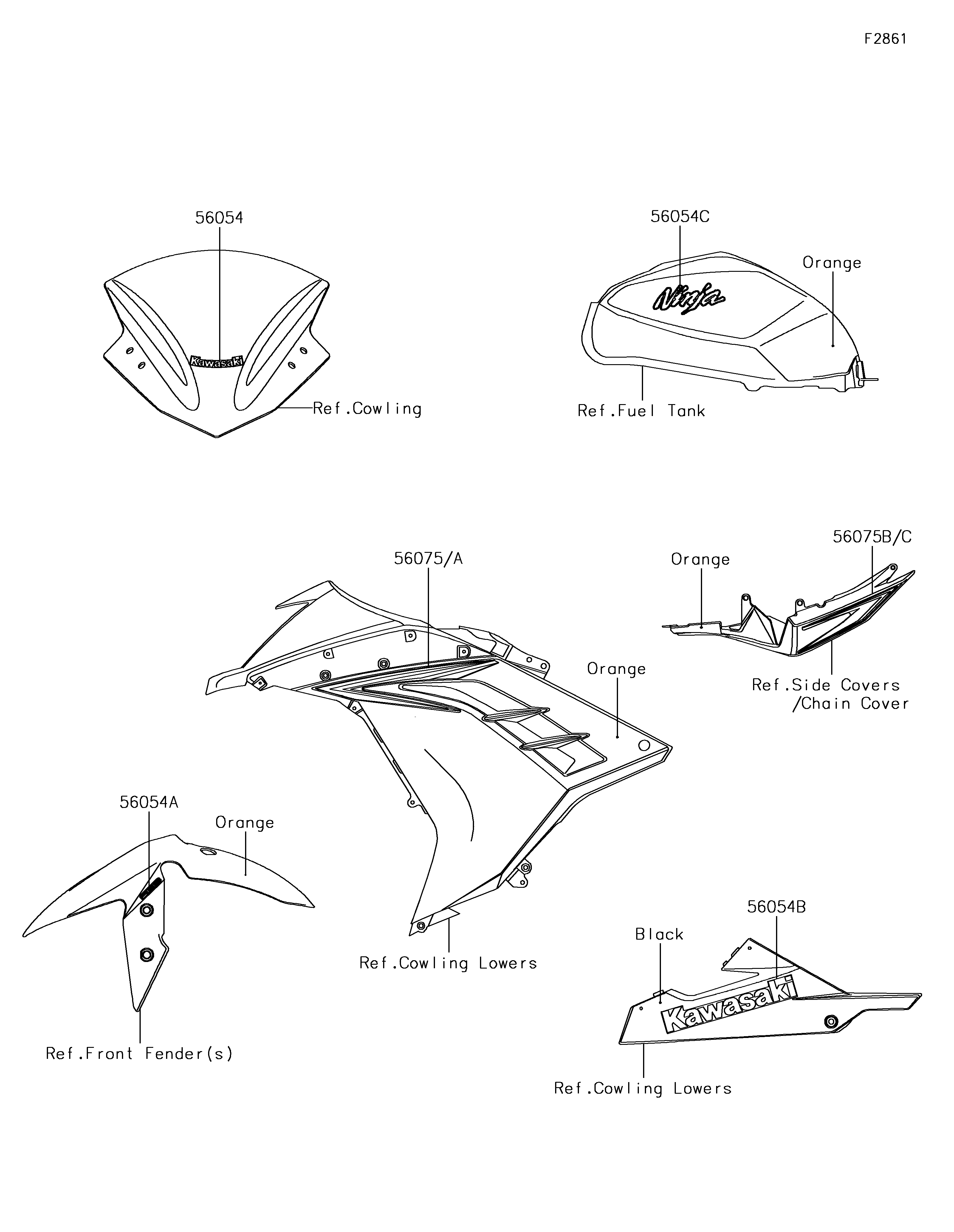

2016 Ninja 300 ABS - Decals(Orange)(BGF)(CN)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-1088 | 1 | CN | |
| MARK,FR FENDER,ABS | 56054A | 56054-1412 | 2 | CN | |
| MARK,LWR COWL.,KAWASAKI | 56054B | 56054-1590 | 2 | CN | |
| MARK,FUEL TANK,NINJA | 56054C | 56054-1896 | 2 | CN | |
| PATTERN,SIDE COWL.,LH | 56075 | 56075-1108 | 1 | CN | |
| PATTERN,SIDE COWL.,RH | 56075A | 56075-1109 | 1 | CN | |
| PATTERN,SEAT COVER,LH | 56075B | 56075-1110 | 1 | CN | |
| PATTERN,SEAT COVER,RH | 56075C | 56075-1111 | 1 | CN |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FR FENDER,ABS | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,LWR COWL.,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COWL.,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SIDE COWL.,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
