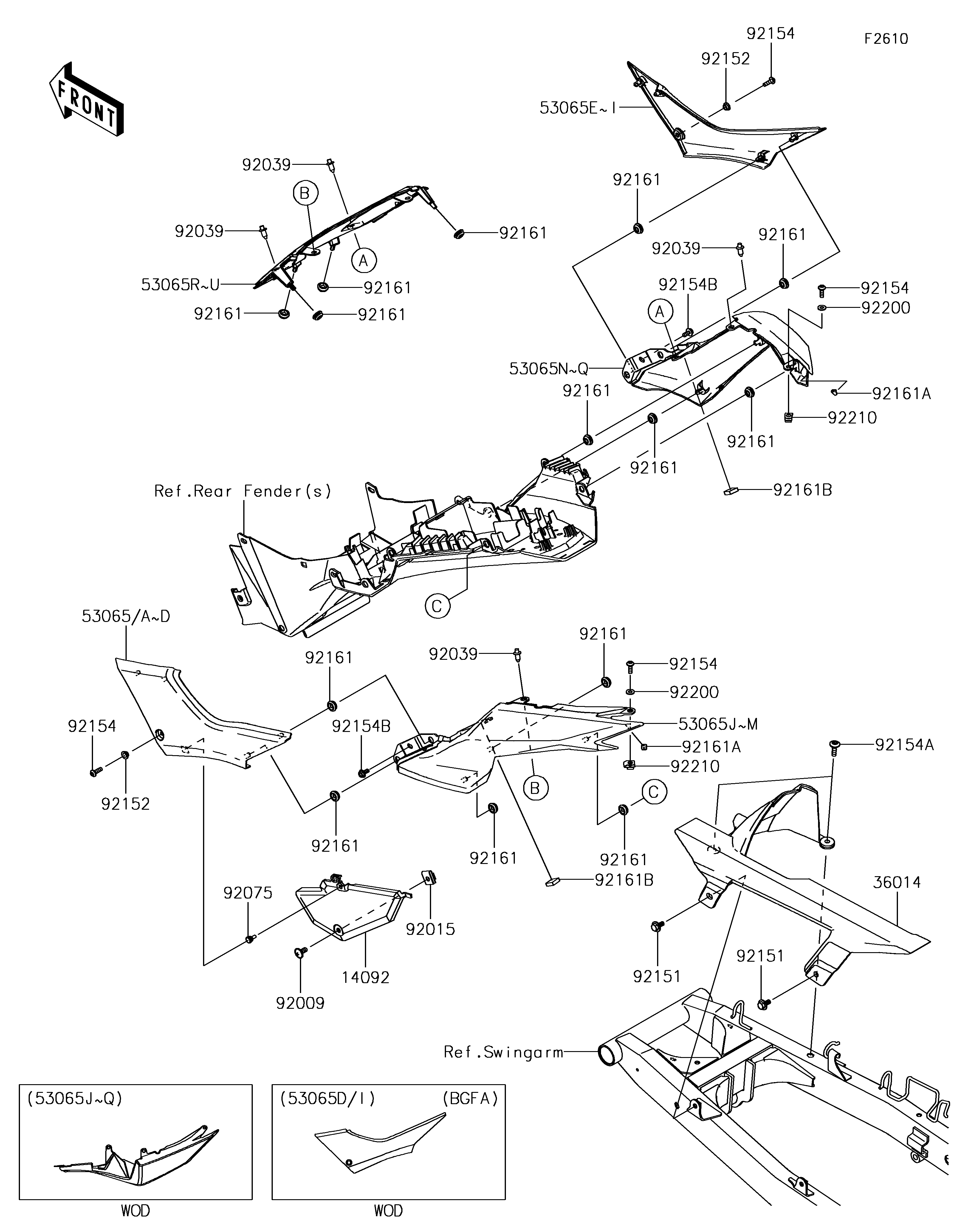

2016 Ninja 300 ABS KRT Edition - Side Covers/Chain Cover(BGF/BGFA)

DOWNLOAD PDF
SELECT A NEW PART
14092
14092
36014
36014
53065D
53065D
53065I
53065I
53065M
53065M
53065Q
53065Q
53065U
53065U
92009
92009
92015
92015
92039
92039
92039
92039
92039
92039
92039
92039
92075
92075
92151
92151
92151
92151
92152
92152
92152
92152
92154
92154
92154
92154
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,FILTER CAP 14092 14092-0954 1
CASE-CHAIN 36014 36014-0555 1
COVER SEAT,SIDE,LH,EBONY 53065D 53065-0026-H8 1
COVER SEAT,SIDE,RH,EBONY 53065I 53065-0027-H8 1
COVER SEAT,TAIL,LH,L.GREEN 53065M 53065-0060-777 1 _________________________________________CA,US
COVER SEAT,TAIL,RH,L.GREEN 53065Q 53065-0061-777 1 _________________________________________CA,US
COVER SEAT,CNT,L.GREEN 53065U 53065-0062-777 1 _________________________________________CA,US
SCREW,6X14 92009 92009-1662 1
NUT,CLAMP,6MM 92015 92015-1531 1
RIVET 92039 92039-0709 4
DAMPER,6X10X15 92075 92075-1808 1
BOLT,FLANGED,6X13 92151 92151-1703 2
COLLAR,5.8X8.2X4.7 92152 92152-2178 2
BOLT,SOCKET,5X16 92154 92154-0182 4
BOLT,SOCKET,6X20 92154A 92154-0918 2
BOLT,FLANGED,5X12 92154B 92154-1003 2
DAMPER 92161 92161-0631 14
DAMPER 92161A 92161-1459 2
DAMPER,15X15X5 92161B 92161-1522 2
WASHER,5.2X12X1.0 92200 92200-0784 2
NUT,5MM 92210 92210-0817 2
