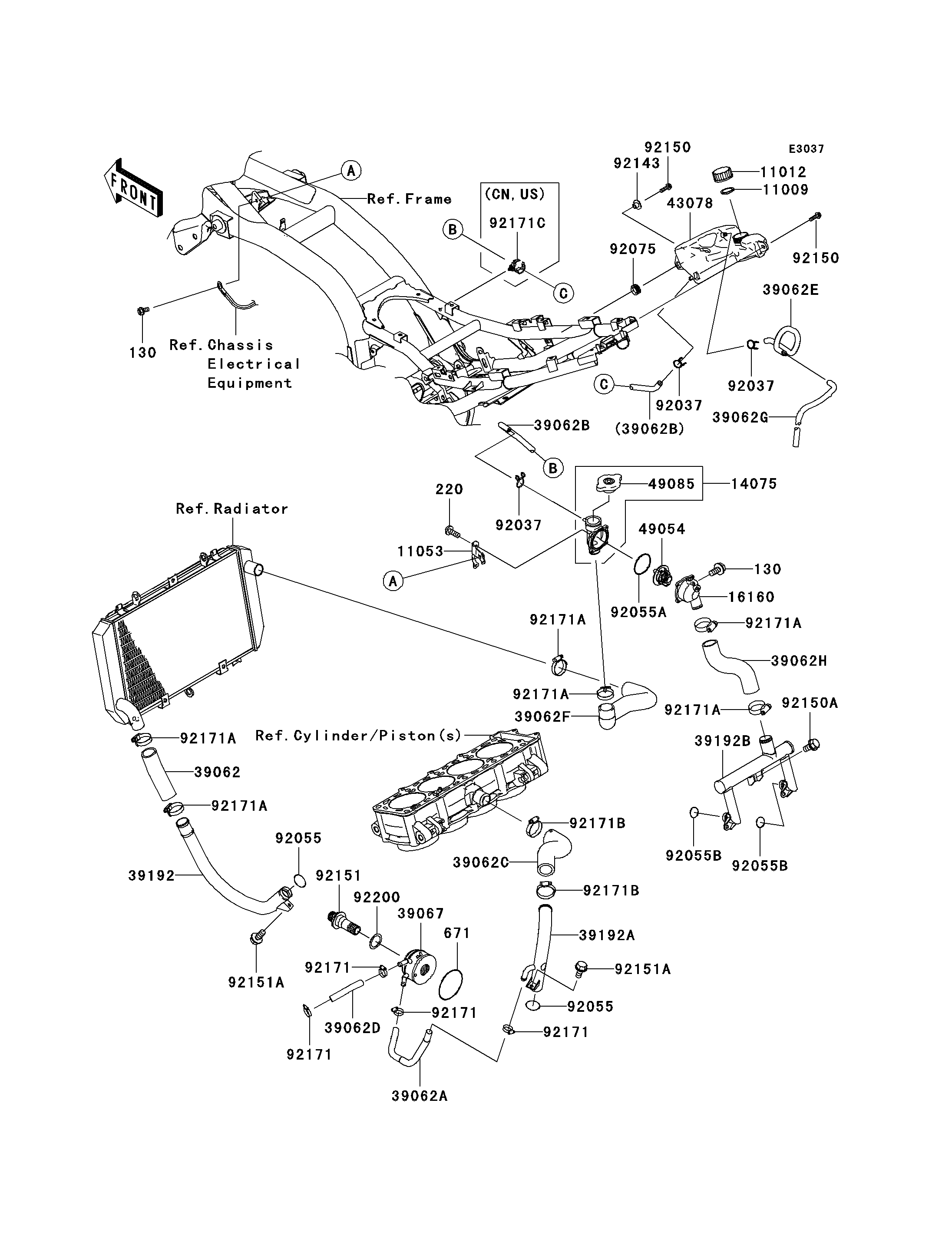

2007 Z1000 - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130
220
220
11009
11009
11012
11012
11053
11053
14075
14075
16160
16160
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
39062F
39062F
39062G
39062G
39062H
39062H
39067
39067
39192
39192
39192A
39192A
39192B
39192B
43078
43078
49054
49054
49085
49085
92037
92037
92037
92037
92037
92037
92055
92055
92055
92055
92055A
92055A
92055B
92055B
92055B
92055B
92075
92075
92143
92143
92150
92150
92150
92150
92150A
92150A
92151
92151
92151A
92151A
92151A
92151A
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171B
92171B
92171B
92171B
92200
92200
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130J0612 2
SCREW-PAN-CROS,5X14 220 220D0514 4
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
BRACKET,THERMOSTAT 11053 11053-1070 1
CAP-ASSY 14075 14075-0001 1
BODY,LWR 16160 16160-0039 1
HOSE-COOLING,RAD-PIPE 39062 39062-0190 1
HOSE-COOLING,PIPE-OIL COOLER 39062A 39062-0205 1
HOSE-COOLING,RESERVOIR 39062B 39062-0207 1
HOSE-COOLING,PUMP-CYLINDER 39062C 39062-0208 1
HOSE-COOLING,9X15X105 39062D 39062-0211 1
HOSE-COOLING,OVER FLOW 39062E 39062-0213 1
HOSE-COOLING,THERMO-RAD 39062F 39062-0234 1
HOSE-COOLING 39062G 39062-1226 1
HOSE-COOLING,HEAD-THERMO 39062H 39062-1916 1
COOLER-OIL 39067 39067-0012 1
PIPE-WATER 39192 39192-0046 1
PIPE-WATER 39192A 39192-0069 1
PIPE-WATER 39192B 39192-1151 1
RESERVOIR 43078 43078-0033 1
THERMOSTAT 49054 49054-1067 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
CLAMP,TUBE 92037 92037-147 3
RING-O,20.8X2.4 92055 92055-0114 2
RING-O,53.5X2.6 92055A 92055-112 1
RING-O,18.54X2.6 92055B 92055-1350 2
DAMPER 92075 92075-1634 1
COLLAR 92143 92143-1962 1
BOLT,FLANGED,6X20 92150 92150-1633 2
BOLT,FLANGED-SMALL,6X12 92150A 92150-1841 3
BOLT,OIL COOLER 92151 92151-1366 1
BOLT,6X12 92151A 92151-1997 2
CLAMP,COOLING HOSE 92171 92171-0142 4
CLAMP 92171A 92171-0179 6
CLAMP 92171B 92171-0180 2
WASHER,OIL COOLER 92200 92200-1379 1
O RING,65MM 671 671B2565 1
CLAMP 92171C 92171-0864 1 CNUS
