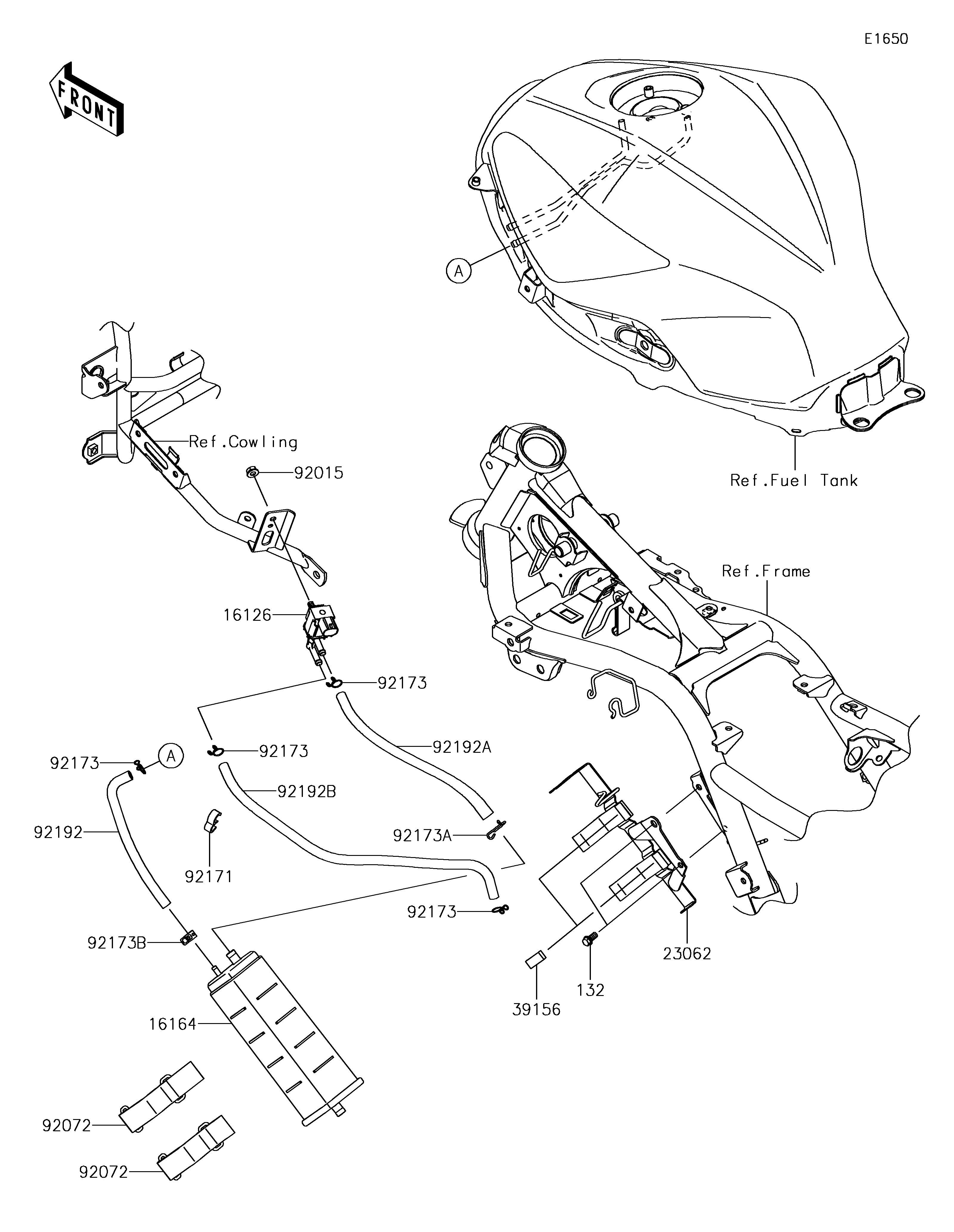

2016 Ninja 300 ABS KRT Edition - Fuel Evaporative System(CA)
132
16126
16164
23062
39156
92015
92072
92072
92171
92173
92173
92173
92173
92173A
92173B
92192
92192A
92192B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 2 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| BRACKET-COMP,CANISTER | 23062 | 23062-0742 | 1 | CA | |
| PAD,10X30X4 | 39156 | 39156-0927 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| BAND,L=90 | 92072 | 92072-0135 | 2 | CA | |
| CLAMP | 92171 | 92171-1184 | 1 | CA | |
| CLAMP | 92173 | 92173-0050 | 4 | CA | |
| CLAMP,14MM | 92173A | 92173-0192 | 1 | CA | |
| CLAMP | 92173B | 92173-1143 | 1 | CA | |
| TUBE,TANK-CANISTER,BLUE | 92192 | 92192-1098 | 1 | CA | |
| TUBE,CANISTER-VALVE,GREEN | 92192A | 92192-1099 | 1 | CA | |
| TUBE,VALVE-THB,GREEN | 92192B | 92192-1101 | 1 | CA |
