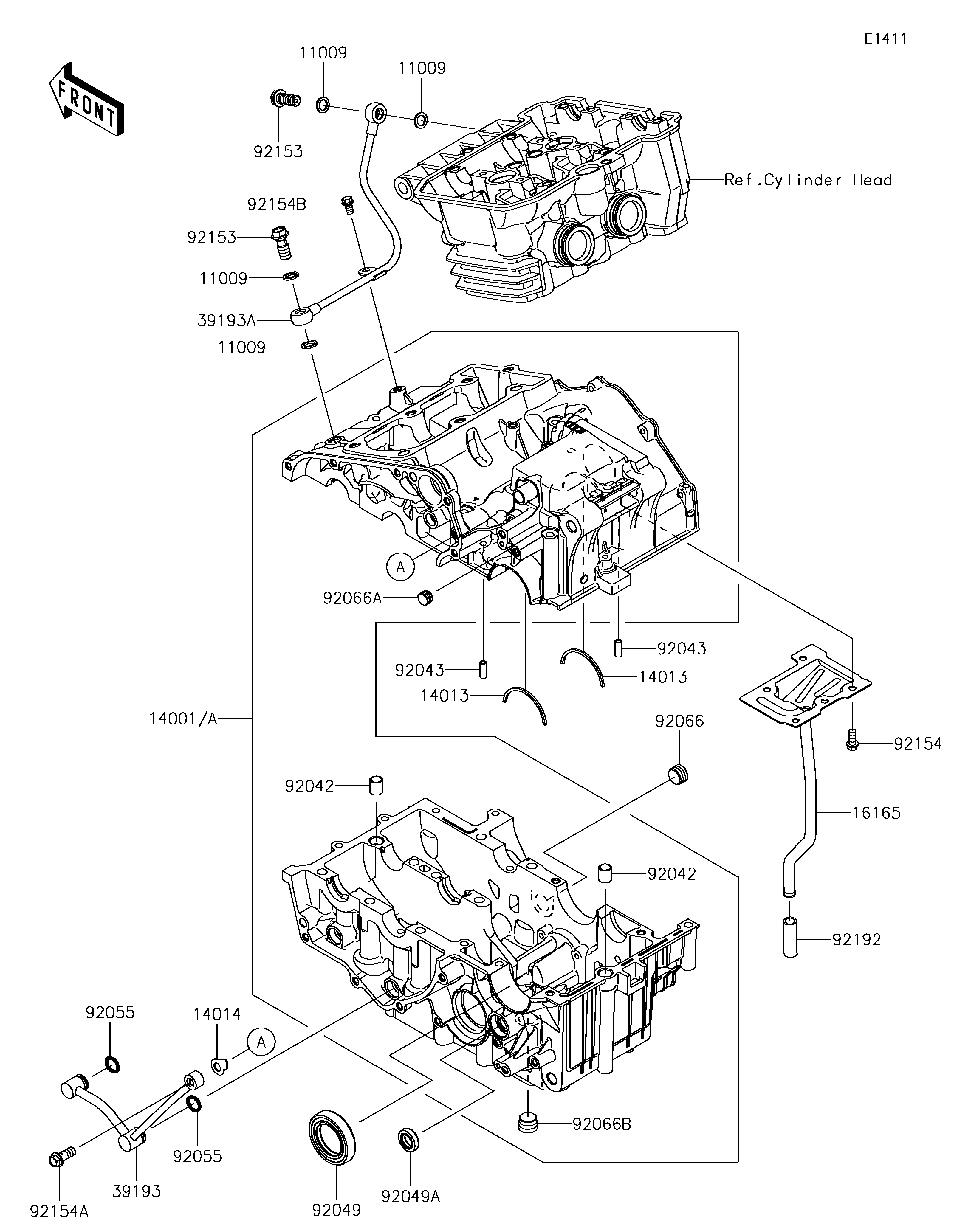

2016 Ninja 300 ABS KRT Edition - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
14001
14013
14013
14014
16165
39193
39193A
92042
92042
92043
92043
92049
92049A
92055
92055
92066
92066A
92066B
92153
92153
92154
92154A
92154B
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 4
SET-CRANKCASE 14001 14001-0610 1 ( - EX300AEA99329)
RING-POSITION 14013 14013-004 2
PLATE-POSITION 14014 14014-0565 1
SEPARATOR 16165 16165-0010 1
PIPE-OIL 39193 39193-0571 1
PIPE-OIL,CASE-HEAD 39193A 39193-0572 1
PIN,DOWEL,12X14 92042 92042-031 2
PIN,3.5X6X16 92043 92043-1309 2
SEAL-OIL,32X52X10 92049 92049-0731 1
SEAL-OIL 92049A 92049-1559 1
RING-O,11.8X2.4 92055 92055-0733 2
PLUG,PT3/8X10 92066 92066-0003 1
PLUG 92066A 92066-1110 1
PLUG,PT3/8X12 92066B 92066-1252 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,FLANGED,6X14 92154 92154-0777 5
BOLT,FLANGED,8X20 92154A 92154-0957 1
BOLT,FLANGED,6X10 92154B 92154-1065 1
TUBE,9X12X38 92192 92192-0225 1
