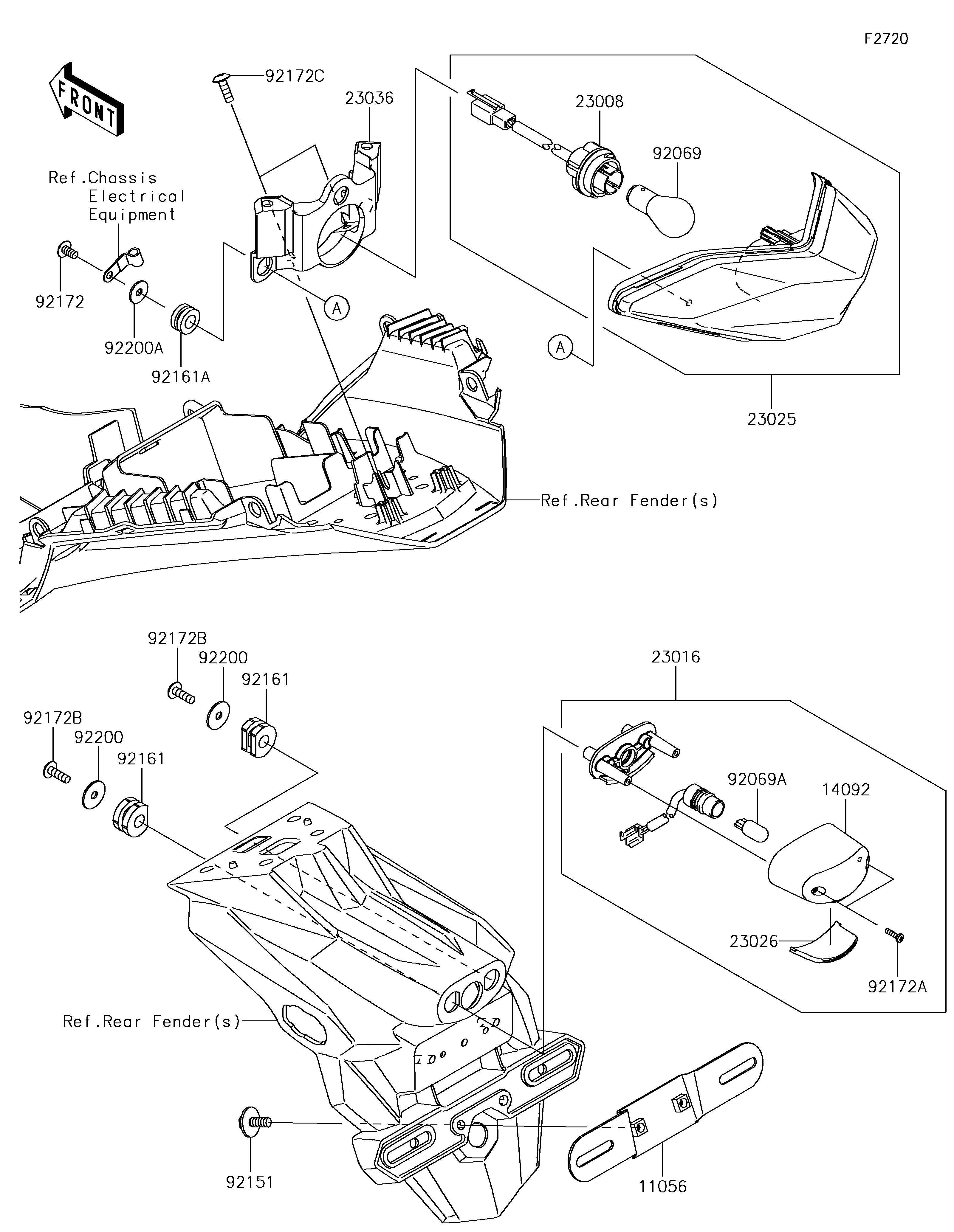

2017 Ninja 300 - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
14092
23008
23016
23025
23026
23036
92069
92069A
92151
92161
92161
92161A
92172
92172A
92172B
92172B
92172C
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LICENSE PLATE 11056 11056-0139 1
COVER,LICENSE LAMP 14092 14092-0001 1
SOCKET-ASSY 23008 23008-0138 1
LAMP-ASSY,LICENCE 23016 23016-0582 1
LAMP-TAIL 23025 23025-0350 1
LENS,LICENCE LAMP 23026 23026-0023 1
BRACKET-TAIL LAMP 23036 23036-0304 1
BULB,12V 21/5W 92069 92069-063 1
BULB,12V 5W 92069A 92069-1016 1
BOLT,6X25 92151 92151-1241 2
DAMPER 92161 92161-0776 2
DAMPER 92161A 92161-1462 3
SCREW,TAPPING,5X10 92172 92172-0262 3
SCREW,TAPPING,2.9X13 92172A 92172-0343 2
SCREW,TAPPING,5X16 92172B 92172-0427 2
SCREW,TAPPING,5X16 92172C 92172-0742 2
WASHER,5.5X20X1.2 92200 92200-0284 2
WASHER,5.2X16X1.2 92200A 92200-0583 3
