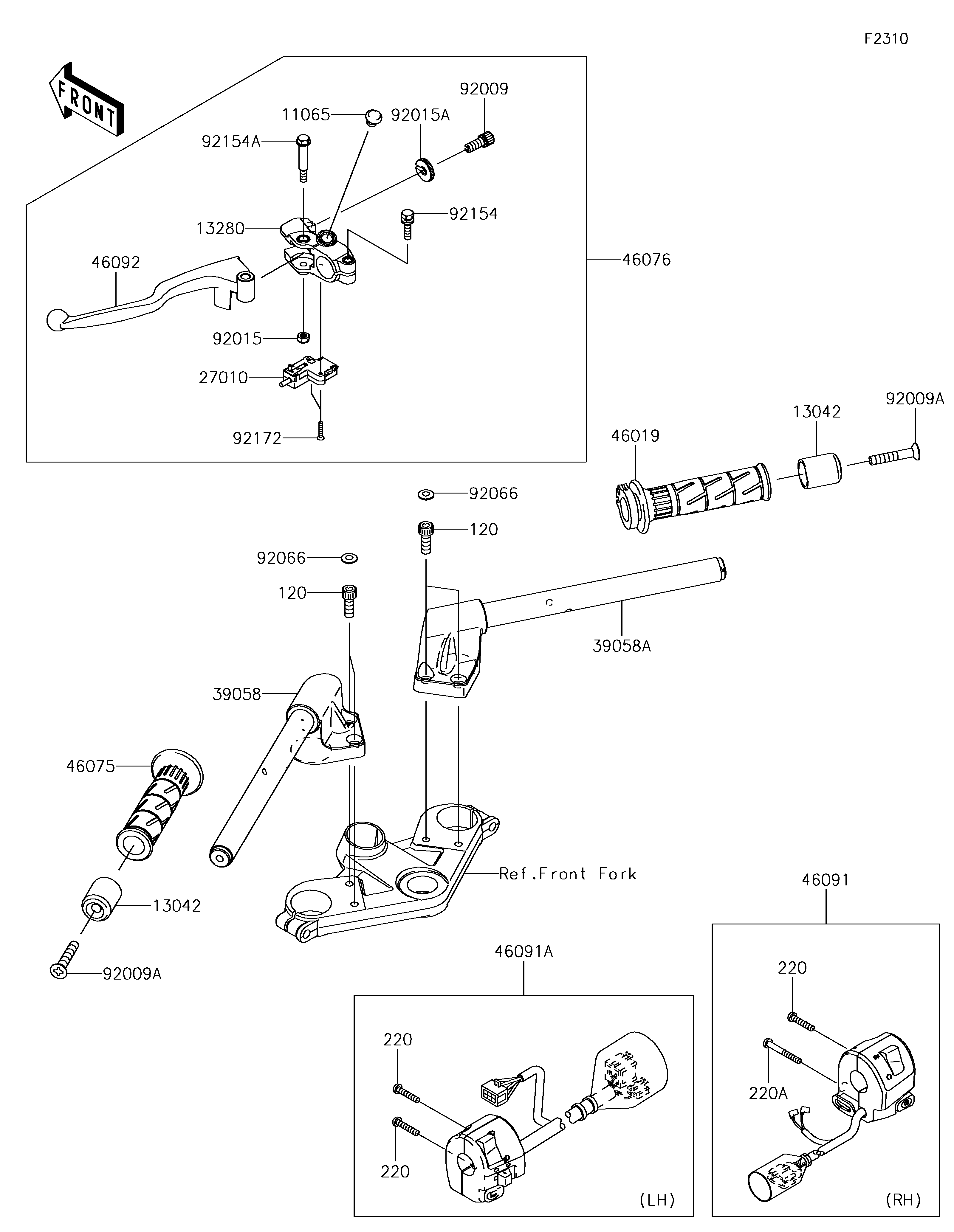

2017 Ninja 300 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
11065
120
120
13042
13042
13280
220
220
220
220A
27010
39058
39058A
46019
46075
46076
46091
46091A
46092
92009
92009A
92009A
92015
92015A
92066
92066
92154
92154A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,DUMMY 11065 11065-0921 1
BOLT-SOCKET,8X22 120 120CB0822 4
WEIGHT,HANDLE 13042 13042-0032 2
HOLDER,CLUTCH LEVER 13280 13280-0847 1
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROS,5X40 220A 220AB0540 1
SWITCH,CLUTCH 27010 27010-0729 1
HANDLE-COMP,LH,F.S.BLACK 39058 39058-0007-18R 1
HANDLE-COMP,RH,F.S.BLACK 39058A 39058-0008-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0123 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0205 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0249 1
LEVER-GRIP,CLUTCH 46092 46092-0562 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
SCREW,8X45 92009A 92009-1257 2
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
PLUG 92066 92066-1216 4
BOLT 92154 92154-1827 1
BOLT,FLANGED,6X44 92154A 92154-2331 1
SCREW,3X16 92172 92172-0183 2
