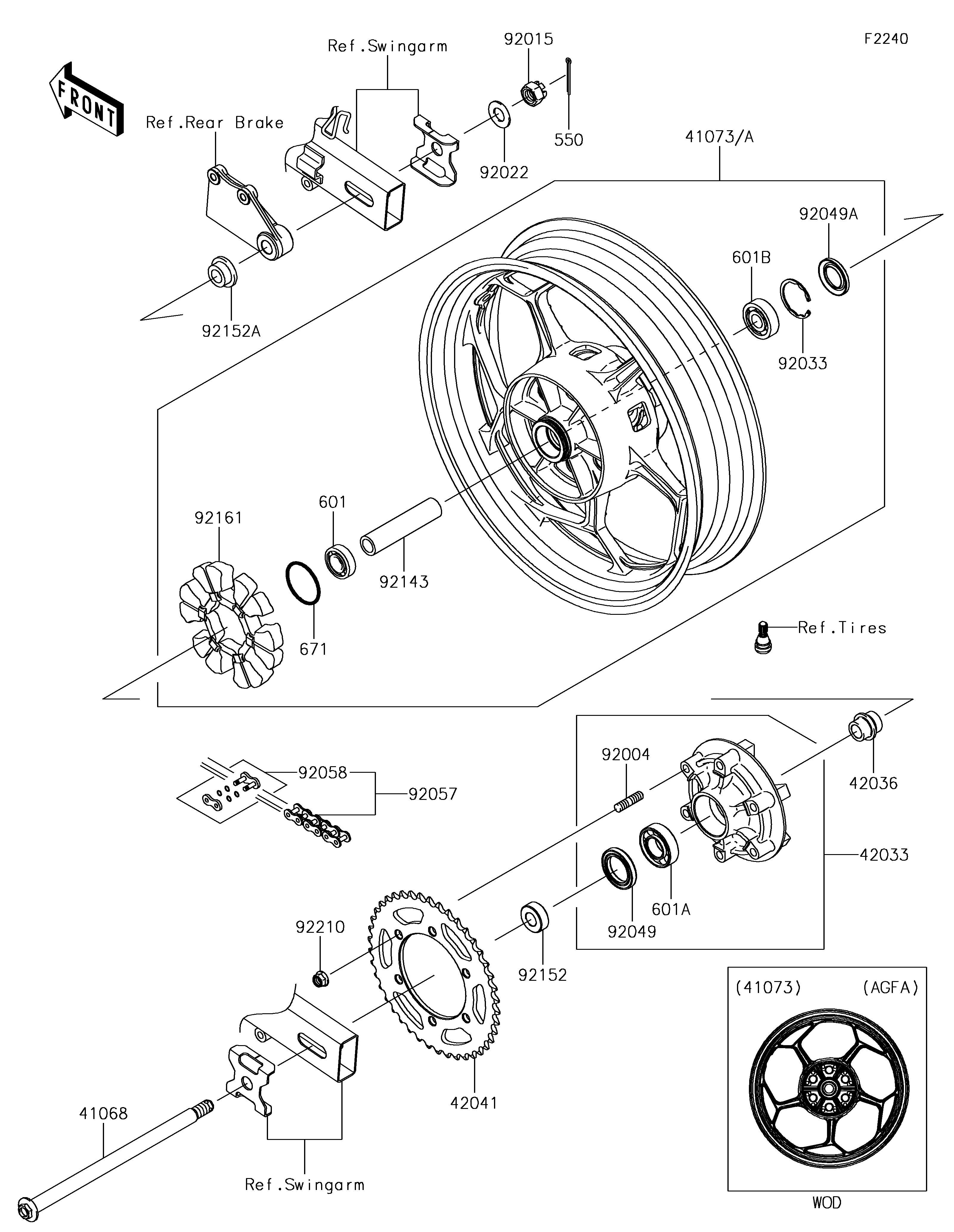

2017 Ninja 300 - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
41068
41073
42033
42036
42041
550
601
601A
601B
671
92004
92015
92022
92033
92049
92049A
92057
92058
92143
92152
92152A
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,RR 41068 41068-1223 1
WHEEL-ASSY,RR,G.BLACK 41073 41073-0652-QT 1
COUPLING-ASSY,RR HUB 42033 42033-0574 1
SLEEVE,RR HUB,L=30 42036 42036-1055 1
SPROCKET-HUB,42T 42041 42041-0118 1
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,#6203UUC3 601 601B6203UU 1
BEARING-BALL,#6205G 601A 601B6205G 1
BEARING-BALL,6303LLUC3/2ASU68 601B 601B6303UU 1
O RING,50MM 671 671B2550 1
STUD,10X19 92004 92004-0048 6
NUT,CASTLE,16MM 92015 92015-1947 1
WASHER,17.5X34X2.0 92022 92022-1916 1
RING-SNAP,47MM 92033 92033-1042 1
SEAL-OIL,35X52X7 92049 92049-0730 1
SEAL-OIL,BJN28475 92049A 92049-1056 1
CHAIN,DRIVE,EK520SR-O2X106L 92057 92057-0019 1
JOINT-CHAIN,DRIVE 92058 92058-1102 1
COLLAR,RR HUB,L=111 92143 92143-1416 1
COLLAR,17X35X13 92152 92152-0843 1
COLLAR,17X28(38)X15 92152A 92152-0844 1
DAMPER,RR HUB SHOCK 92161 92161-0700 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
