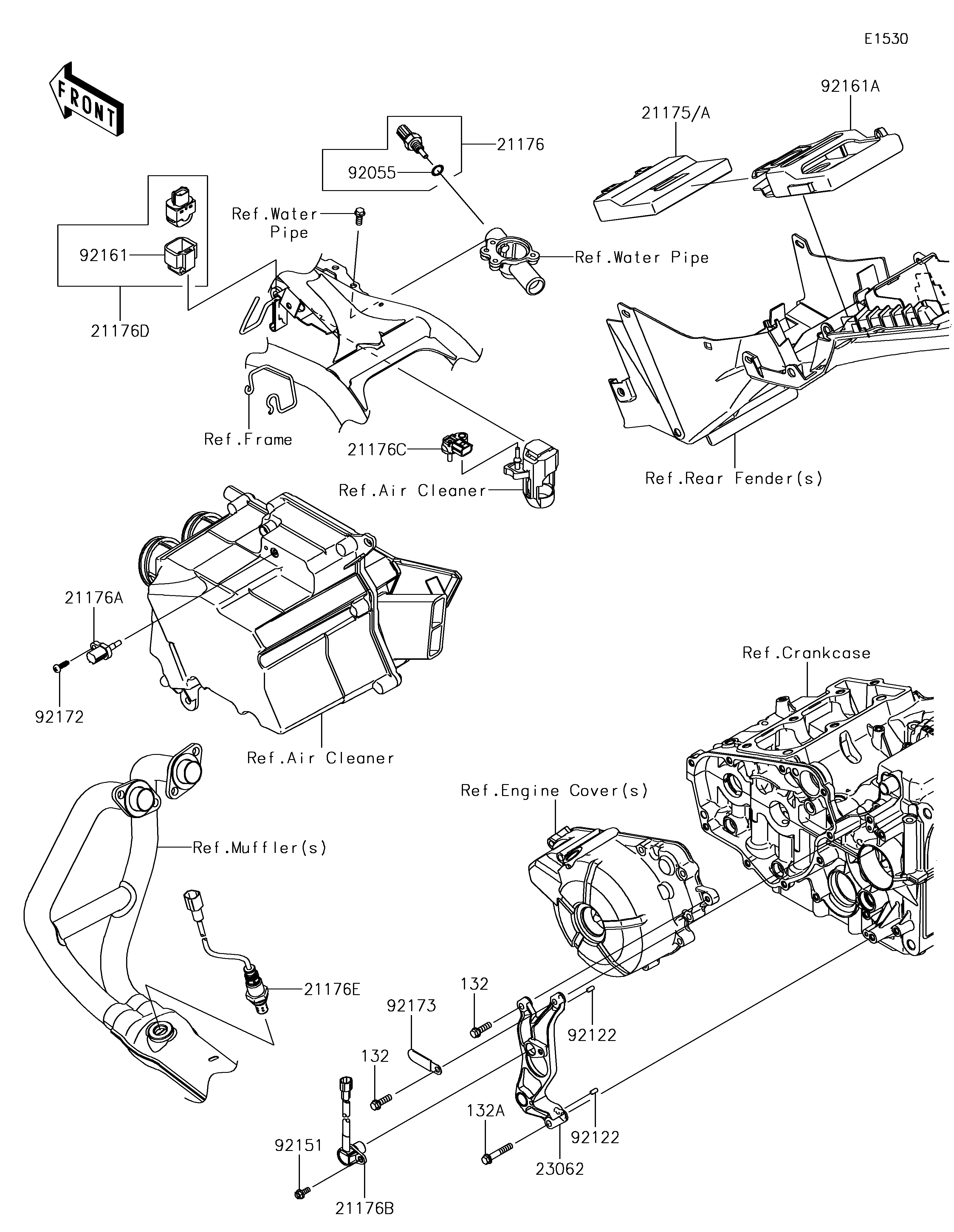

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132
132A
21175A
21176
21176A
21176B
21176C
21176D
21176E
23062
92055
92122
92122
92151
92161
92161A
92172
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BA0620 | 2 | ||
| BOLT-FLANGED-SMALL,6X35 | 132A | 132BA0635 | 1 | ||
| CONTROL UNIT-ELECTRONIC | 21175A | 21175-0946 | 1 | CA | |
| SENSOR,WATER TEMP | 21176 | 21176-0009 | 1 | ||
| SENSOR,AIR TEMPERATURE | 21176A | 21176-0048 | 1 | ||
| SENSOR,SPEED | 21176B | 21176-0065 | 1 | ||
| SENSOR,PRESSURE | 21176C | 21176-0111 | 1 | ||
| SENSOR,VEHICLE-DOWN | 21176D | 21176-0704 | 1 | ||
| SENSOR,OXYGEN | 21176E | 21176-0720 | 1 | ||
| BRACKET-COMP | 23062 | 23062-0741 | 1 | ||
| RING-O,9.5X1.9 | 92055 | 92055-0016 | 1 | ||
| ROLLER,4X8 | 92122 | 92122-0557 | 2 | ||
| BOLT,FLANGED,5X12 | 92151 | 92151-1305 | 1 | ||
| DAMPER | 92161 | 92161-0951 | 1 | ||
| DAMPER,ECU | 92161A | 92161-1426 | 1 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0790 | 1 | ||
| CLAMP,L=45 | 92173 | 92173-0194 | 1 |
