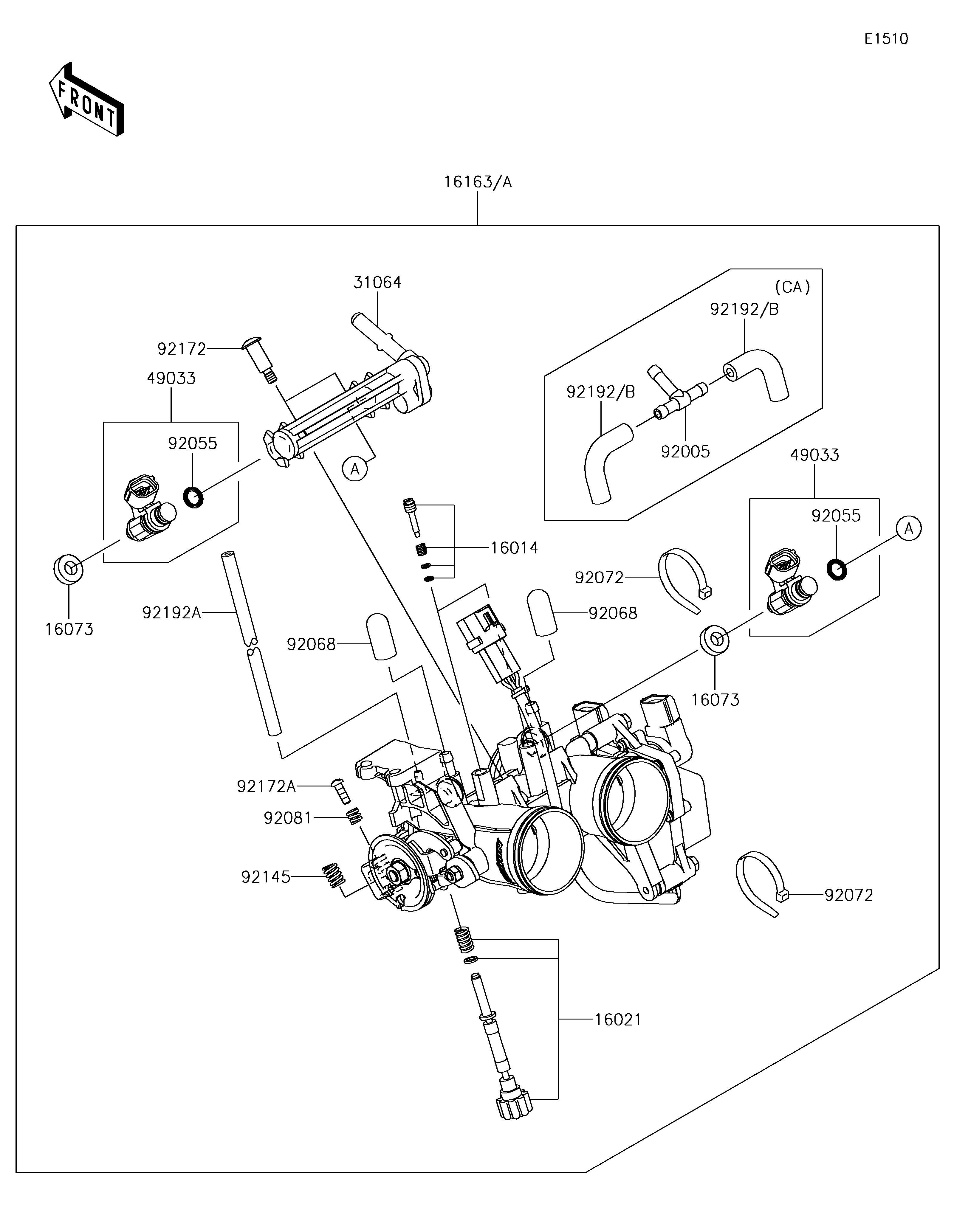

Parts Diagrams |
16014
16021
16073
16073
16163A
31064
49033
49033
92005
92055
92055
92072
92072
92081
92145
92172
92172A
92192A
92192B
92192B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PILOT AIR | 16014 | 16014-0002 | 2 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-0027 | 1 | ||
| INSULATOR | 16073 | 16073-0129 | 2 | ||
| THROTTLE-ASSY | 16163A | 16163-0750 | 1 | CA | |
| PIPE-COMP,FUEL | 31064 | 31064-0164 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0558 | 2 | ||
| FITTING,3WAY | 92005 | 92005-0730 | 1 | CA | |
| RING-O,INJECTION NOZZLE | 92055 | 92055-0124 | 2 | ||
| BAND,SUB-HARNESS | 92072 | 92072-0012 | 2 | ||
| SPRING | 92081 | 92081-1620 | 1 | ||
| SPRING | 92145 | 92145-0656 | 1 | ||
| SCREW,PIPE INJECTION | 92172 | 92172-0064 | 2 | ||
| SCREW | 92172A | 92172-0129 | 1 | ||
| TUBE,3X7X200 | 92192A | 92192-1170 | 1 | ||
| TUBE | 92192B | 92192-1918 | 2 | CA |
