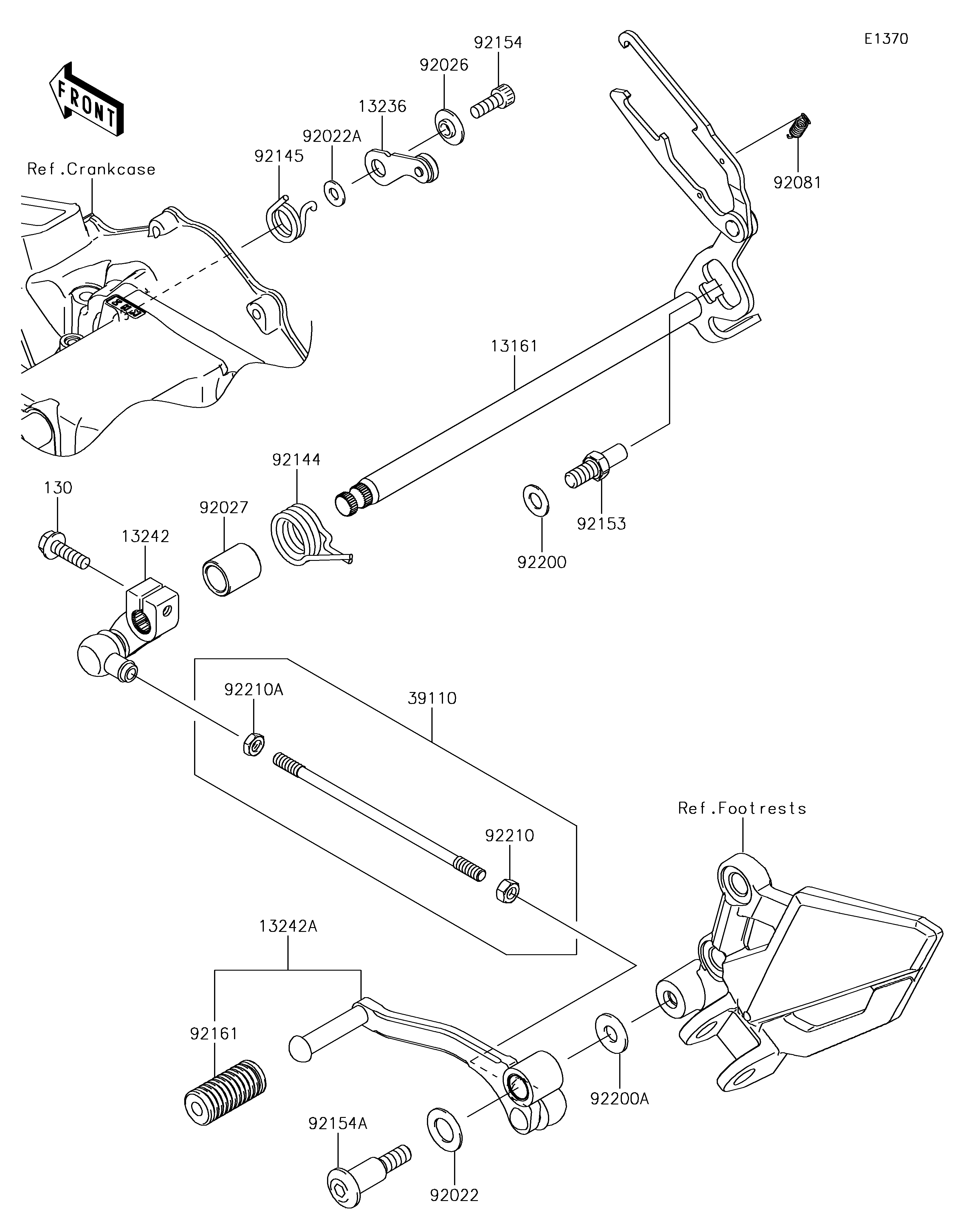

2017 Ninja 300 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
13161
13236
13242
13242A
39110
92022
92022A
92026
92027
92081
92144
92145
92153
92154
92154A
92161
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130CB0620 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0560 1
LEVER-COMP 13236 13236-0775 1
LEVER-ASSY-CHANGE 13242 13242-0087 1
LEVER-ASSY-CHANGE,PEDAL 13242A 13242-0088 1
ROD-ASSY-TIE 39110 39110-0307 1
WASHER,12.5X22X1.2 92022 92022-072 1
WASHER,6X12.8X1.2 92022A 92022-1827 1
SPACER 92026 92026-1217 1
COLLAR,13X18.3X21.5 92027 92027-1440 1
SPRING,CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE PEDAL RETURN 92144 92144-1074 1
SPRING 92145 92145-0895 1
BOLT,8X15.5 92153 92153-1986 1
BOLT,SOCKET,6X16 92154 92154-0235 1
BOLT 92154A 92154-1034 1
DAMPER,CHANGE PEDAL 92161 92161-1466 1
WASHER,8.2X16X1 92200 92200-0434 1
WASHER,8.5X20X1.6 92200A 92200-0490 1
NUT,6MM 92210 92210-0778 1
NUT,6MM 92210A 92210-0779 1
