Parts Diagrams |

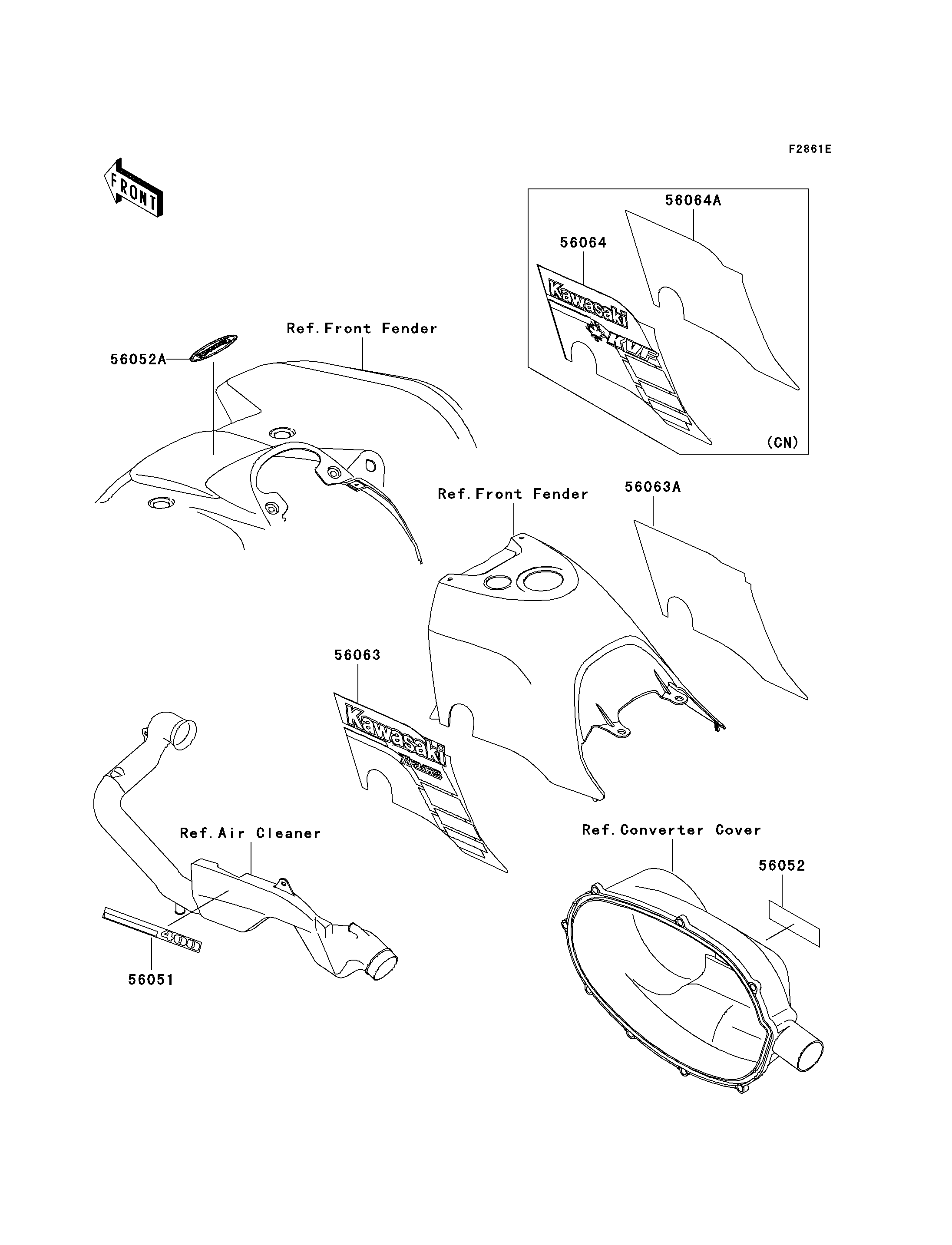

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,AIR CLEANER COVER | 56051 | 56051-1841 | 1 | ||
| MARK,BELT CONVERTER COVER | 56052 | 56052-1053 | 1 | ||
| MARK,KAWASAKI | 56052A | 56052-1259 | 1 | ||
| PATTERN,FUEL TANK COVER,LH | 56063 | 56063-1892 | 1 | US | |
| PATTERN,FUEL TANK COVER,RH | 56063A | 56063-1893 | 1 | US | |
| PATTERN,FUEL TANK COVER,LH | 56064 | 56064-1136 | 1 | CN | |
| PATTERN,FUEL TANK COVER,RH | 56064A | 56064-1137 | 1 | CN |
| MARK,AIR CLEANER COVER | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,BELT CONVERTER COVER | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK COVER,LH | |
| REF # | 56063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,FUEL TANK COVER,RH | |
| REF # | 56063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| PATTERN,FUEL TANK COVER,LH | |
| REF # | 56064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK COVER,RH | |
| REF # | 56064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
