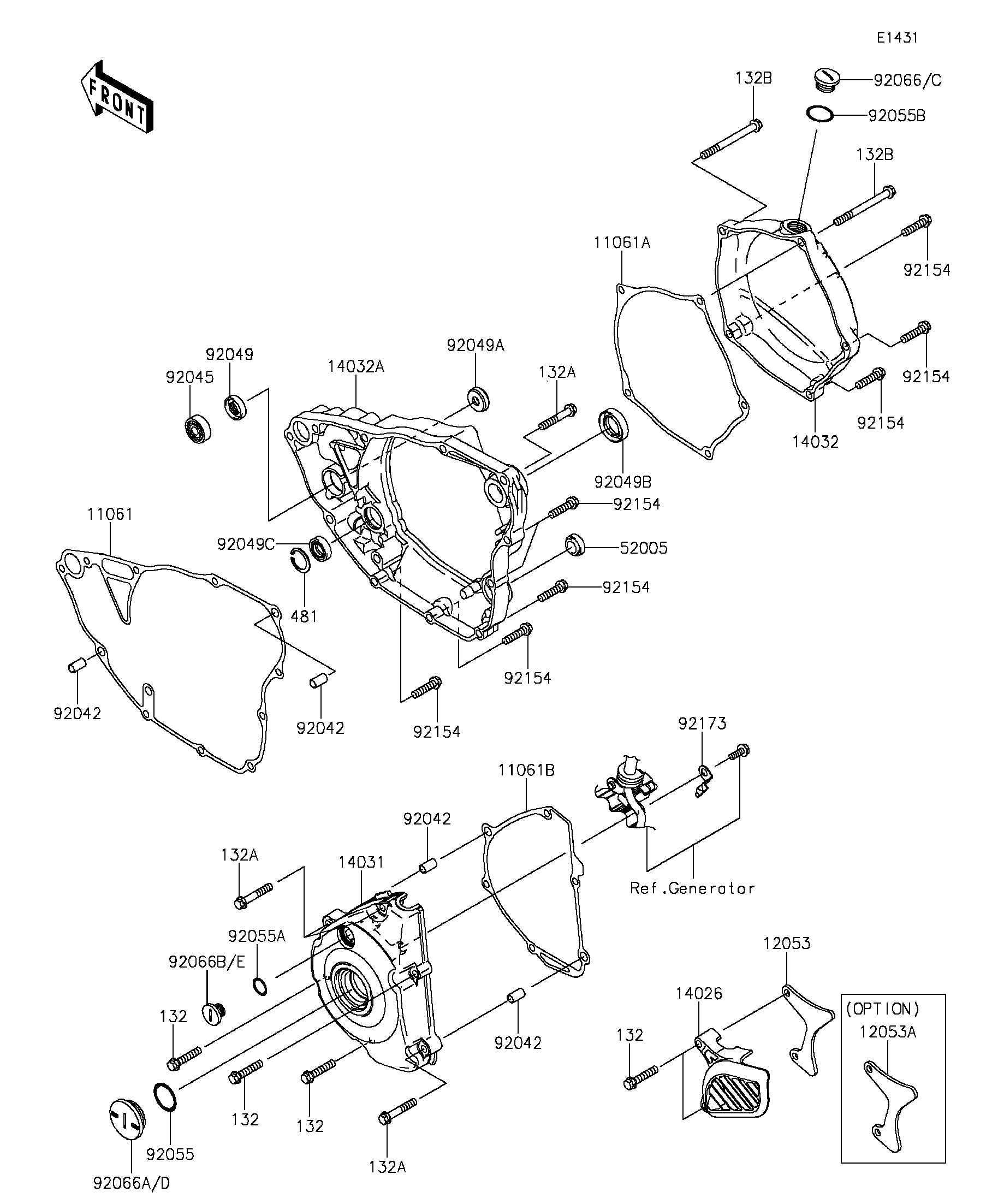

2016 KX™250F - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
12053
12053A
132
132
132
132
132A
132A
132A
132B
132B
14026
14031
14032
14032A
481
52005
92042
92042
92042
92042
92045
92049
92049A
92049B
92049C
92055
92055A
92055B
92066C
92066D
92066E
92154
92154
92154
92154
92154
92154
92154
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,INNER 11061 11061-0361 1
GASKET,OUTER 11061A 11061-0362 1
GASKET,GENERATOR 11061B 11061-0778 1
GUIDE-CHAIN,13T 12053 12053-0129 1
GUIDE-CHAIN,12T 12053A 12053-0130 1 (OPTION)
BOLT-FLANGED-SMALL,6X30 132 132BA0630 5
BOLT-FLANGED-SMALL,6X35 132A 132BA0635 4
BOLT-FLANGED-SMALL,6X65 132B 132BA0665 2
COVER-CHAIN 14026 14026-0090 1
COVER-GENERATOR 14031 14031-0569 1
COVER-CLUTCH,OUTER 14032 14032-0567 1
COVER-CLUTCH,INNER 14032A 14032-0599 1
CIRCLIP-TYPE-C,22MM 481 481J2200 1
GAUGE,OIL LEVEL 52005 52005-1009 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
BEARING-BALL,#628 92045 92045-1123 1
SEAL-OIL,SD 8 22 5 ZS 92049 92049-0060 1
SEAL-OIL 92049A 92049-0061 1
SEAL-OIL,SB18307 92049B 92049-013 1
SEAL-OIL,TVCX13X22X5.5 92049C 92049-0762 1
RING-O,27.7X2.4 92055 92055-091 1
RING-O,13.0X1.9 92055A 92055-1011 1
RING-O,20X2 92055B 92055-1146 1
PLUG,18X9 92066C 92066-0833 1
PLUG,30X8 92066D 92066-0834 1
PLUG,12X9.1 92066E 92066-0835 1
BOLT,FLANGED,6X25 92154 92154-0520 8
CLAMP,HARNESS 92173 92173-0058 1
