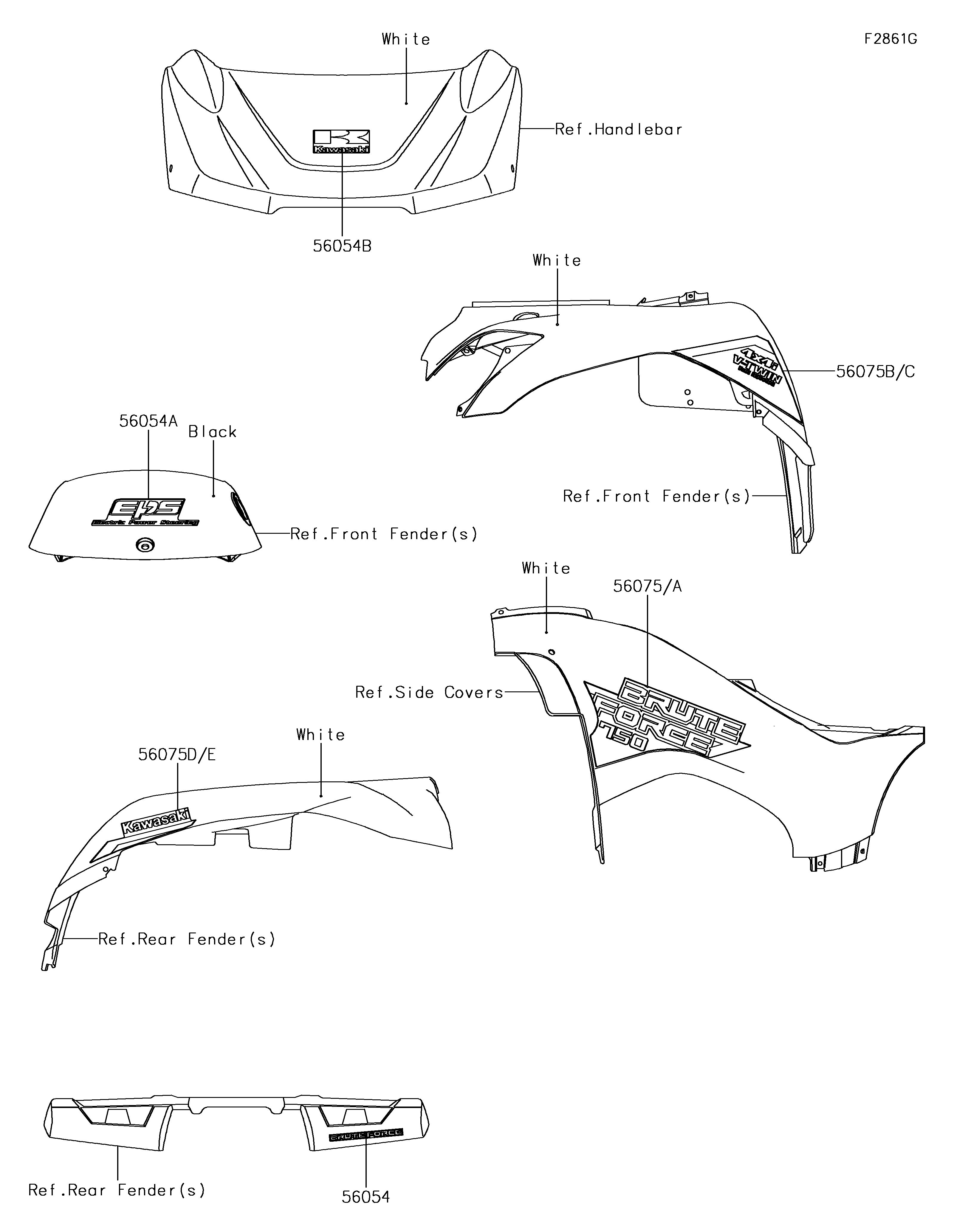

2019 BRUTE FORCE® 750 4x4i EPS - Decals(White)(GKF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,RR FENDER,BRUTE FORCE | 56054 | 56054-0755 | 1 | ||
| MARK,TOP COVER,EPS | 56054A | 56054-0758 | 1 | ||
| MARK,HANDLE COVER,K | 56054B | 56054-2254 | 1 | ||
| PATTERN,SIDE COVER,LH | 56075 | 56075-4357 | 1 | ||
| PATTERN,SIDE COVER,RH | 56075A | 56075-4358 | 1 | ||
| PATTERN,FR FENDER,LH | 56075B | 56075-4359 | 1 | ||
| PATTERN,FR FENDER,RH | 56075C | 56075-4360 | 1 | ||
| PATTERN,RR FENDER,LH | 56075D | 56075-4361 | 1 | ||
| PATTERN,RR FENDER,RH | 56075E | 56075-4362 | 1 |
| MARK,RR FENDER,BRUTE FORCE | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TOP COVER,EPS | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HANDLE COVER,K | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56075D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56075E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
