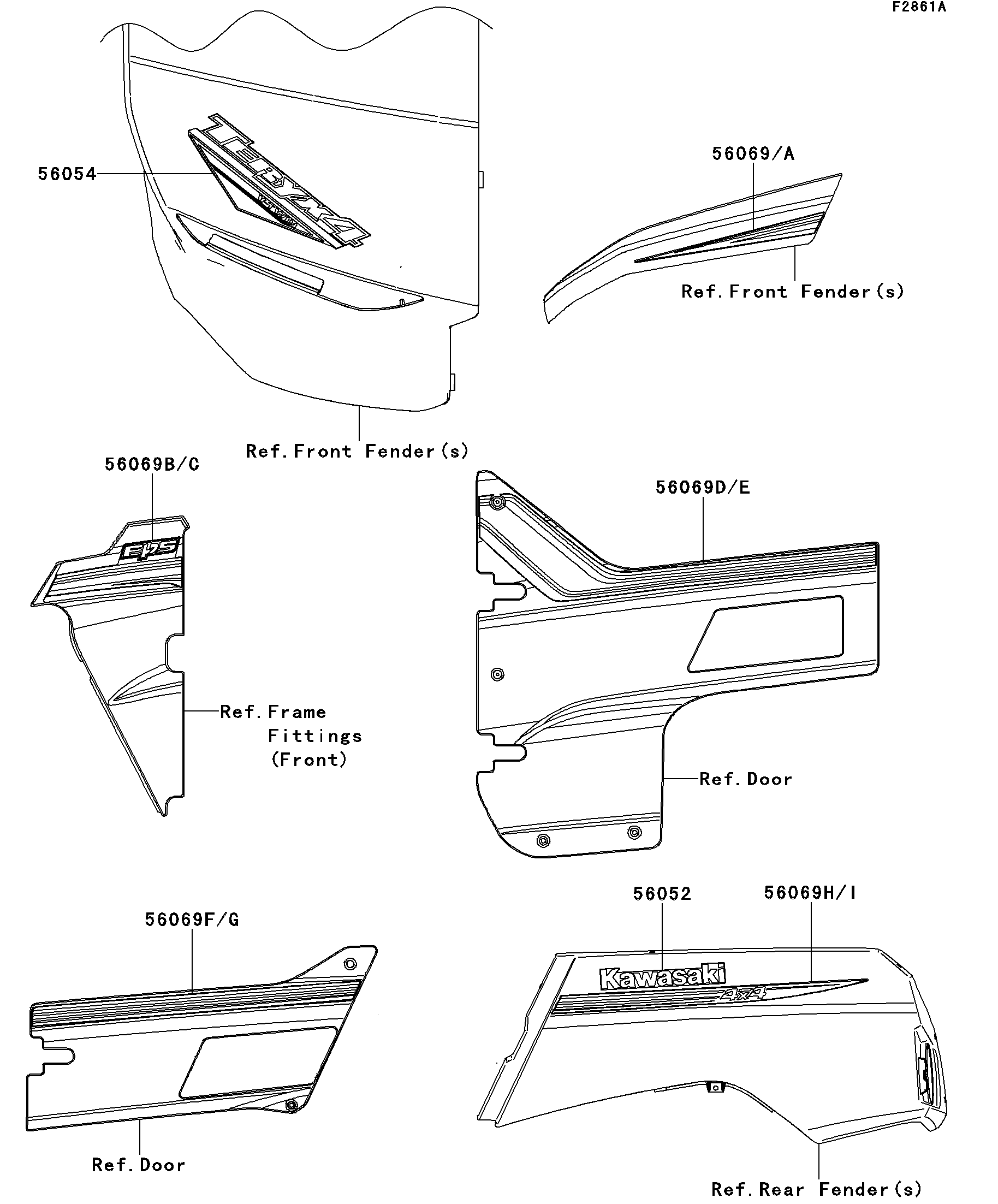

2013 TERYX4™ 750 4x4 EPS - Decals(White)(BDF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-0455 | 2 | ||
| MARK,FR FENDER,TERYX4 | 56054 | 56054-1006 | 1 | ||
| PATTERN,OVER FENDER,LH | 56069 | 56069-2029 | 1 | ||
| PATTERN,OVER FENDER,RH | 56069A | 56069-2030 | 1 | ||
| PATTERN,SIDE COVER,LH | 56069B | 56069-2031 | 1 | ||
| PATTERN,SIDE COVER,RH | 56069C | 56069-2032 | 1 | ||
| PATTERN,DOOR COVER,FR,LH | 56069D | 56069-2033 | 1 | ||
| PATTERN,DOOR COVER,FR,RH | 56069E | 56069-2034 | 1 | ||
| PATTERN,DOOR COVER,RR,LH | 56069F | 56069-2035 | 1 | ||
| PATTERN,DOOR COVER,RR,RH | 56069G | 56069-2036 | 1 | ||
| PATTERN,RR FENDER,LH | 56069H | 56069-2037 | 1 | ||
| PATTERN,RR FENDER,RH | 56069I | 56069-2038 | 1 |
| MARK,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,TERYX4 | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,OVER FENDER,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,OVER FENDER,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,FR,LH | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,FR,RH | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RR,LH | |
| REF # | 56069F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RR,RH | |
| REF # | 56069G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56069H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56069I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
