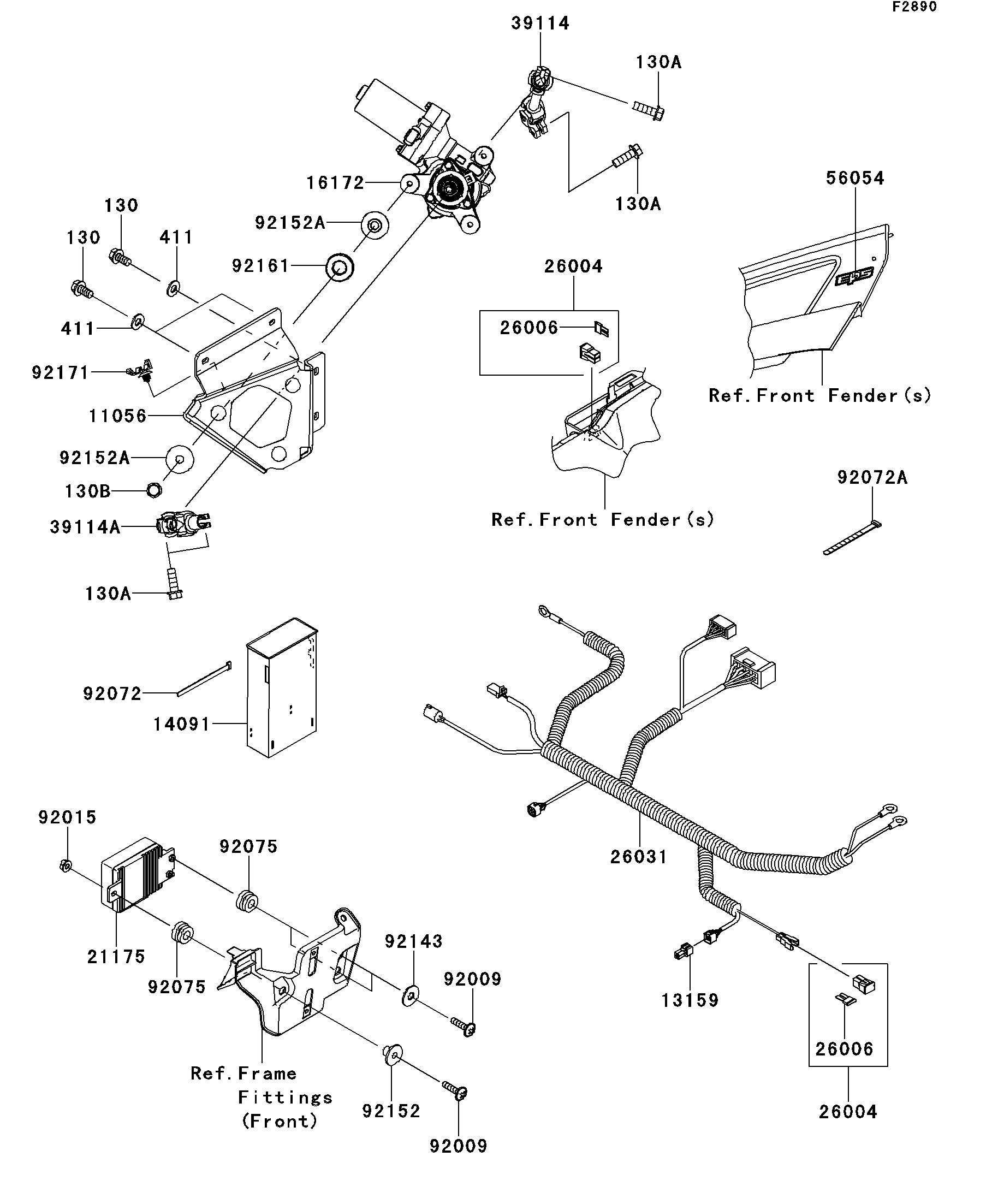

2013 TERYX4™ 750 4x4 (Canadian) - Optional Parts(EPS)

DOWNLOAD PDF
SELECT A NEW PART
11056
130
130
130A
130A
130A
130B
13159
14091
16172
21175
26004
26004
26006
26006
26031
39114
39114A
411
411
56054
92009
92009
92015
92072
92072A
92075
92075
92143
92152
92152A
92152A
92161
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,EPS ACTUATOR 11056 11056-1416 1
BOLT-FLANGED,8X16 130 130BA0816 4
BOLT-FLANGED,8X25 130A 130BA0825 4
BOLT-FLANGED,8X45 130B 130CA0845 3
CONNECTOR 13159 13159-0014 1
COVER,ECU 14091 14091-7560 1
ACTUATOR,EPS 16172 16172-0557 1
CONTROL UNIT-ELECTRONIC 21175 21175-0809 1
FUSE-ASSY,40A 26004 26004-1093 2
FUSE,SLOW BLOW,BT,40A,GREEN 26006 26006-0014 2
HARNESS 26031 26031-1180 1
SHAFT-COMP-STRG 39114 39114-0306 1
SHAFT-COMP-STRG 39114A 39114-0308 1
WASHER-PLAIN 411 411AA0800 4
MARK,FR FENDER,EPS 56054 56054-1201 2
SCREW,6X25 92009 92009-1465 3
NUT,FLANGED,6MM 92015 92015-1367 1
BAND,L=123 92072 92072-030 1
BAND,L=188 92072A 92072-1239 5
DAMPER,RUBBER 92075 92075-1123 3
COLLAR,L=6.5 92143 92143-1025 2
COLLAR,6.5X10X13.3 92152 92152-0957 1
COLLAR 92152A 92152-7513 6
DAMPER,ACTUATOR 92161 92161-7517 3
CLAMP 92171 92171-0453 1
