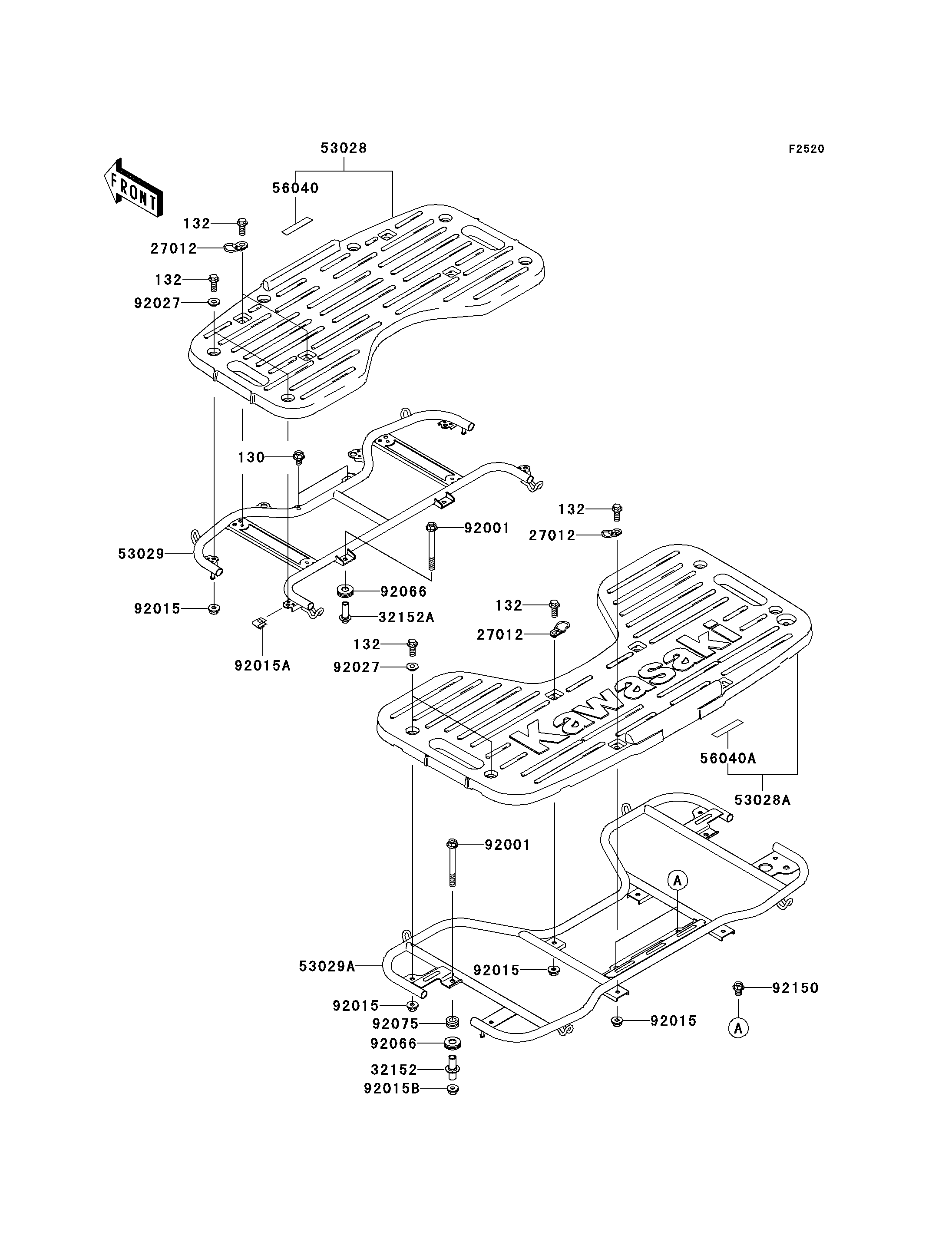

2001 Prairie 300 4X4 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
132
132
132
27012
27012
27012
32152
32152A
53028
53028A
53029
53029A
56040
56040A
92001
92001
92015
92015
92015
92015
92015A
92015B
92027
92027
92066
92066
92075
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130J0812 2
BOLT-FLANGED-SMALL,8X20 132 132J0820 16
HOOK 27012 27012-1577 8
PIPE,REAR CARRIER 32152 32152-1066 2
PIPE,FRONT CARRIER 32152A 32152-1067 2
CARRIER-ASSY,FR,F.BLACK 53028 53028-1093-6Z 1
CARRIER-ASSY,RR,F.BLACK 53028A 53028-1094-6Z 1
CARRIER,FR 53029 53029-1197 1
CARRIER,RR 53029A 53029-1198 1
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1322 1
BOLT,FLANGED,8X75,BLACK 92001 92001-1642 4
NUT,FLANGED,8MM,BLACK 92015 92015-1183 10
NUT,CLIP,8MM 92015A 92015-1691 2
NUT,FLANGED,LOCK,8MM 92015B 92015-1696 2
COLLAR 92027 92027-1908 8
PLUG 92066 92066-1438 4
DAMPER 92075 92075-1086 2
BOLT,8X12 92150 92150-1780 2
