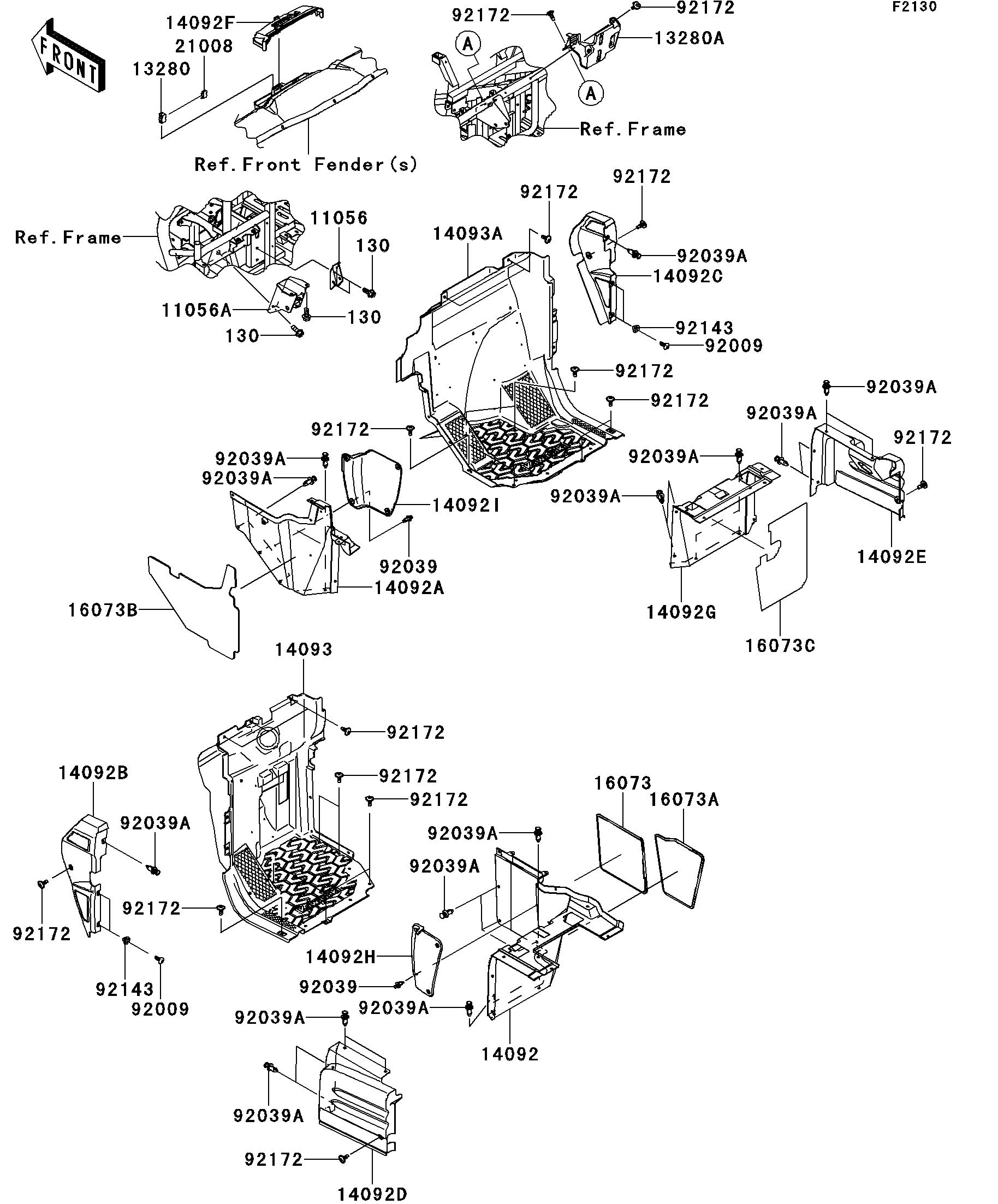

2013 TERYX4™ 750 4x4 (Canadian) - Frame Fittings(Front)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
130
130
130
13280
13280A
14092
14092A
14092B
14092C
14092D
14092E
14092F
14092G
14092H
14092I
14093
14093A
16073
16073A
16073B
16073C
21008
92009
92009
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92143
92143
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE PEDAL 11056 11056-0734 1
BRACKET,BRAKE PEDAL 11056A 11056-1431 1
BOLT-FLANGED,8X18 130 130BA0818 5
HOLDER,BREAKER 13280 13280-0082 1
HOLDER 13280A 13280-0719 1
COVER,FR SEAT,LH 14092 14092-0712 1
COVER,FR SEAT,RH,CNT 14092A 14092-0713 1
COVER,SIDE GUARD,LH 14092B 14092-0716 1
COVER,SIDE GUARD,RH 14092C 14092-0717 1
COVER,SEAT SIDE,LH 14092D 14092-0720 1
COVER,SEAT SIDE,RH 14092E 14092-0721 1
COVER,FUSE BOX 14092F 14092-0724 1
COVER,FR SEAT,RH 14092G 14092-0757 1
COVER,PAD,LH 14092H 14092-0909 1
COVER,PAD,RH 14092I 14092-0910 1
COVER,FR FLOOR,LH 14093 14093-5137 1
COVER,FR FLOOR,RH 14093A 14093-5138 1
INSULATOR 16073 16073-0715 1
INSULATOR 16073A 16073-0716 1
INSULATOR 16073B 16073-0738 1
INSULATOR 16073C 16073-0743 1
BREAKER 21008 21008-0556 1
SCREW,TAPPING,6X16 92009 92009-1166 4
RIVET 92039 92039-0051 8
RIVET 92039A 92039-1229 24
COLLAR 92143 92143-1057 4
SCREW,6X16 92172 92172-0711 23
