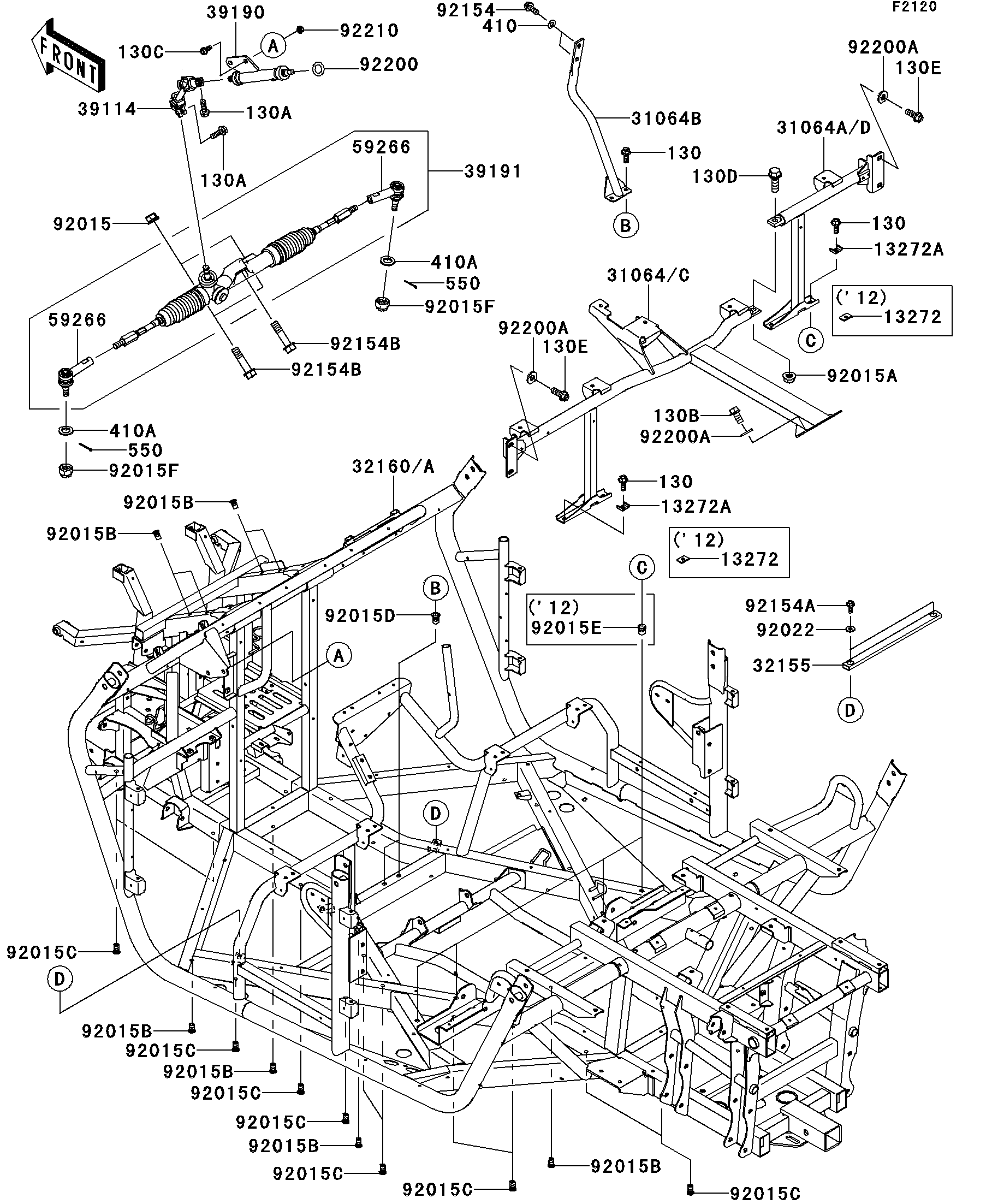

2013 TERYX4™ 750 4x4 (Canadian) - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
130B
130C
130D
130E
130E
13272A
13272A
31064B
31064C
31064D
32155
32160A
39114
39190
39191
410
410A
410A
550
550
59266
59266
92015
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015C
92015C
92015C
92015C
92015C
92015C
92015C
92015D
92015F
92015F
92022
92154
92154A
92154B
92154B
92200
92200A
92200A
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130BA0820 6
BOLT-FLANGED,8X25 130A 130BA0825 2
BOLT-FLANGED,10X20 130B 130BA1020 2
BOLT-FLANGED,10X22 130C 130BA1022 2
BOLT-FLANGED,12X35 130D 130BA1235 1
BOLT-FLANGED,10X25 130E 130BB1025 4
PLATE 13272A 13272-1336 4
PIPE-COMP 31064B 31064-0594 1
PIPE-COMP,SUB FRAME,SEAT,LH 31064C 31064-0612 1
PIPE-COMP,SUB FRAME,SEAT,RH 31064D 31064-0613 1
PIPE,FR FLOOR 32155 32155-1076 2
FRAME-COMP 32160A 32160-0644 1
SHAFT-COMP-STRG 39114 39114-0307 1
SHAFT-ASSY-STEERING 39190 39190-7501 1
GEAR-ASSY-STEERING 39191 39191-0018 1
WASHER-PLAIN-SMALL,8MM 410 410AA0800 2
WASHER-PLAIN-SMALL,14MM 410A 410AA1400 2
PIN-COTTER,3.0X25 550 550AA3025 2
JOINT-BALL 59266 59266-0706 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 2
NUT,12MM 92015A 92015-1706 1
NUT,POP,6MM,L=15 92015B 92015-1791 12
NUT,POP,6MM,L=16.5 92015C 92015-1792 22
NUT,POP,8MM,L=16.5 92015D 92015-1793 2
NUT,CASTLE,14MM 92015F 92015-1841 2
WASHER 92022 92022-2247 4
BOLT,FLANGED,8X20 92154 92154-0100 2
BOLT,FLANGED,6X16 92154A 92154-0887 4
BOLT,FLANGED,12X50 92154B 92154-1008 3
WASHER,15X25X1.6 92200 92200-0460 1
WASHER,10.2X23X2.5 92200A 92200-7506 6
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
